Product Details:
|
| Material: | Carbon Steel/ss304/ss316 | HDG Standard: | EN1461 |
|---|---|---|---|
| Pre Galvanized Standard: | EN10142 | Service: | OEM ODM |
| Color: | Silver | Certification: | ISO9001-2015 |
| Package: | Carton Box | Sample: | Available |
| High Light: | sus316 Spring Channel Nut,10mm Electrical Galvanized Spring Channel Nut,sus316 unistrut spring nut |
||

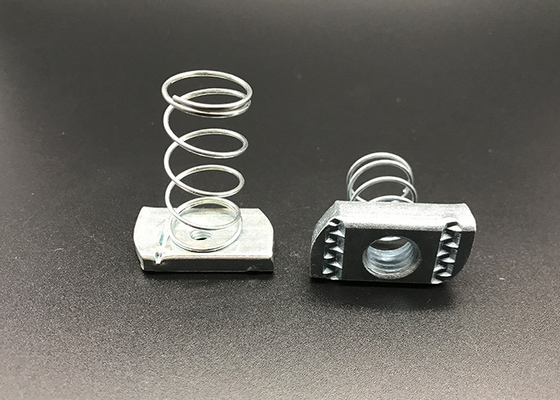

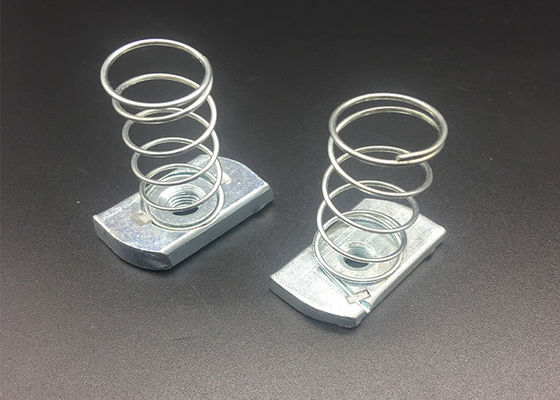

Electrical Galvanized Strut Nut Channel Nut
Products:Spring nut
Features: Koka Strut Channel Nuts are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka strut channel.
Zinc-plated steel nuts are corrosion resistant in wet environments.
316 stainless steel nuts have excellent resistance to chemicals and salt water.
Applications:Strut Channel
|

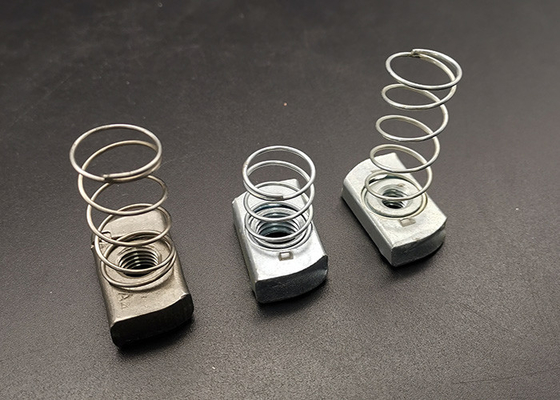

Spring Nut (Short Spring) |
||||
|
Part No. |
Thread Size |
Thickness (mm) |
Spring Length (mm) |
Finish |
|
SN4006 |
1/4”-20 | 6 | 20 | EG/HDG/SS304/SS316 |
|
SN4006-M6 |
M6 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4007 | 5/16”-18 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4007-M8 | M8 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4008 | 3/8”-16 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4008-M10 | M10 | 8/9/10 | 20 | EG/HDG/SS304/SS316 |
| SN4010 | 1/2”-13 | 12 | 20 | EG/HDG/SS304/SS316 |
| SN4010-M12 | M12 | 8/9/12 | 20 | EG/HDG/SS304/SS316 |
| Spring Nut (Regular Spring) | ||||
| Part No. | Thread Size |
Thickness (mm) |
Spring Length (mm) |
Finish |
| SN1006 | 1/4”-20 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1006-M6 | M6 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1007 | 5/16”-18 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1007-M8 | M8 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1008 | 3/8”-16 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1008-M10 | M10 | 8/9/10 | 40 | EG/HDG/SS304/SS316 |
| SN1010 | 1/2”-13 | 12 | 40 | EG/HDG/SS304/SS316 |
| SN1010-M12 | M12 | 8/9/12 | 40 | EG/HDG/SS304/SS316 |
| Spring Nut (Long Spring) | ||||
| Part No. | Thread Size |
Thickness (mm) |
Spring Length (mm) |
Finish |
| SN2006 | 1/4”-20 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2006-M6 | M6 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2007 | 5/16”-18 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2007-M8 | M8 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2008 | 3/8”-16 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2008-M10 | M10 | 8/9/10 | 60 | EG/HDG/SS304/SS316 |
| SN2010 | 1/2”-13 | 12 | 60 | EG/HDG/SS304/SS316 |
| SN2010-M12 | M12 | 8/9/12 | 60 | EG/HDG/SS304/SS316 |

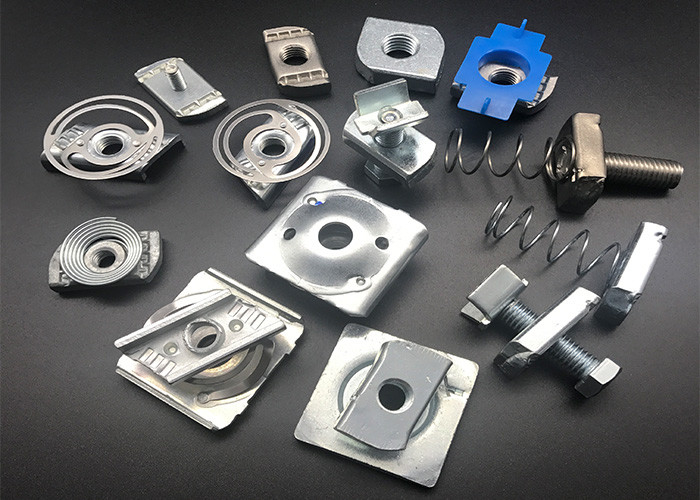

Product Show:
About KOKA:
Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .
KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.
