Product Details:
|
| Material: | Q235,Stainless Steel 304/316 | Surface Treatment: | Zinc Plated /Galvanized/HDG/Copper Plate |
|---|---|---|---|
| Service: | ODM/OEM | Color: | White/Yellow Zinc/Gold Zinc |
| Cushion Material: | TPE | Usage: | HVAC |
| Package: | Carton Box | Certification: | ISO9001-2015 |
| High Light: | OEM Strut Cushion Clamps,ISO9001 Strut Cushion Clamps,Stainless Steel pipe cushion clamps |
||
OEM ODM Stainless Steel Cushion Clamp Pipe Fitting For Conduit
Products:Cushion Clamp
Features:
1) Stud Securely fastened to one clamp half.
2) Nylon insert nut assures a positive lock .
3) withstands effects of most oil ,chemicals,and industrial cleaners,in temperatures from -65°F to +275°F
4) Available size from 1/4" - 6Pipe"
Applications:
Cushion clamps are typically used in pneumatic refrigeration, HVAC, and some low pressure hydraulic lines. cushion clamps also eliminate metal to metal contact between the fluid lines and the support hardware. Standard material for the hardware is a clear trivalent zinc-plated steel, with options for both 304 and 316 grades stainless steel. Additional special options include aluminum and powder coating.
Specifications:
| Part No. | Tubing Size | Pipe Size | Pipe OD (inch) | Finish |
| CC-1/4 | 1/4” | - | 0.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/8 | 3/8” | - | 0.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/2 | 1/2” | - | 0.5 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/4-P | - | 1/4” | 0.54 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-5/8 | 5/8” | - | 0.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/8-P | - | 3/8” | 0.67 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/4 | 3/4” | - | 0.75 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/2-P | - | 1/2” | 0.84 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-7/8 | 7/8” | - | 0.87 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 | 1” | - | 1.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/4-P | - | 3/4” | 1.05 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/8 | 1-1/8” | - | 1.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/4 | 1-1/4” | - | 1.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1-P | - | 1” | 1.31 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 3/8 | 1-3/8” | - | 1.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/2 | 1-1/2” | - | 1.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 5/8 | 1-5/8” | - | 1.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/4-P | - | 1-1/4” | 1.66 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 3/4 | 1-3/4” | - | 1.75 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 7/8 | 1-7/8” | 1-1/2” | 1.90 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 | 2” | - | 2.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/8 | 2-1/8” | - | 2.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/4 | 2-1/4” | - | 2.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 3/8 | 2-3/8” | 2” | 2.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/2 | 2-1/2” | - | 2.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 5/8 | 2-5/8” | - | 2.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 7/8 | 2-7/8” | 2-1/2” | 2.87 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 | 3” | - | 3.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 1/8 | 3-1/8” | - | 3.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 1/2 | 3-1/2” | 3” | 3.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 5/8 | 3-5/8” | - | 3.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-4 1/8 | 4-1/8” | - | 4.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-4 1/2 | 4-1/2” | 4” | 4.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-6 | 6” | - | 6.00 | GOLD ZINC/EG/HDG/SS304/SS316 |

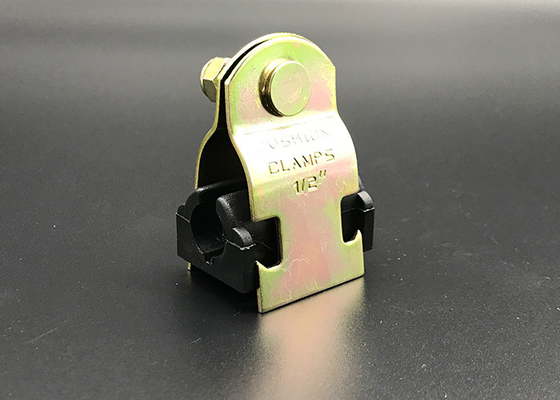

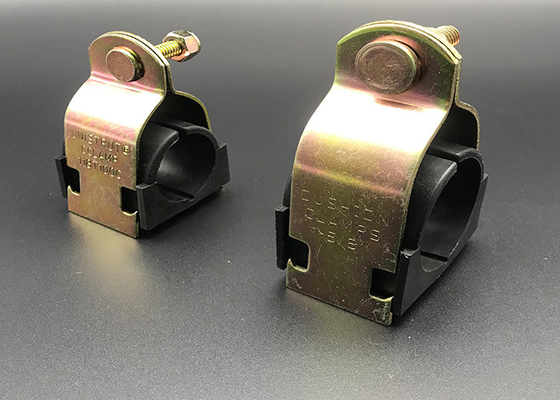

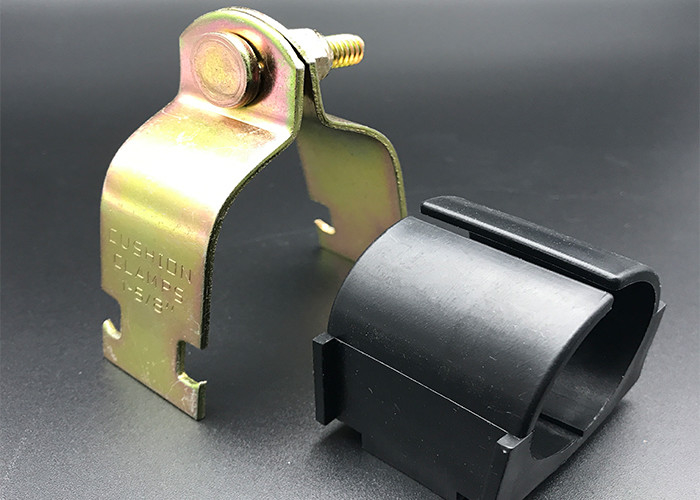

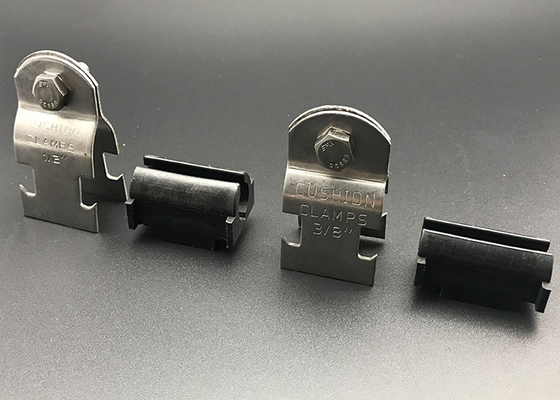

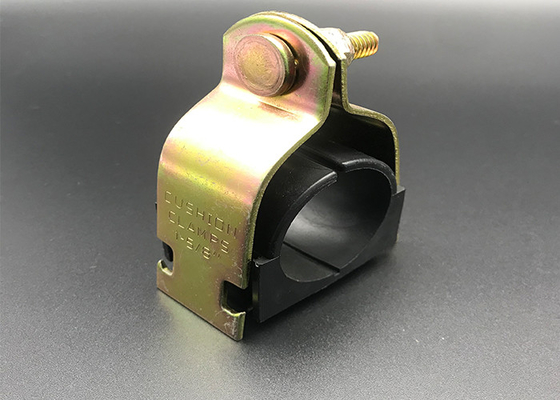

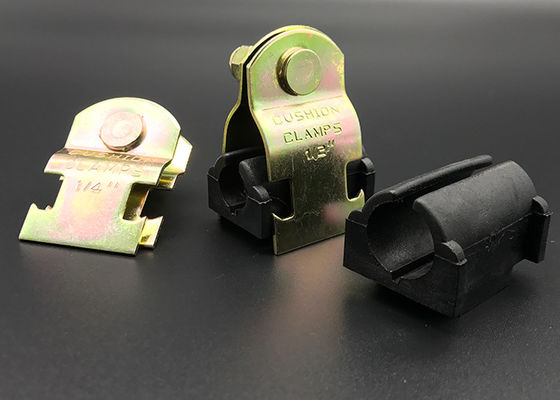

Product Show:
Package:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
