Product Details:
|
| Material: | Steel/Q235B | Service: | OEM ODM |
|---|---|---|---|
| Maximum Load-bearing Capacity: | 216kg/meter | Length: | 2400mm,3000mm,6000mm |
| Type: | Ventilated Or Perforated Trough | Certification: | ISO9001-2015 |
| Sample: | Available | Package: | Pallet |
| Highlight: | SS304 Perforated Cable Tray,50mmx50mm Perforated Cable Tray,SS304 powder coated tray |
||

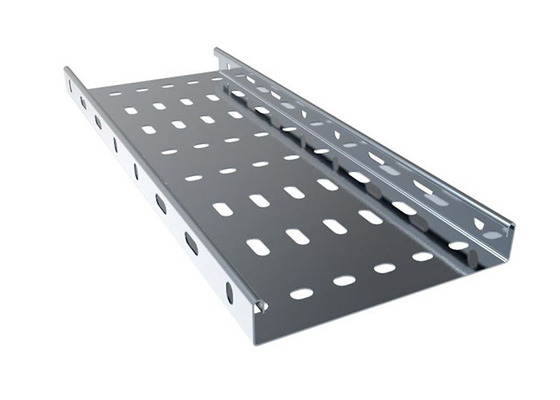

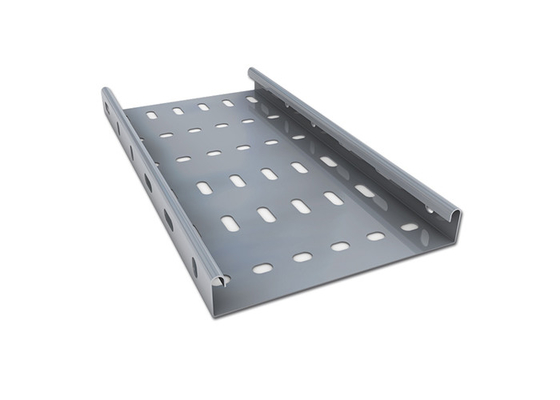

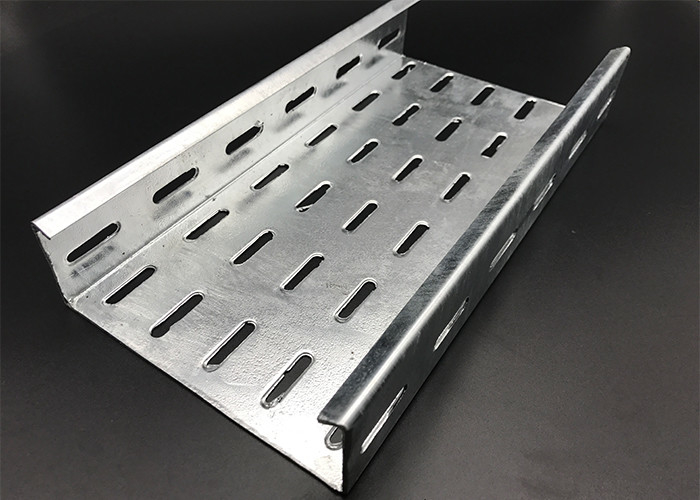

SS304 SS316 Stainless Steel Powder Coated Perforated Cable Tray
Products:Cable Tray
Features:Koka Cable Tray are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed,they are case hardened,assuring positive biting action into the inturned edge of the Koka cable tray.
Applications:Cable Support
Parameter List:
|
Light Duty Cable Tray |
|||||
|
Part No. |
Width(mm) |
Height(mm) |
Thickness(mm) |
Length(mm) | Finish |
|
CT-L-50 |
50 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
|
CT-L-100 |
100 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-150 | 150 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-200 | 200 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-250 | 250 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-300 | 300 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-400 | 400 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-500 | 500 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-600 | 600 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-700 | 700 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| Medium Duty Cable Tray | |||||
| Part No. | Width(mm) |
Height(mm) |
Thickness(mm) |
Length(mm) | Finish |
| CT-M-50 | 50 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-100 | 100 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-150 | 150 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-200 | 200 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-250 | 250 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-300 | 300 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-400 | 400 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-500 | 500 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-600 | 600 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-700 | 700 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| Heavy Duty Cable Tray | |||||
| Part No. | Width(mm) |
Height(mm) |
Thickness(mm) |
Finish | Finish |
| CT-H-50 | 50 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-100 | 100 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-150 | 150 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-200 | 200 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-250 | 250 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-300 | 300 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-400 | 400 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-500 | 500 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-600 | 600 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-700 | 700 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |

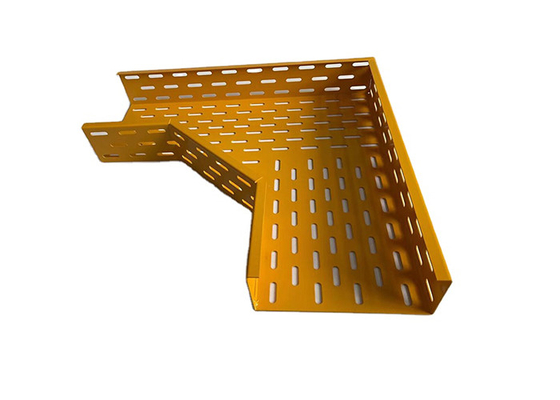

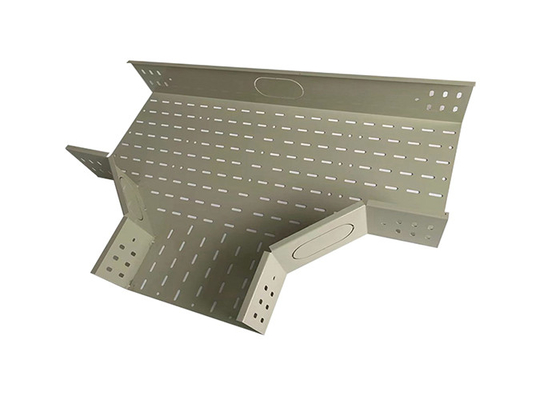

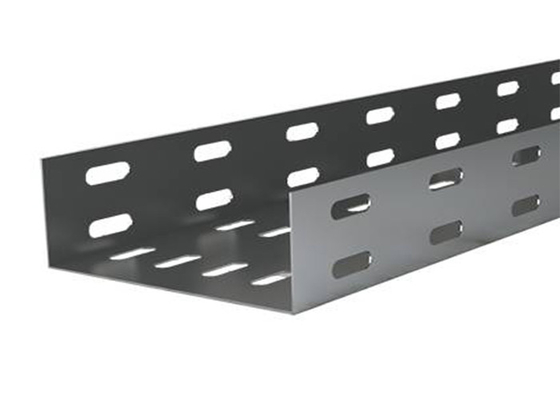

Product Show:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
