Product Details:
|
| Material: | Q235,Stainless Steel 304/316 | Surface Finished: | Pre-galvanized,Hot Dip Galvanized,Powder Coating |
|---|---|---|---|
| Specification: | 41*41 41*21 41*62 41*82 | Thickness: | 1.5-3.0MM，any Thickness Available |
| Service: | OEM ODM | Sample: | Free Available |
| Package: | Carton Box+Pallet | Certification: | ISO9001-2015 |
| Highlight: | Ss316 Strut C Channel,41x82 Strut C Channel,Ss316 Back To Back Strut |
||

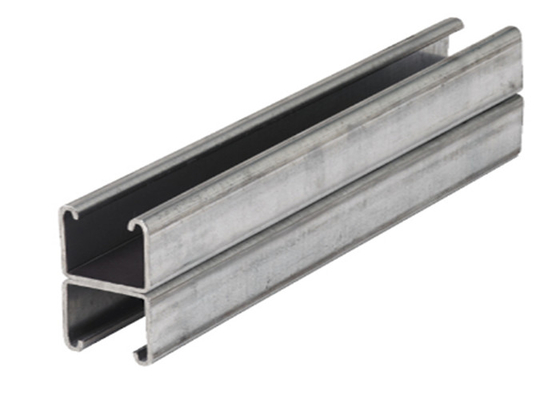

Ss304 Ss316 Back To Back Strut Unistrut C Channel
Products : Back To Back Strut Channel
Pre-galvanized(GI)strut channel , hot dip galvanized(HDG) strut channel , stainless steel 304 (ss304) strut channel ,stainless steel 316 (ss316)strut channel , standard length : 3m/5.8m/6m,all length available,slotted strut channel and solid strut channel also available.
KOKA strut channel have four kinds of surface treatment:
FINISHED: PG – Pre galvanized as per BS EN 10142 & BS 4678
HDG – Hot dip galvanized as per BS EN 1461-99(BS729) and CEI 7-6
SS – Stainless steel GRADE 304L/316L complying with BS EN 10088-2/2001
PC – Powder coated in RAL color (JG/T3045)
Anti-corrosion and fire retardant:different finish according to your request.
Adjustable to different environment:accessories like Risers,T-junction,Crosses can be combined with cable trays,pipe support,solar mounting to different environment.
KOKA strut channel of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organizations.
Features:
1) easy & flexible in installation, low cost
2) samples & catalogs are free
3) all size are available
4) OEM/ODM
Applications:Koka strut channel is commonly used for trapeze supports, cable tray supports, seismic bracing, ceiling grids, pipe support, conduit, duct ,racks,solar mounting,HAVC system and other general framing.
Specifications:
Koka strut is available in Pre-Galvanized (PG), Hot-Dip Galvanized (HDG), Powed Coating(PC), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS or ST) and Aluminum (EA). Solid. Punched holes are also available for ease of installation.
| Part No. | Size | Thickness(mm) | Length(m) | Finish |
| KK-4121 | 41x21 (1-5/8x13/16) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4141 | 41x41 (1-5/8x1-5/8) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4162 | 41x62 (1-5/8x2-7/16) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4182 | 41x82 (1-5/8x3-1/4) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4125 | 41x25 (1-5/8x1) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |

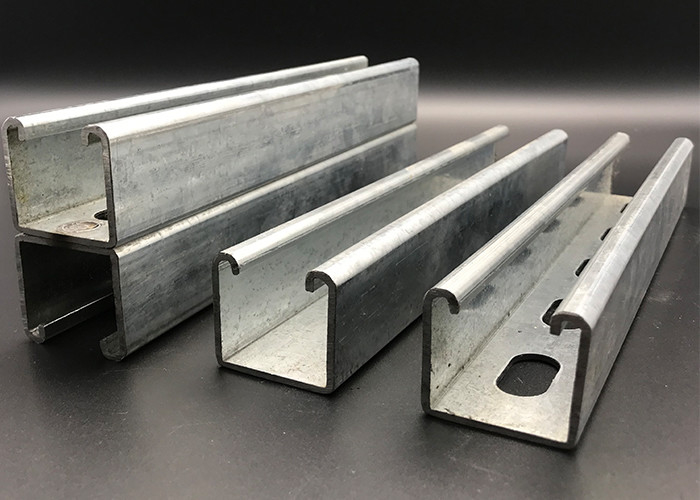

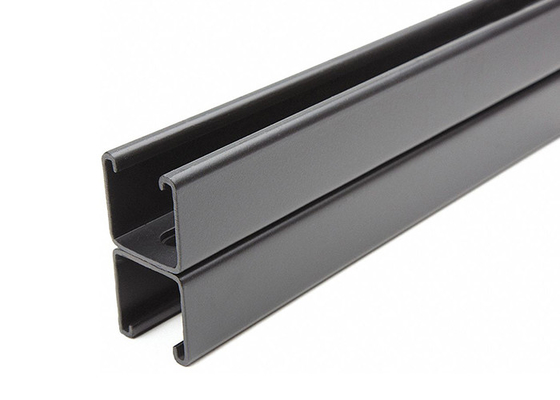

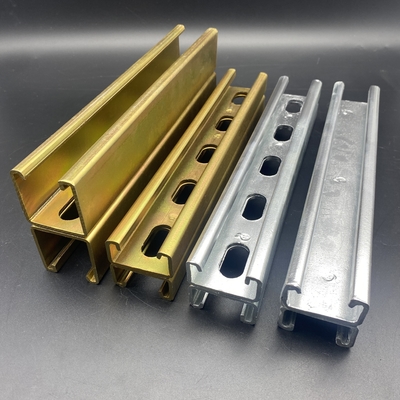

Product Show:
About KOKA:
Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and HVAC systems solutions provider,manufacturer .
Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.
Package:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
