Product Details:
|
| Material: | Q235,Stainless Steel 304/316 | Surface Treatment: | Zinc Plated /Galvanized/HDG/Copper Plate |
|---|---|---|---|
| Service: | ODM/OEM | Color: | White/Yellow Zinc/Gold Zinc |
| Cushion Material: | TPE | Usage: | HVAC |
| Certification: | ISO9001-2015 | Package: | Carton Box |
| High Light: | Q235 conduit bracket clamp,OEM conduit bracket clamp,Q235 unistrut conduit clamps |
||

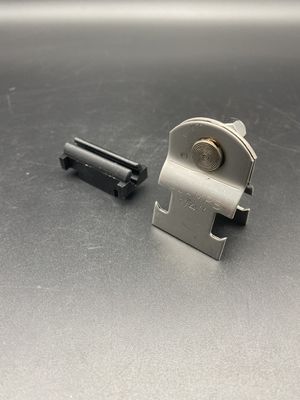

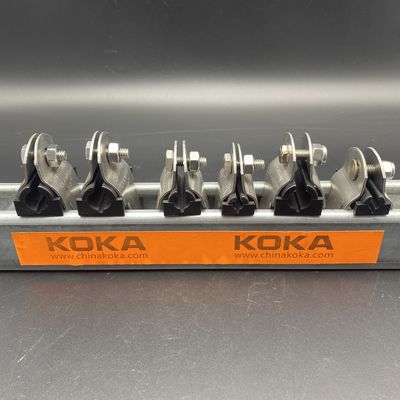

Stainless Steel Strut Cushion Clamp For Conduit
Products:Cushion Clamp
Features:
1) Stud Securely fastened to one clamp half.
2) Nylon insert nut assures a positive lock .
3) withstands effects of most oil ,chemicals,and industrial cleaners,in temperatures from -65°F to +275°F
4) Available size from 1/4" - 6Pipe"
Applications:
Cushion clamps are typically used in pneumatic refrigeration, HVAC, and some low pressure hydraulic lines. cushion clamps also eliminate metal to metal contact between the fluid lines and the support hardware. Standard material for the hardware is a clear trivalent zinc-plated steel, with options for both 304 and 316 grades stainless steel. Additional special options include aluminum and powder coating.
Specifications:
| Part No. | Tubing Size | Pipe Size | Pipe OD (inch) | Finish |
| CC-1/4 | 1/4” | - | 0.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/8 | 3/8” | - | 0.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/2 | 1/2” | - | 0.5 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/4-P | - | 1/4” | 0.54 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-5/8 | 5/8” | - | 0.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/8-P | - | 3/8” | 0.67 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/4 | 3/4” | - | 0.75 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/2-P | - | 1/2” | 0.84 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-7/8 | 7/8” | - | 0.87 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 | 1” | - | 1.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/4-P | - | 3/4” | 1.05 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/8 | 1-1/8” | - | 1.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/4 | 1-1/4” | - | 1.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1-P | - | 1” | 1.31 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 3/8 | 1-3/8” | - | 1.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/2 | 1-1/2” | - | 1.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 5/8 | 1-5/8” | - | 1.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/4-P | - | 1-1/4” | 1.66 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 3/4 | 1-3/4” | - | 1.75 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 7/8 | 1-7/8” | 1-1/2” | 1.90 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 | 2” | - | 2.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/8 | 2-1/8” | - | 2.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/4 | 2-1/4” | - | 2.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 3/8 | 2-3/8” | 2” | 2.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/2 | 2-1/2” | - | 2.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 5/8 | 2-5/8” | - | 2.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 7/8 | 2-7/8” | 2-1/2” | 2.87 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 | 3” | - | 3.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 1/8 | 3-1/8” | - | 3.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 1/2 | 3-1/2” | 3” | 3.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 5/8 | 3-5/8” | - | 3.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-4 1/8 | 4-1/8” | - | 4.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-4 1/2 | 4-1/2” | 4” | 4.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-6 | 6” | - | 6.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
Product Show:
Package:
