Product Details:
|
| Material: | Q235,Stainless Steel 304/316 | Surface Treatment: | Zinc Plated /Galvanized/HDG/Copper Plate |
|---|---|---|---|
| Service: | ODM/OEM | Color: | White/Yellow Zinc/Gold Zinc |
| Cushion Material: | TPE | Usage: | HVAC |
| Package: | Carton Box | Certification: | ISO9001-2015 |
| High Light: | Conduit Strut Cushion Clamps,HVAC Strut Cushion Clamps,HVAC unistrut conduit clamps |
||

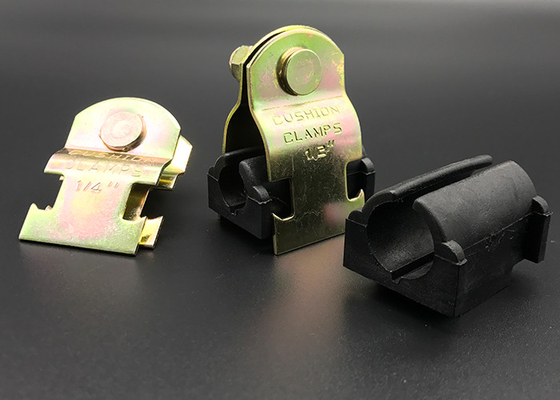

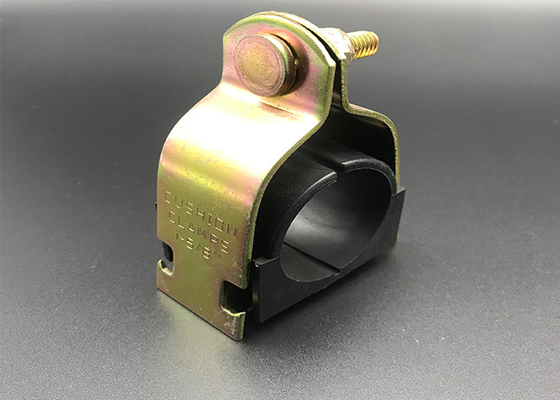

Hot Dip Galvanized Strut Channel Cushion Clamp Pipe Fitting For Conduit
Products:Cushion Clamp

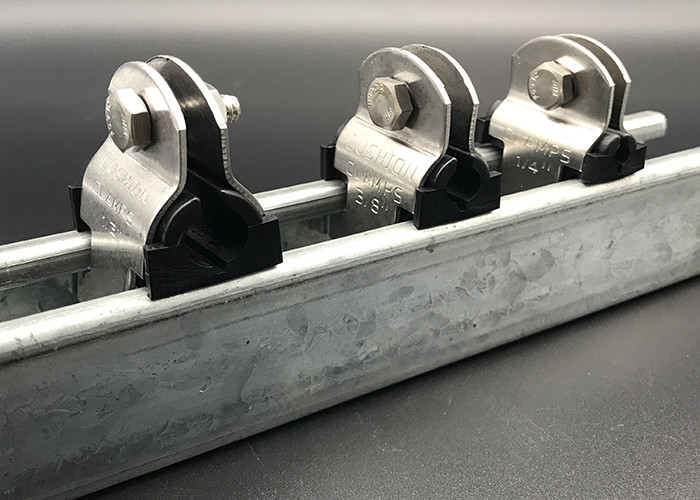

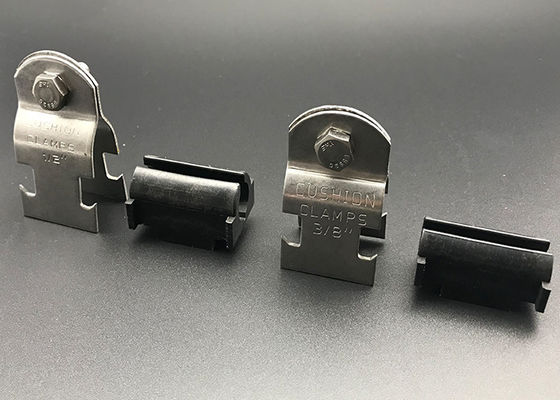

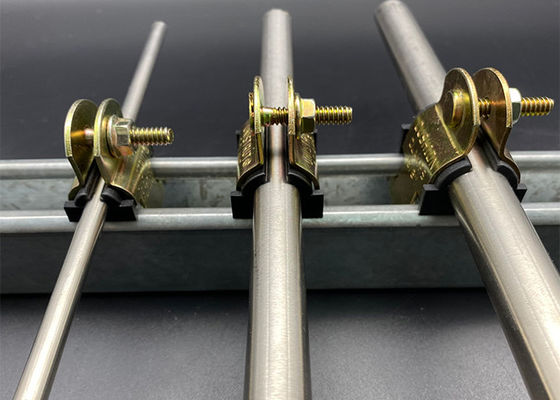

Cushion clamp Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise and preventing galvanic corrosion.Cushion clamp fits any standard 1-5/8 wide channel.
Pipe Channel Cushion Clamps are ideal for multiple line runs. They absorb shock and vibration, reduce unwanted noise and prevent galvanic corrosion. The time-saving clamps install quickly and allow additional tubes or pipes to be added without disassembling the existing installation.
Features:
1) Available in stainless steel on special order.
2) Other sizes on special order are available.
3) Clamps are manufactured from cold-rolled low-carbon steel with galvanized finish.
Applications:
Cushion clamps are typically used in pneumatic refrigeration, HVAC, and some low pressure hydraulic lines. cushion clamps also eliminate metal to metal contact between the fluid lines and the support hardware. Standard material for the hardware is a clear trivalent zinc-plated steel, with options for both 304 and 316 grades stainless steel. Additional special options include aluminum and powder coating.

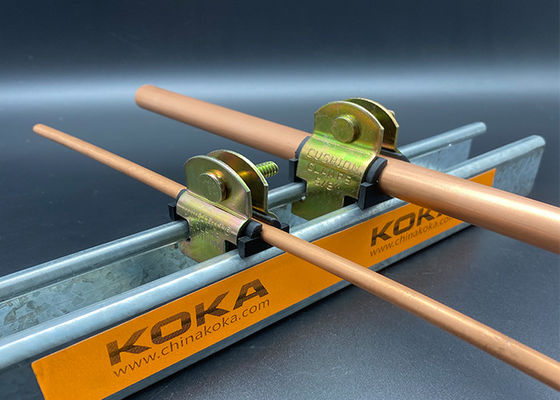

The cushion clamp by KOKA is a channel mount, cushioned pipe clamp that protects pipes from shock, vibration, noise, temperature and more. This Gold Electro-Galvanized Steel cushioned clamp system is ideal when running multiple lines because it absorbs shock and vibration, reduces unwanted noise and prevents galvanic corrosion. Cushion clamp are available in a variety of sizes to fit almost any size tube.
Specifications:
| Part No. | Tubing Size | Pipe Size | Pipe OD (inch) | Finish |
| CC-1/4 | 1/4” | - | 0.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/8 | 3/8” | - | 0.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/2 | 1/2” | - | 0.5 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/4-P | - | 1/4” | 0.54 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-5/8 | 5/8” | - | 0.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/8-P | - | 3/8” | 0.67 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/4 | 3/4” | - | 0.75 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/2-P | - | 1/2” | 0.84 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-7/8 | 7/8” | - | 0.87 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 | 1” | - | 1.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/4-P | - | 3/4” | 1.05 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/8 | 1-1/8” | - | 1.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/4 | 1-1/4” | - | 1.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1-P | - | 1” | 1.31 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 3/8 | 1-3/8” | - | 1.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/2 | 1-1/2” | - | 1.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 5/8 | 1-5/8” | - | 1.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/4-P | - | 1-1/4” | 1.66 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 3/4 | 1-3/4” | - | 1.75 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 7/8 | 1-7/8” | 1-1/2” | 1.90 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 | 2” | - | 2.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/8 | 2-1/8” | - | 2.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/4 | 2-1/4” | - | 2.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 3/8 | 2-3/8” | 2” | 2.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/2 | 2-1/2” | - | 2.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 5/8 | 2-5/8” | - | 2.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 7/8 | 2-7/8” | 2-1/2” | 2.87 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 | 3” | - | 3.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 1/8 | 3-1/8” | - | 3.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 1/2 | 3-1/2” | 3” | 3.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 5/8 | 3-5/8” | - | 3.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-4 1/8 | 4-1/8” | - | 4.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-4 1/2 | 4-1/2” | 4” | 4.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-6 | 6” | - | 6.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
Product Show:
Package:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
