Pre Galvanized Heavy Duty Pipe Clamps

Pre Galvanized Heavy Duty Pipe Clamps
Pre Galvanized Heavy Duty Pipe Clamps Pre Galvanized Heavy Duty Pipe Clamps Pre Galvanized Heavy Duty Pipe Clamps

Large Image :  Pre Galvanized Heavy Duty Pipe Clamps

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: 1/4" 1/2" 1-1/4"
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Sent email to us
Packaging Details: Pallet Packing,customized requirement
Delivery Time: 10-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 999999/pcs/month

Pre Galvanized Heavy Duty Pipe Clamps

Description
Material: Carbon Steel/ss304/ss316/Copper/Aluminum Surface Treatment: Zinc Plated /Galvanized/HDG
Specification: 1/4" 1/2" 1-1/4" Thickness: 1.5-3.0MM
Service: OEM ODM Sample: Available
Certification: ISO9001-2015 Package: Carton Box
Highlight:

pre Galvanized heavy duty pipe clamps

,

14.7mm heavy duty pipe clamps

,

pre Galvanized pipe conduit clamp

Strut Channel Pipe Clamp



Products:Strut Clamp

Strut pipe clamps are available in a variety of styles: two-hole pipe straps, two-piece pipe clamps for use in 1-5/8" Unistrut channel, cushioned pipe clamps, uncushioned pipe clamps, u-bolt and more. Uni strut pipe clamps and conduit clamps cover a range of applications from mechanical and electrical to plumbing and gas.

Features: Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.
Side screws are protected against loss during assemble with the help of plastic washers

Applications:

Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
For Suspending Stationary Non-Insulated Copper Tubing Lines

KOKA pipe clamps are available in a variety of styles: two-hole pipe straps, two-piece pipe clamps for use in 1-5/8" Unistrut channel, cushioned pipe clamps, uncushioned pipe clamps, u-bolt and more. Strut pipe clamps and conduit clamps cover a range of applications from mechanical and electrical to plumbing and gas. We sell nominal sizes, outside diameters (O.D.), International Pipe Sizes (IPL), Pipe Schedules (schedule 40 & schedule 80 pipe clamps), Copper Tubing Sizes, and more.



Part No. Pipe Size (Inch) OD Size (Inch) OD Size (mm) Finish
EMT
KK-2025 3/8” 0.577" 14.7 EG/HDG/SS304/SS316
KK-2026 1/2” 0.706" 17.9 EG/HDG/SS304/SS316
KK-2028 3/4” 0.922" 23.4 EG/HDG/SS304/SS316
KK-2030 1” 1.163" 29.5 EG/HDG/SS304/SS316
KK-2032 1-1/4” 1.510" 38.4 EG/HDG/SS304/SS316
KK-2034 1-1/2” 1.740" 44.2 EG/HDG/SS304/SS316
KK-2038 2” 2.197" 55.8 EG/HDG/SS304/SS316

UNIVERSAL
KK-2055 3/8”   16.4 EG/HDG/SS304/SS316
KK-2056 1/2”   19.5 EG/HDG/SS304/SS316
KK-2058 3/4”   24.9 EG/HDG/SS304/SS316
KK-2060 1”   31.4 EG/HDG/SS304/SS316
KK-2062 1-1/4”   40.2 EG/HDG/SS304/SS316
KK-2064 1-1/2”   46.2 EG/HDG/SS304/SS316
KK-2068 2”   58.0 EG/HDG/SS304/SS316

RGD
KK-2125 3/8” 0.675" 18.0 EG/HDG/SS304/SS316
KK-2126 1/2” 0.840" 21.3 EG/HDG/SS304/SS316
KK-2128 3/4” 1.050" 26.7 EG/HDG/SS304/SS316
KK-2130 1” 1.315" 33.4 EG/HDG/SS304/SS316
KK-2132 1-1/4” 1.660" 44.2 EG/HDG/SS304/SS316
KK-2134 1-1/2” 1.900" 48.3 EG/HDG/SS304/SS316
KK-2138 2” 2.375" 60.3 EG/HDG/SS304/SS316
KK-2142 2-1/2” 2.875" 73.0 EG/HDG/SS304/SS316
KK-2146 3” 3.500" 88.9 EG/HDG/SS304/SS316
KK-2150 3-1/2” 4.000" 101.6 EG/HDG/SS304/SS316
KK-2154 4” 4.500" 114.3 EG/HDG/SS304/SS316
KK-2162 5” 5.563" 141.3 EG/HDG/SS304/SS316
KK-2170 6” 6.625" 168.3 EG/HDG/SS304/SS316
KK-2174 8” 8.625" 216.3 EG/HDG/SS304/SS316



Product Show:

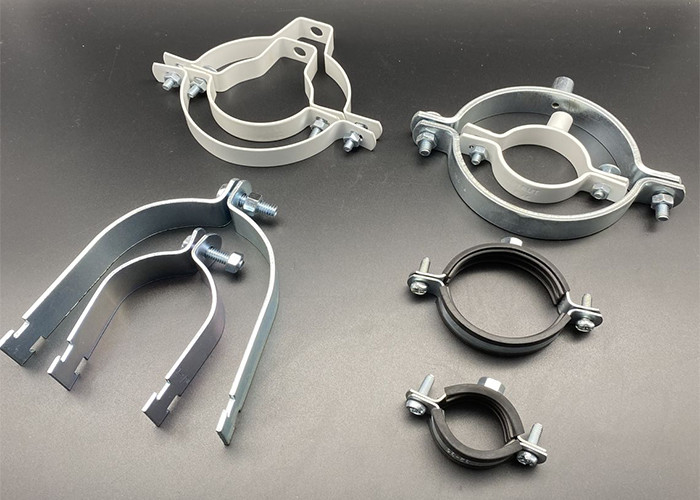

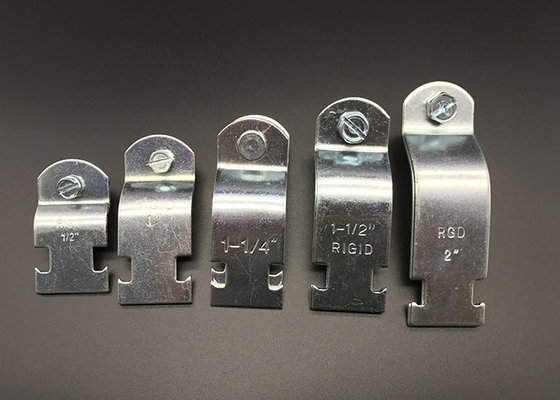

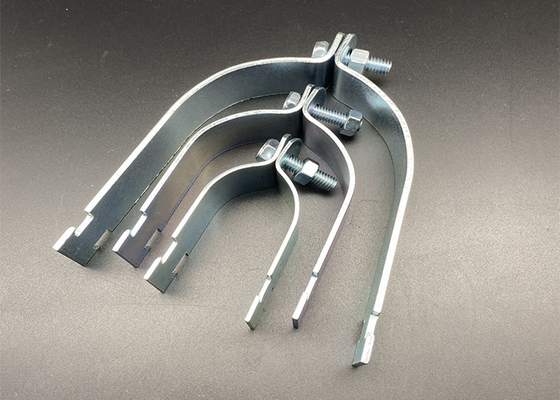

Pre Galvanized Heavy Duty Pipe Clamps 0 Pre Galvanized Heavy Duty Pipe Clamps 1Pre Galvanized Heavy Duty Pipe Clamps 2 Pre Galvanized Heavy Duty Pipe Clamps 3





About KOKA:

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.



Package:

Pre Galvanized Heavy Duty Pipe Clamps 4 Pre Galvanized Heavy Duty Pipe Clamps 5

Pre Galvanized Heavy Duty Pipe Clamps 6
