Product Details:
|
| Material: | Carbon Steel/ss304/ss316 | HDG Standard: | EN1461 |
|---|---|---|---|
| Pre Galvanized Standard: | EN10142 | Service: | OEM ODM |
| Color: | Silver | Certification: | ISO9001-2015 |
| Package: | Carton Box | Sample: | Available |
| High Light: | EN 1461 Spring Channel Nut,M6 Strut Spring Channel Nut,SS316 stainless steel spring nuts |
||
Channel Stainless Steel Spring Nuts
Products:Spring nut
Features: Koka Strut Channel Nuts are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka strut channel.
Applications: Strut Channel
1. Material: carbon steel, SS304,SS316
2. Surface treatment: ,Hot dip galvanzied, Electro Galvanzied, SS304,SS316
3. Standard Size: M6, M8,M10,M12, M14,M16,M18
|
Spring Nut (Short Spring) |
||||
|
Part No. |
Thread Size |
Thickness (mm) |
Spring Length (mm) |
Finish |
|
SN4006 |
1/4”-20 | 6 | 20 | EG/HDG/SS304/SS316 |
|
SN4006-M6 |
M6 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4007 | 5/16”-18 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4007-M8 | M8 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4008 | 3/8”-16 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4008-M10 | M10 | 8/9/10 | 20 | EG/HDG/SS304/SS316 |
| SN4010 | 1/2”-13 | 12 | 20 | EG/HDG/SS304/SS316 |
| SN4010-M12 | M12 | 8/9/12 | 20 | EG/HDG/SS304/SS316 |
| Spring Nut (Regular Spring) | ||||
| Part No. | Thread Size |
Thickness (mm) |
Spring Length (mm) |
Finish |
| SN1006 | 1/4”-20 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1006-M6 | M6 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1007 | 5/16”-18 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1007-M8 | M8 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1008 | 3/8”-16 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1008-M10 | M10 | 8/9/10 | 40 | EG/HDG/SS304/SS316 |
| SN1010 | 1/2”-13 | 12 | 40 | EG/HDG/SS304/SS316 |
| SN1010-M12 | M12 | 8/9/12 | 40 | EG/HDG/SS304/SS316 |
| Spring Nut (Long Spring) | ||||
| Part No. | Thread Size |
Thickness (mm) |
Spring Length (mm) |
Finish |
| SN2006 | 1/4”-20 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2006-M6 | M6 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2007 | 5/16”-18 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2007-M8 | M8 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2008 | 3/8”-16 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2008-M10 | M10 | 8/9/10 | 60 | EG/HDG/SS304/SS316 |
| SN2010 | 1/2”-13 | 12 | 60 | EG/HDG/SS304/SS316 |
| SN2010-M12 | M12 | 8/9/12 | 60 | EG/HDG/SS304/SS316 |

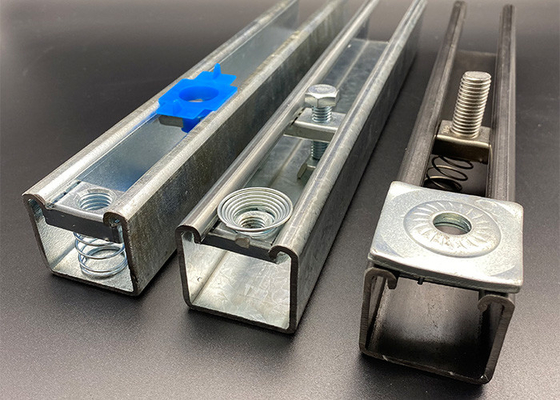

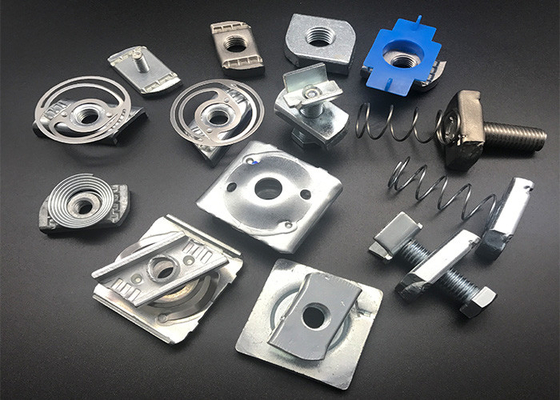

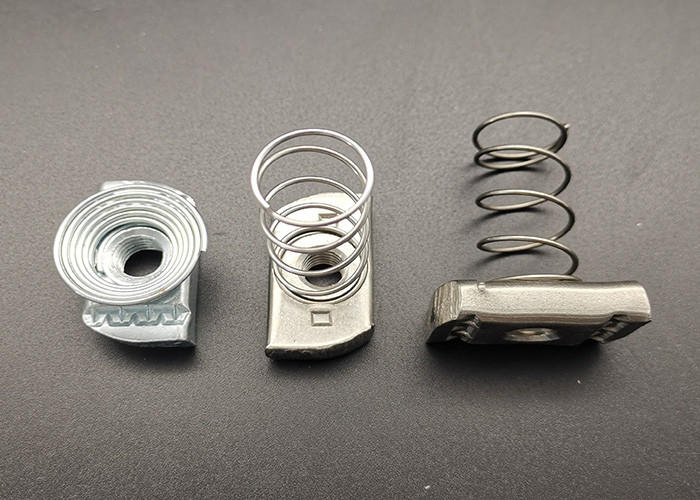

Product Show:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
