Product Details:
|
| Material: | Carbon Steel/ss304/ss316 | HDG Standard: | EN1461 |
|---|---|---|---|
| Pre Galvanized Standard: | EN10142 | Service: | OEM ODM |
| Color: | Silver | Certification: | ISO9001-2015 |
| Package: | Carton Box | Sample: | Available |
| High Light: | EG 5/16 Spring Channel Nut,Short HDG Spring Channel Nut,Short HDG regular spring nut |
||
Unistrut Strut Channel Nut With Regular Spring
Products:Spring nut
Features: Koka Strut Channel Nuts are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka strut channel.
Applications:Strut Channel
It is designed to provide essential gripping power and ease during installation.
Zinc-plated steel nuts are corrosion resistant in wet environments.
316 stainless steel nuts have excellent resistance to chemicals and salt water.
Specification:
1. Material: carbon steel, SS304,SS316
2. Surface treatment: ,Hot dip galvanzied, Electro Galvanzied, SS304,SS316
3. Function: spring piece nut block can be staffed directly into any assembly point of profile's groove duct, the spring piece on its back can fasten the position very simple and reliable, it is one often used accessories for profile's connection
4. Standard Size: M6, M8,M10,M12, M14,M16,M18
|
Spring Nut (Short Spring) |
||||
|
Part No. |
Thread Size |
Thickness (mm) |
Spring Length (mm) |
Finish |
|
SN4006 |
1/4”-20 | 6 | 20 | EG/HDG/SS304/SS316 |
|
SN4006-M6 |
M6 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4007 | 5/16”-18 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4007-M8 | M8 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4008 | 3/8”-16 | 6 | 20 | EG/HDG/SS304/SS316 |
| SN4008-M10 | M10 | 8/9/10 | 20 | EG/HDG/SS304/SS316 |
| SN4010 | 1/2”-13 | 12 | 20 | EG/HDG/SS304/SS316 |
| SN4010-M12 | M12 | 8/9/12 | 20 | EG/HDG/SS304/SS316 |
| Spring Nut (Regular Spring) | ||||
| Part No. | Thread Size |
Thickness (mm) |
Spring Length (mm) |
Finish |
| SN1006 | 1/4”-20 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1006-M6 | M6 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1007 | 5/16”-18 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1007-M8 | M8 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1008 | 3/8”-16 | 6 | 40 | EG/HDG/SS304/SS316 |
| SN1008-M10 | M10 | 8/9/10 | 40 | EG/HDG/SS304/SS316 |
| SN1010 | 1/2”-13 | 12 | 40 | EG/HDG/SS304/SS316 |
| SN1010-M12 | M12 | 8/9/12 | 40 | EG/HDG/SS304/SS316 |
| Spring Nut (Long Spring) | ||||
| Part No. | Thread Size |
Thickness (mm) |
Spring Length (mm) |
Finish |
| SN2006 | 1/4”-20 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2006-M6 | M6 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2007 | 5/16”-18 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2007-M8 | M8 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2008 | 3/8”-16 | 6 | 60 | EG/HDG/SS304/SS316 |
| SN2008-M10 | M10 | 8/9/10 | 60 | EG/HDG/SS304/SS316 |
| SN2010 | 1/2”-13 | 12 | 60 | EG/HDG/SS304/SS316 |
| SN2010-M12 | M12 | 8/9/12 | 60 | EG/HDG/SS304/SS316 |

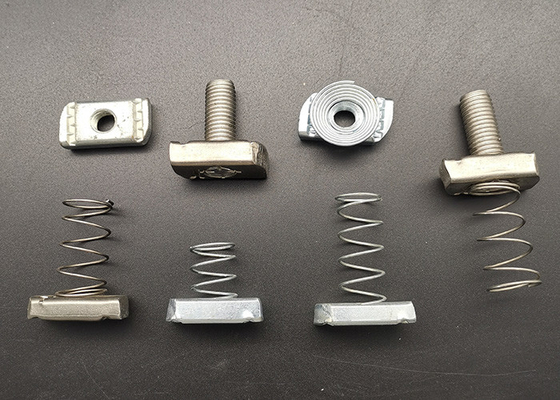

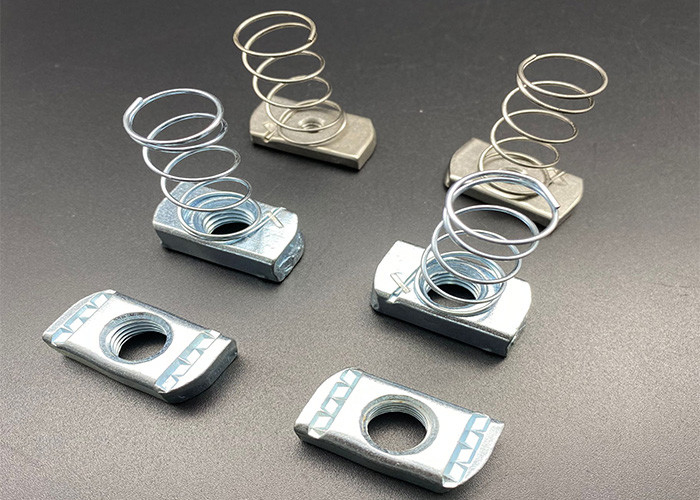

Product Show:
