Product Details:
|
| Material: | Carbon Steel/ss304/ss316/Copper/Aluminum | Surface Treatment: | Zinc Plated /Galvanized/HDG |
|---|---|---|---|
| Specification: | 1/4" 1/2" 1-1/4" | Thickness: | 1.5-3.0MM |
| Service: | OEM ODM | Sample: | Available |
| Certification: | ISO9001-2015 | Package: | Carton Box |
| High Light: | ss304 Cable Pipe Holding Clamp,HDG Pipe Holding Clamp,HDG hinged pipe clamp |
||
Metal Cable Pipe Holding Clamp
Products: Cable Clamp
Applications:
Pipe clamp is applied in the areas of pipeline systems. Such as sanitary and heating installations, gas distribution systems, air conditioning systems, etc..
| Part No. | Nom.Pipe Size |
Trade Size Min O.D. ( mm) |
Trade Size Max O.D. (mm) |
Bolt Size | Finish |
| CC025 | 1/4” | 8(0.375”) | 14(0.55”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC037 | 3/8” | 14(0.55”) | 16(0.63”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC050 | 1/2” | 16(0.63”) | 20(0.79”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC075 | 3/4” | 20(0.79”) | 26(1.05”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC100 | 1” | 26(1.05”) | 32(1.26”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC125 | 1-1/4” | 32(1.26”) | 40(1.57”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC150 | 1-1/2” | 40(1.57”) | 46(1.81”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC175 | 1-3/4” | 46(1.81”) | 52(2.05”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC200 | 2” | 52(2.05”) | 58(2.30”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC225 | 2-1/4” | 58(2.30”) | 66(2.60”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC250 | 2-1/2” | 66(2.60”) | 70(2.75”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC275 | 2-7/8” | 70(2.75”) | 78(3.07”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC300 | 3” | 78(3.07”) | 82(3.23”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC325 | 3-1/4” | 80(3.23”) | 90(3.54”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC350 | 3-1/2” | 90(3.54”) | 100(3.94”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC400 | 4” | 100(3.94”) | 114.3(4.5”) | 5/16" -32 | EG/HDG/SS304/SS316 |
| CC450 | 4-1/2” | 114.3(4.5”) | 126(4.96”) | 5/16" -32 | EG/HDG/SS304/SS316 |

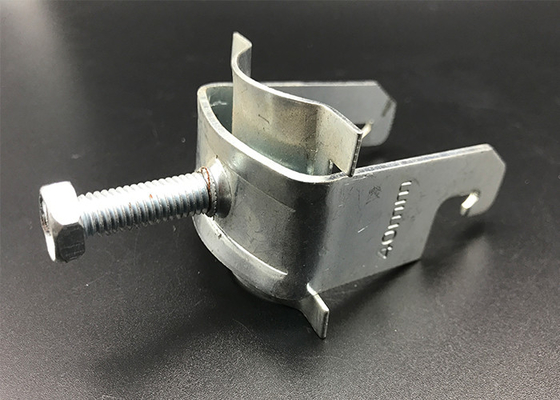

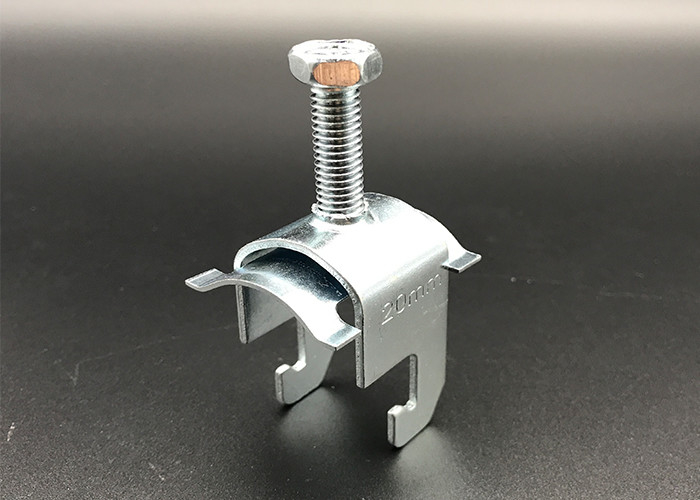

Product Show:
