Product Details:
|
| Material: | Malleable Iron/ss304/ss316 | Surface Treatment: | Zine Plated |
|---|---|---|---|
| Service: | ODM/OEM | Certification: | ISO9001-2015 |
| Sample: | Available | Package: | Carton Box |
| Size: | 1/4" 3/8" 1/2" M6 M8 M10 M12 | Delivery Time: | 7-15Days |
| High Light: | Malleable Cast Iron Beam Clamp,M6 Cast Iron Beam Clamp,M6 malleable iron beam clamps |
||
Casting Casted Malleable Iron Steel Beam Pipe Clamp
Products:Beam Clamp
Features:
1) easy & flexible in installation, low cost
2) samples & catalogs are free
3) all size are available
Certification:
1. Material: Cast Malleable Steel with hardened cup point set screw and jam nut;
2. Finish: Electro-galvanized finish for enhanced corrosion protection, Available in hot dip galvanized finish (special order);
3. Features: May be used on top or bottom flange of the beam. Beveled lip allows hanging from top flange where clearance is limited. may be installed with the set screw in the up or down position. Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp. The rear window design permits inspection of thread engagement;
4. Function: For attachment to structural shapes requiring wider throat especially under roof with bar joist construction. This clamp may be used with the set screw in the up or down position;
5. Note: Do not over tighten set screw.
| Part No. | Fmax(kN) | H1 (mm) | G (mm) | S (Bolt&Nut) | PCS/Box | Surface Finished |
| BC-M6 | 1.1 | 18 | M6 | M6 | 50 | EG/HDG/SS304/SS316 |
| BC-M6-T | 1.1 | 18 | 7 | M6 | 50 | EG/HDG/SS304/SS316 |
| BC-1/4 | 1.1 | 18 | 1/4 | 1/4 | 50 | EG/HDG/SS304/SS316 |
| BC-1/4-T | 1.1 | 18 | 7 | 1/4 | 50 | EG/HDG/SS304/SS316 |
| BC-M8 | 1.1 | 18 | M8 | M8 | 50 | EG/HDG/SS304/SS316 |
| BC-M8-T | 1.1 | 18 | 9 | M8 | 50 | EG/HDG/SS304/SS316 |
| BC-5/16 | 1.1 | 18 | 5/16 | 5/16 | 50 | EG/HDG/SS304/SS316 |
| BC-5/16-T | 1.1 | 18 | 9 | 5/16 | 50 | EG/HDG/SS304/SS316 |
| BC-M10 | 2.4 | 20 | M10 | M0 | 50 | EG/HDG/SS304/SS316 |
| BC-M10-T | 2.4 | 20 | 11 | M10 | 50 | EG/HDG/SS304/SS316 |
| BC-3/8 | 2.4 | 20 | 3/8 | 3/8 | 50 | EG/HDG/SS304/SS316 |
| BC-3/8-T | 2.4 | 20 | 11 | 3/8 | 50 | EG/HDG/SS304/SS316 |
| BC-M12 | 3.1 | 27 | M12 | M12 | 25 | EG/HDG/SS304/SS316 |
| BC-M12-T | 3.1 | 27 | 13 | M12 | 25 | EG/HDG/SS304/SS316 |
| BC-1/2 | 3.1 | 27 | 1/2 | 1/2 | 25 | EG/HDG/SS304/SS316 |
| BC-1/2-T | 3.1 | 27 | 13 | 1/2 | 25 | EG/HDG/SS304/SS316 |

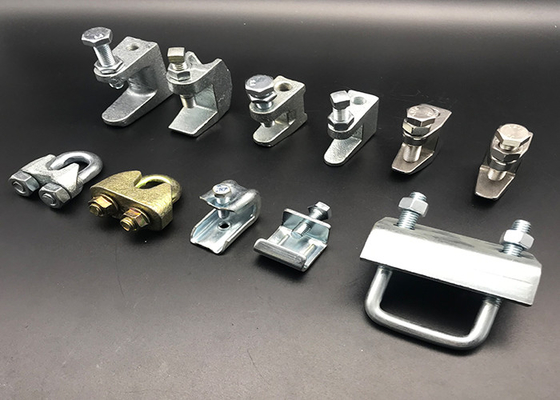

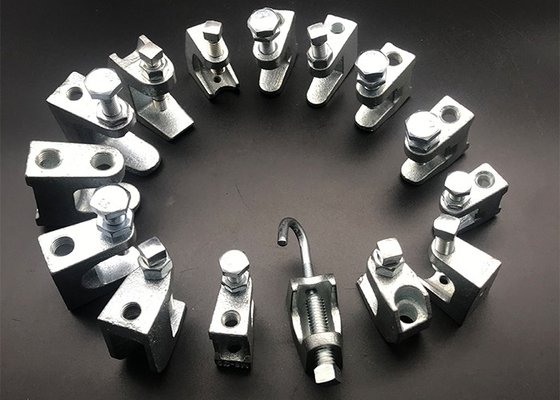

Product Show:
Package:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
