Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch

I'm Online Chat Now

Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch

Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch
Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch

Large Image :  Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: SNWW1008-M10
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch

Description
Material: Carbon Steel/ss304/ss316 HDG Standard: EN1461
Pre Galvanized Standard: EN10142 Service: OEM ODM
Color: Silver Certification: ISO9001-2015
Package: Carton Box Sample: Available
High Light:

Combo Strut Spring Channel Nut

,

3/8 inch Spring Channel Nut

,

9mm square nut clip

High Quality Combo Strut Channel Nut with Square Clip Faster Fitting Assembly Washer



Products:Spring nut with washer



Features: Koka Strut Channel Nuts are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka strut channel.

Helps reduce overall installation time

Sizes available in 1/4”-20, 3/8”-16, 1/2”-13

Combination design reduces the number of parts

Allows for easy adjustment when installed in channel

Provides quick attachment for threaded rod

Able to install using just one hand



Available in 1/4", 3/8" or 1/2" rod sizes, the Combination Channel Nut Square Washer helps eliminate excess on-the-job costs by reducing both installation time and materials. The channel nut has an integrated square washer so that two parts are now one easy to manage product. It installs in seconds - simply place the combo-nut into the open surface of any standard strut channel and rotate the square washer to lock the nut in place. The combo-nut washer is perfect for making strut trapeze installations fast and easy, and when combined with threaded rod and a hex nut it provides a solid, secure connection



Applications:Strut Channel



Specification:

1. Material: carbon steel, SS304,SS316
2. Surface treatment: ,Hot dip galvanzied, Electro Galvanzied, SS304,SS316
3. Standard Size: M6, M8,M10,M12, M14,M16,M18



Part No.
Thread Size
Thickness(mm)
Spring Length(mm)
Finish
SNWW1008-M10
M10
9
3-5
EG/HDG/SS304/SS316

Product Show:

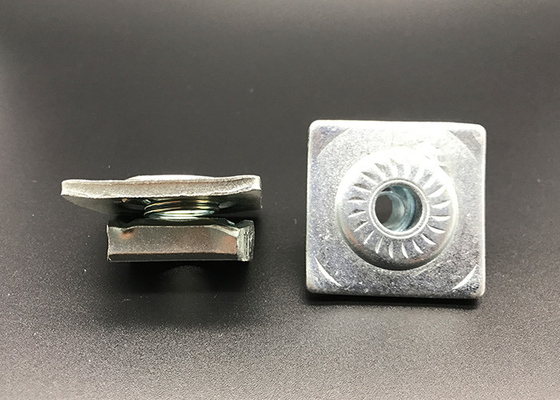

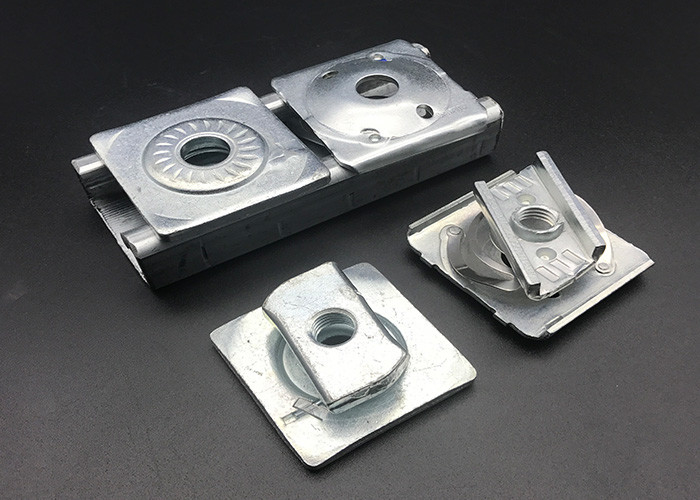

Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch 0  Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch 1

Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch 2  Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch 3



Package:



Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch 4  Combo Strut Spring Channel Nut 9mm Square Nut Clip 3/8 Inch 5
