M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304

I'm Online Chat Now

M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304

M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304
M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304 M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304

Large Image :  M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: TBO-0835
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union
Supply Ability: 99999 pcs/month

M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304

Description
Material: Carbon Steel/ss304/ss316 HDG Standard: EN1461
Pre Galvanized Standard: EN10142 Size: M8-M12
Service: OEM ODM Certification: ISO9001-2015
Sample: Available Package: Carton Box
Highlight:

TBO-1035 Spring Channel Nut

,

M12 Washer Spring Channel Nut

,

TBO 1035 bolt stud nut

TBO T Head Bolt Stud Nut With Washer



Products:T Head Bolt



Features: Koka Strut Channel Nuts are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka strut channel.

The values indicated refer to the point of application of force being near the top edge of the channel. In cases where tension and lateral tension are encountered, the resultant total load may not be greater than the values given.



Applications:Suitable for Channels



Specification:

Part No.
Thread Size
Flat Washer
Length(mm)
Finish
TBO-0835
M8
8.5*40*3.0mm
35
EG/HDG/SS304/SS316
TBO-1035
M10
10.5*40*3.0mm
35
EG/HDG/SS304/SS316
TBO-1035
M12
12.5*40*3.0mm
35
EG/HDG/SS304/SS316

All Size Available
All Thickness Available
All Length Available
EG/HDG/SS304/SS316





Product Show:

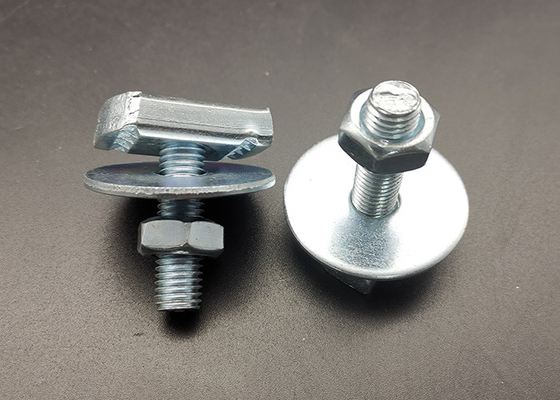

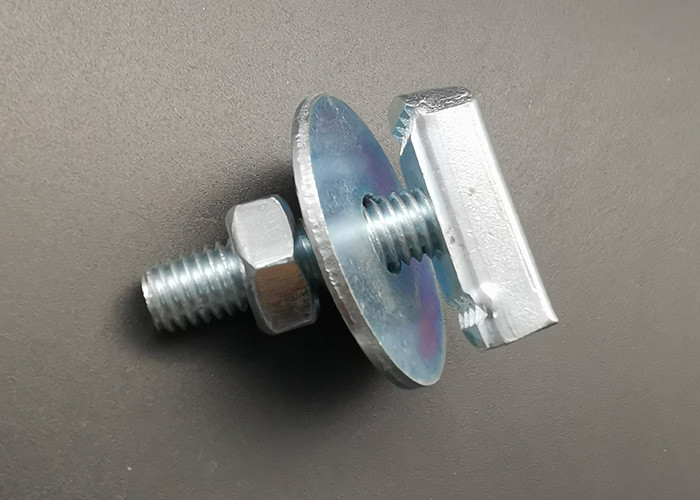

M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304 0  M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304 1

M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304 2  M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304 3





Package:



M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304 4  M12 Washer Spring Channel Nut TBO 1035 Bolt Stud Nut SS304 5



About KOKA:

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.

KOKA is the ideal solution for flexible support system available.



FAQ:

Q1: Do you provide free samples?
A: Yes ,you can get the free samples
Q2: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q63: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
