SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking

SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking
SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking

Large Image :  SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: CTK -5050
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking

Description
Material: Steel/Q235B Service: OEM ODM
Maximum Load-bearing Capacity: 216kg/meter Length: 2400mm,2500mm,3000mm
Certification: ISO9001-2015 Sample: Available
Standard: NEMA20B NEM 20C NEMA 16A Package: Carton Box+Pallet
Highlight:

SS316 hdg cable trunking

,

Powder Coating hdg cable trunking

,

ISO9001 hot dip galvanized trunking

SS304 SS316 HDG Pre-Galvanized Cable Trunking



Products:Cable Trunking



Features:Koka Cable Trunking are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka cable trunking.



Applications:Cable Support



Specification:

Light Duty Cable Trunking

Part No.

Width(mm)

Height(mm)

Thickness(mm)

Length(mm) Finish

CTK -5050

50 50 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316

CTK -7550

75 50 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -6060 60 60 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -10050 100 50 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -10075 100 75 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-100100 100 100 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-15075 150 75 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-150100 150 100 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -150150 150 150 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-200100 200 100 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-200150 200 150 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-200200 200 200 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-300100 300 100 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-300150 300 150 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-300200 300 200  1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316

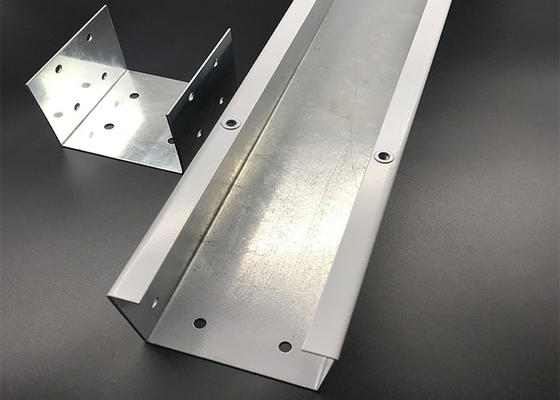

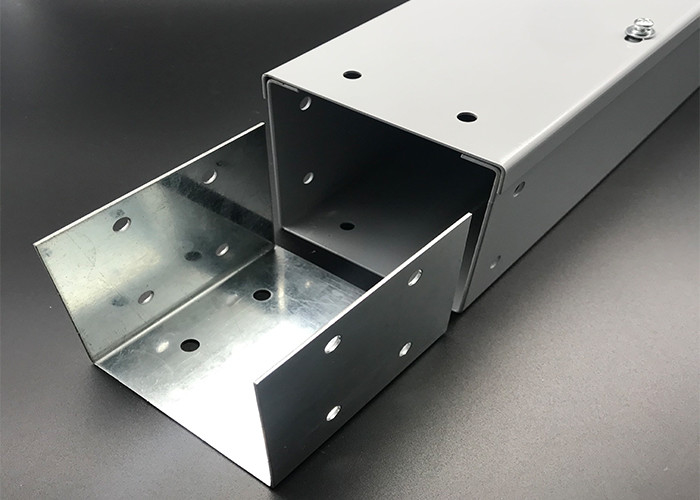

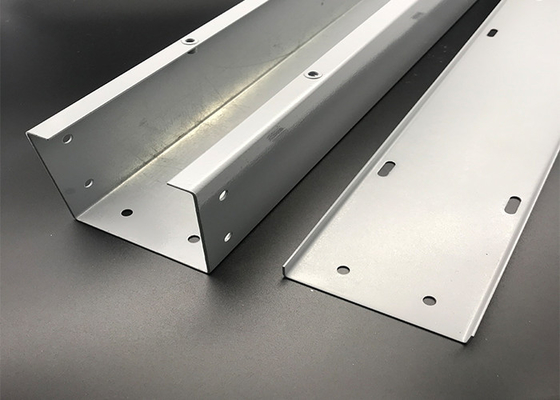

Product Show:

SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking 0   SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking 1



Package:



SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking 2   SS316 Powder Coating Hdg Cable Trunking ISO9001 Hot Dip Galvanized Trunking 3



About KOKA:

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.

KOKA is the ideal solution for flexible support system available.

KOKA takes pride in building long term partnerships with clients that ensure a superior service and provider highest quality products.

KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.

KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.

KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.

KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
