Product Details:
|
| Material: | Steel/Q235B | Service: | OEM ODM |
|---|---|---|---|
| Maximum Load-bearing Capacity: | 50-200kg | Length: | 2.44m/3m/6m |
| Type: | Ladder Tray | Certification: | ISO9001-2015 |
| Standard :: | NEMA 20B 20C | Finished: | EG/HDG/Powder Coating/SS304/SS316 |
| Highlight: | 2.44m HDG Cable Ladder,200kg HDG Cable Ladder,EG ladder type cable tray |
||

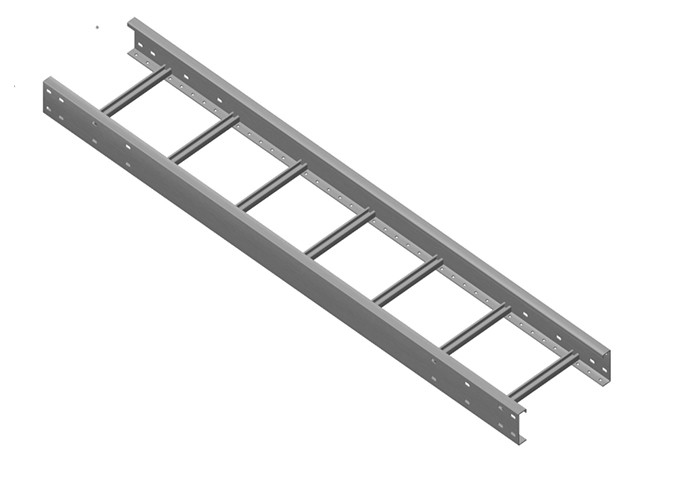

Hot Dip Galvanized HDG Ladder Type Cable Tray
Products:Cable Ladder
Cable ladder is widely used in the wiring system to let the wiring smooth and tidy. It is used to support large numbers of large cables between two points. It is suitable for large diameters wires especially for high and low voltage power cables. Compared with cable tray, which is isolated, the cable ladder has good air circulation and heat dissipation. It is stabler and high load capacity than the wire mesh cable tray.
Features:Koka Cable Ladder are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka cable ladder.
Applications:Cable Support
Generally, cable ladders are preferred for supporting high volume or heavy cabling, especially if there are long spans between supports.
Specification:
| Part No. | Width(mm) | Heigth(mm) | Thickness(mm) | Length(mm) | Finish |
| Cable Ladder | |||||
| CL-150-50 | 150 | 50 | 1.5 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-200-50 | 200 | 50 | 1.5 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-250-50 | 250 | 50 | 1.5 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-300-50 | 300 | 50 | 1.5 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-400-50 | 400 | 50 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-450-50 | 450 | 50 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-500-50 | 500 | 50 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-600-50 | 600 | 50 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-750-50 | 750 | 50 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-900-50 | 900 | 50 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-150-75 | 150 | 75 | 1.5 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-200-75 | 200 | 75 | 1.5 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-250-75 | 250 | 75 | 1.5 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-300-75 | 300 | 75 | 1.5 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-400-75 | 400 | 75 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-450-75 | 450 | 75 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-500-75 | 500 | 75 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-600-75 | 600 | 75 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-750-75 | 750 | 75 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-900-75 | 900 | 75 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| Heavy Duty Cable Ladder | |||||
| CL-150-100 | 150 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-200-100 | 200 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-250-100 | 250 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-300-100 | 300 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-400-100 | 400 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-450-100 | 450 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-500-100 | 500 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-600-100 | 600 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-750-100 | 750 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-900-100 | 900 | 100 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-150-125 | 150 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-200-125 | 200 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-250-125 | 250 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-300-125 | 300 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-400-125 | 400 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-450-125 | 450 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-500-125 | 500 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-600-125 | 600 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-750-125 | 750 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-900-125 | 900 | 125 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-150-150 | 150 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-200-150 | 200 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-250-150 | 250 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-300-150 | 300 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-400-150 | 400 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-450-150 | 450 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-500-150 | 500 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-600-150 | 600 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-750-150 | 750 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |
| CL-900-150 | 900 | 150 | 2 | 2400/3000/6000 | EG/HDG/Powder Coating/SS304/SS316 |

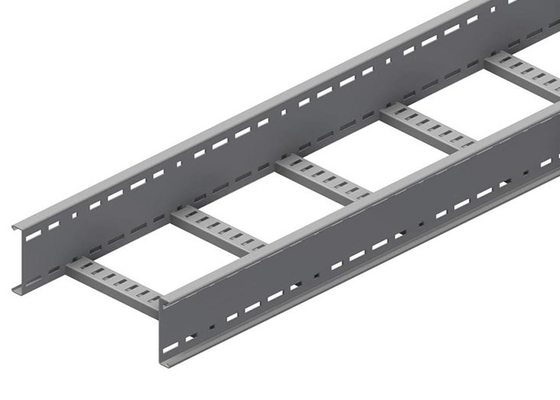

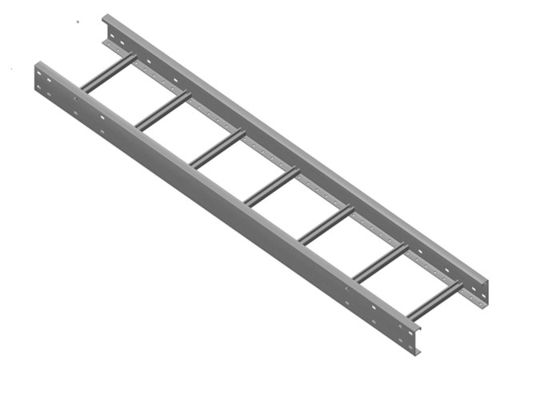

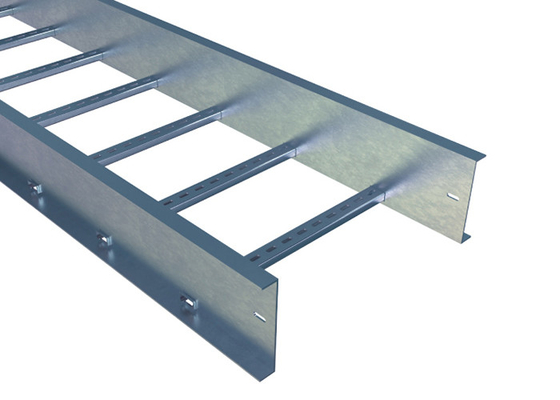

Product Show:
