Product Details:
|
| Material: | Steel/Q235B | Service: | OEM ODM |
|---|---|---|---|
| Maximum Load-bearing Capacity: | 198Kg | Length: | 2400mm,3000mm |
| Type: | Wire Mesh | Certification: | ISO9001-2015 |
| Sample: | Available | Package: | Carton Box+Pallet |
| Highlight: | SS304 steel Wire Mesh Cable Tray,3000mm Wire Mesh Cable Tray,SS304 3m electrical basket tray |
||

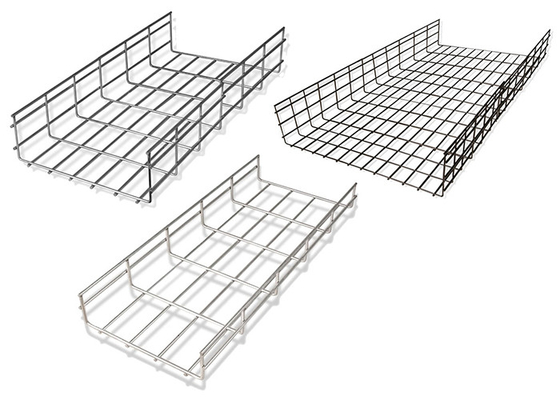

Stainless Steel SS304 SS316 Wire Mesh Cable Tray
Products:Wire Mesh Cable Tray
Applications:Cable Support
The zinc plating on these tray systems offers good corrosion resistance. Cut, bend, and connect the wire mesh trays to route cable and hose in configurations such as curves, slopes, and tees. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
KOKA wire mesh basket is ideal for commercial and data center cable management, providing a flexible means of adapting your tray to fit your job-site application.
Easily modified for both horizontal and vertical transitions
Available in a variety of finishes to meet environmental and aesthetic requirements
Specification :
| Part No. |
Width (mm) |
Height (mm) |
Steel ¢D | Length(mm) | Finish |
| Wire Mesh Cable Tray | |||||
| WM-50*25 | 50 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS316 |
| WM-100*25 | 100 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS317 |
| WM-150*25 | 150 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS318 |
| WM-200*25 | 200 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS319 |
| WM-300*25 | 300 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS320 |
| WM-100*35 | 100 | 35 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS321 |
| WM-150*35 | 150 | 35 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS322 |
| WM-200*35 | 200 | 35 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS323 |
| WM-300*35 | 300 | 35 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS324 |
| WM-54*54 | 54 | 54 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS325 |
| WM-100*54 | 100 | 54 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS326 |
| WM-150*54 | 150 | 54 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS327 |
| WM-200*54 | 200 | 54 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS328 |
| WM-300*54 | 300 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS329 |
| WM-400*54 | 400 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS330 |
| WM-450*54 | 450 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS331 |
| WM-500*54 | 500 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS332 |
| WM-600*54 | 600 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS333 |
| WM-700*54 | 700 | 54 | ¢6 | EG/HDG/Powder Coating/SS304/SS334 | |
| WM-750*54 | 750 | 54 | ¢6 | 1000 | EG/HDG/Powder Coating/SS304/SS335 |
| WM-800*54 | 800 | 54 | ¢6 | 1000 | EG/HDG/Powder Coating/SS304/SS336 |
| WM-100*100 | 100 | 100 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS337 |
| WM-150*100 | 150 | 100 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS338 |
| WM-200*100 | 200 | 100 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS339 |
| WM-300*100 | 300 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS340 |
| WM-400*100 | 400 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS341 |
| WM-450*100 | 450 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS342 |
| WM-500*100 | 500 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS343 |
| WM-600*100 | 600 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS344 |
| WM-700*100 | 700 | 100 | ¢6 | EG/HDG/Powder Coating/SS304/SS345 | |
| WM-750*100 | 750 | 100 | ¢6 | 1000 | EG/HDG/Powder Coating/SS304/SS346 |
| WM-800*100 | 800 | 100 | ¢6 | EG/HDG/Powder Coating/SS304/SS347 | |
| WM-150*150 | 150 | 150 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS348 |
| WM-200*150 | 200 | 150 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS349 |
| WM-300*150 | 300 | 150 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS350 |
| WM-400*150 | 400 | 150 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS351 |

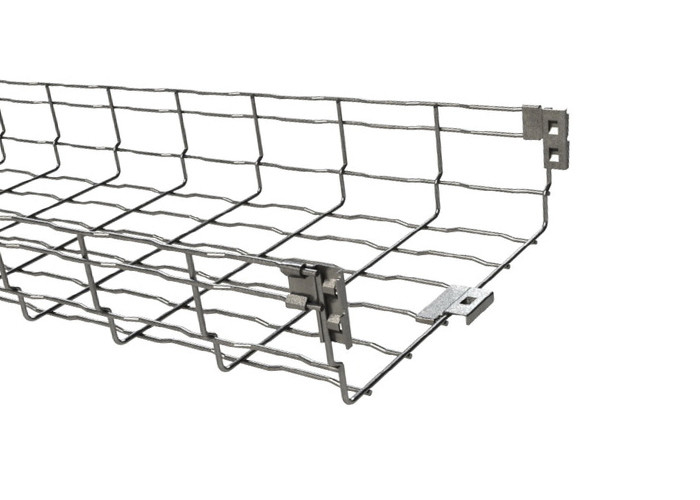

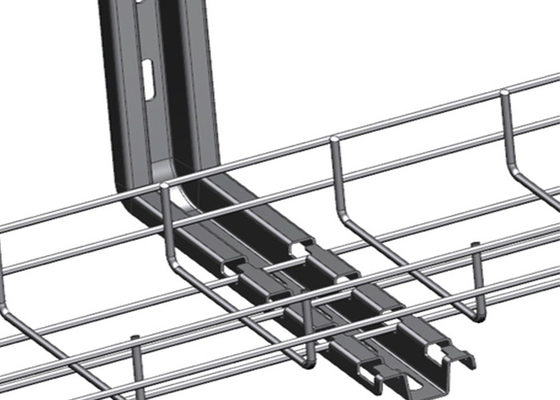

Product Show:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
