Product Details:
|
| Material: | Stainless Steel | Service: | OEM ODM |
|---|---|---|---|
| Sample: | Available | Certification: | ISO9001-2015 |
| Package: | Wooden Box | Usage: | Fire Pipe,Air Pipe |
| High Light: | NPT male Stainless Steel Flexible Joint,SS304 Stainless Steel Flexible Joint,NPT braided expansion joint |
||

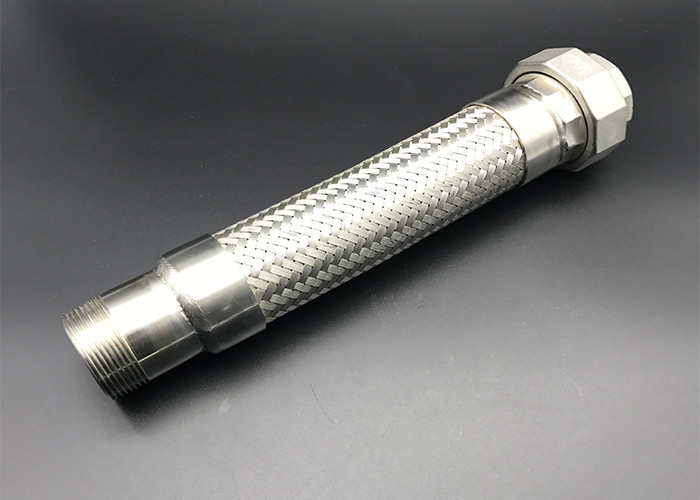

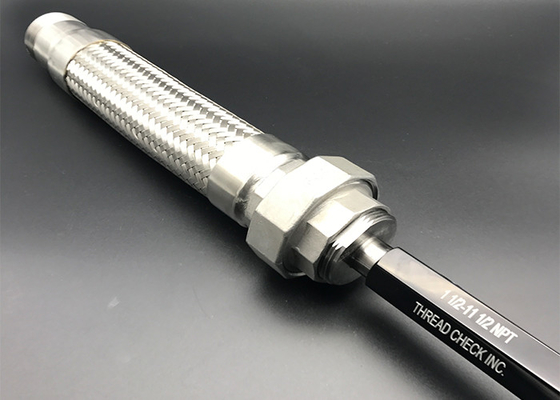

Flexible Tube NPT male *female union end SS304 16Bar
Products:Stainless Steel Flexible Joint
Thermal growth, overloading, metal fatigue, noise, excessive installation time and early maintenance problems can be significantly reduced or avoided with flexible connectors and expansion joints.
Stainless steel flexible joints series SSFJ508 are specifically designed for piping applications requiring limited absorbtion of axial and lateral movements.In order to increase the pressure resistance of the high temperature flexible hose, it is steel braided.
Once the metal hose is welded with the stainless steel braid, it can absorb mild vibrations and movements, and also act as a protective covering to the relatively thin walled hose.
Structure:
| Item | Part | Material | Remark |
| 1 | Bellows | SUS304 | SUS316/321 |
| 2 | Braids | SUS304 | |
| 3 | Thread | P.T or NPT | |
| 4 | Seal Ring | SUS304 | SUS316 |
Specification:
| Part No. |
Nominal Bore |
Total Length |
Bellows O.D. |
Max Offset |
Working Pressure |
|
| inch | mm | inch | mm | mm | kg/cm² | |
| SSFJ508-12 | 1/2 | 250 | 10 | 18.7 | 20 | 16 |
| SSFJ508-34 | 3/4 | 250 | 10 | 25.3 | 20 | 16 |
| SSFJ508-1 | 1 | 250 | 10 | 32.6 | 20 | 16 |
| SSFJ508-114 | 1-1/4 | 250 | 10 | 41.2 | 18 | 16 |
| SSFJ508-112 | 1-1/2 | 300 | 12 | 47.7 | 16 | 16 |
| SSFJ508-2 | 2 | 300 | 12 | 62 | 15 | 16 |
| SSFJ508-212 | 2-1/2 | 350 | 14 | 82 | 14 | 16 |
| SSFJ508-3 | 3 | 350 | 14 | 97 | 12 | 16 |

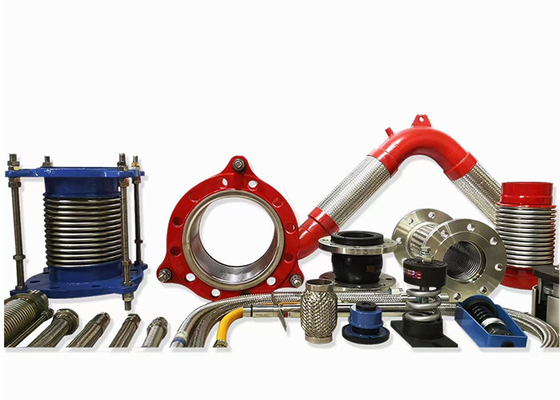

Product Show:
