Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking

I'm Online Chat Now

Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking

Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking

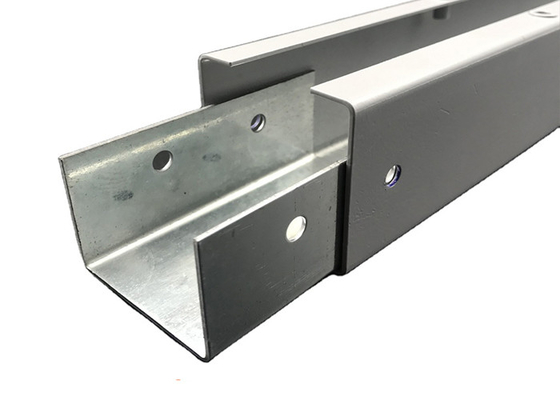

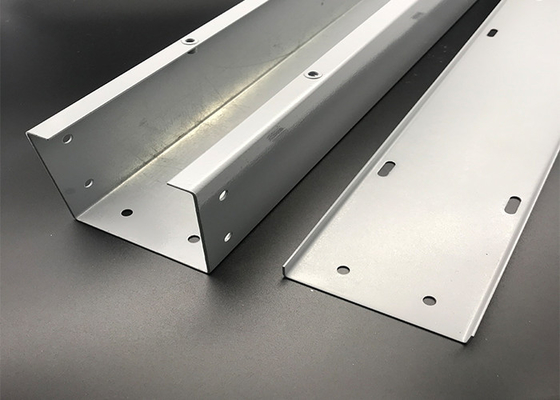

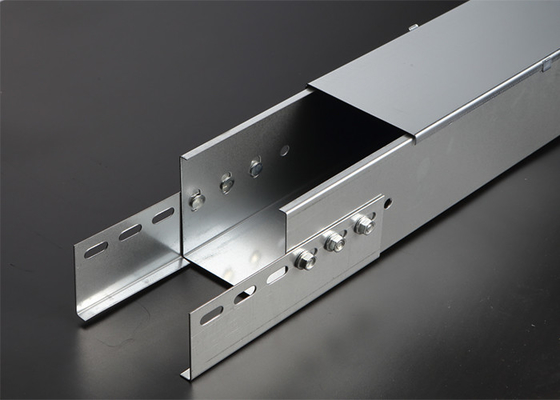

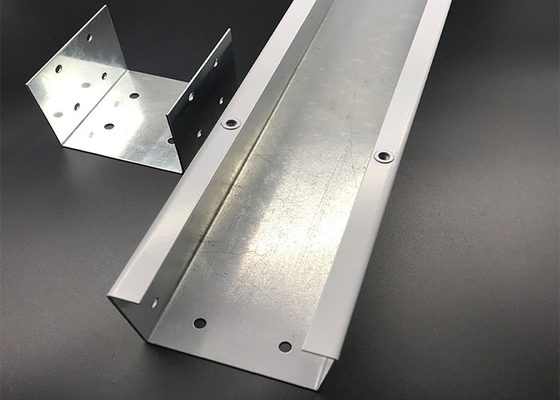

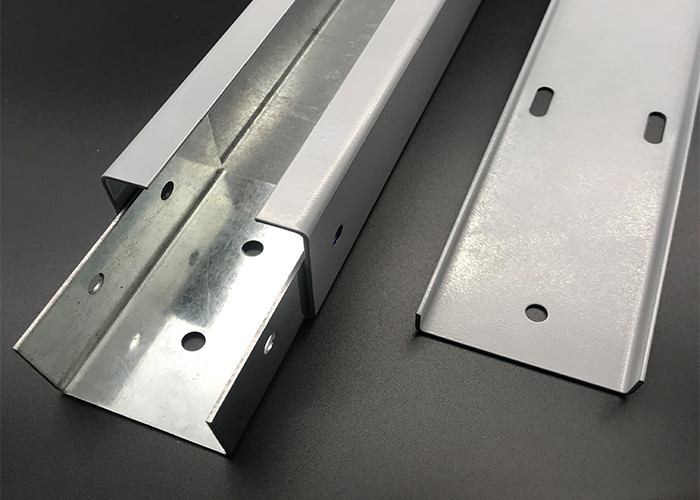

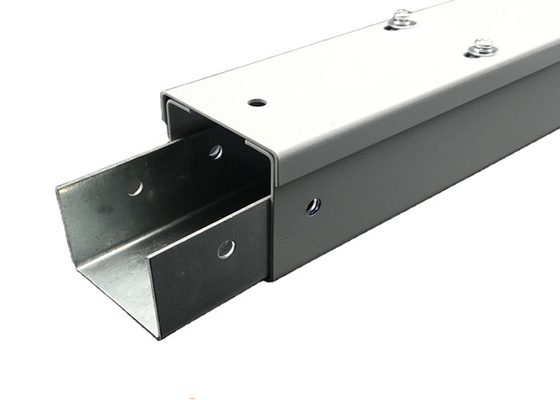

Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking

Large Image :  Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: CTK -5050
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking

Description
Material: Steel/Q235B Service: OEM ODM
Maximum Load-bearing Capacity: 216kg/meter Length: 2400mm,2500mm,3000mm
Sample: Available Certification: ISO9001-2015
Package: Carton Box+Pallet Standard: NEMA20B NEM 20C NEMA 16A
High Light:

Q235B Powder Coated Cable Trunking

,

2.4m Powder Coated Cable Trunking

,

sS316 hot dipped galvanized trunking

Stainless Steel Hot Dip Galvanized Powded Coating Cable Trunking



Products:Cable Trunking



Features:Koka Cable Trunking are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka cable trunking.

KOKA offers a comprehensive range of standard return flange surface trunking, and accessories, in single and multi-compartment.
Material standard: Hot Dip Galvanized Sheet to BS EN 10142/3 Class 3.Stainless Steel S304/316
Standard Length: 2.44M and 3M available upon request.
Cover Fixing is available in two different types:
Screw fix, using blind rivets providing smooth edge to protect cables inside the trunking.
Turnbuckle Fix (Quick Release Cam), using high tensile steel with aluminum caste bottoms, at intervals not exceeding 2 Mtrs.
Trunking Finish options, ICMS offers other alternative for material finish upon the client’s request:
Hot Dip Galvanized to BS EN 1461 (formerly BS 729).
Electrostatic powder coated, with different standard RAL colors.
Epoxy Painted.



Applications:Cable Support



Specification:

Light Duty Cable Trunking

Part No.

Width(mm)

Height(mm)

Thickness(mm)

Length(mm) Finish

CTK -5050

50 50 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316

CTK -7550

75 50 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -6060 60 60 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -10050 100 50 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -10075 100 75 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-100100 100 100 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-15075 150 75 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-150100 150 100 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -150150 150 150 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-200100 200 100 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-200150 200 150 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-200200 200 200 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-300100 300 100 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-300150 300 150 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-300200 300 200  1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316



Product Show:

Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking 0   Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking 1



Package:



Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking 2   Q235B 2.4m Powder Coated Cable Trunking SS316 Hot Dipped Galvanized Trunking 3





FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.

Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
