Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized

I'm Online Chat Now

Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized

Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized
Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized

Large Image :  Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: KK-2025
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Sent email to us
Packaging Details: Pallet Packing,customized requirement
Delivery Time: 10-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 999999/pcs/month

Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized

Description
Material: Carbon Steel/ss304/ss316/Copper/Aluminum Surface Treatment: Zinc Plated /Galvanized/HDG
Specification: 1/4" 1/2" 1-1/4" Thickness: 1.5-3.0MM
Service: OEM ODM Sample: Available
Certification: ISO9001-2015 Package: Carton Box
High Light:

Stainless Steel 316 Strut Pipe Clamps

,

1/2 in Strut Pipe Clamps

,

1/2 in EMT unistrut pipe clamps catalog



Stainless Steel 304 316 Unistrut Strut Clamp For Pipe



Products:Strut Clamp

Features: Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.
Side screws are protected against loss during assemble with the help of plastic washers

Applications:

Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
For Suspending Stationary Non-Insulated Copper Tubing Lines



Part No. Pipe Size (Inch) OD Size (Inch) OD Size (mm) Finish
EMT
KK-2025 3/8” 0.577" 14.7 EG/HDG/SS304/SS316
KK-2026 1/2” 0.706" 17.9 EG/HDG/SS304/SS316
KK-2028 3/4” 0.922" 23.4 EG/HDG/SS304/SS316
KK-2030 1” 1.163" 29.5 EG/HDG/SS304/SS316
KK-2032 1-1/4” 1.510" 38.4 EG/HDG/SS304/SS316
KK-2034 1-1/2” 1.740" 44.2 EG/HDG/SS304/SS316
KK-2038 2” 2.197" 55.8 EG/HDG/SS304/SS316

UNIVERSAL
KK-2055 3/8”   16.4 EG/HDG/SS304/SS316
KK-2056 1/2”   19.5 EG/HDG/SS304/SS316
KK-2058 3/4”   24.9 EG/HDG/SS304/SS316
KK-2060 1”   31.4 EG/HDG/SS304/SS316
KK-2062 1-1/4”   40.2 EG/HDG/SS304/SS316
KK-2064 1-1/2”   46.2 EG/HDG/SS304/SS316
KK-2068 2”   58.0 EG/HDG/SS304/SS316

RGD
KK-2125 3/8” 0.675" 18.0 EG/HDG/SS304/SS316
KK-2126 1/2” 0.840" 21.3 EG/HDG/SS304/SS316
KK-2128 3/4” 1.050" 26.7 EG/HDG/SS304/SS316
KK-2130 1” 1.315" 33.4 EG/HDG/SS304/SS316
KK-2132 1-1/4” 1.660" 44.2 EG/HDG/SS304/SS316
KK-2134 1-1/2” 1.900" 48.3 EG/HDG/SS304/SS316
KK-2138 2” 2.375" 60.3 EG/HDG/SS304/SS316
KK-2142 2-1/2” 2.875" 73.0 EG/HDG/SS304/SS316
KK-2146 3” 3.500" 88.9 EG/HDG/SS304/SS316
KK-2150 3-1/2” 4.000" 101.6 EG/HDG/SS304/SS316
KK-2154 4” 4.500" 114.3 EG/HDG/SS304/SS316
KK-2162 5” 5.563" 141.3 EG/HDG/SS304/SS316
KK-2170 6” 6.625" 168.3 EG/HDG/SS304/SS316
KK-2174 8” 8.625" 216.3 EG/HDG/SS304/SS316

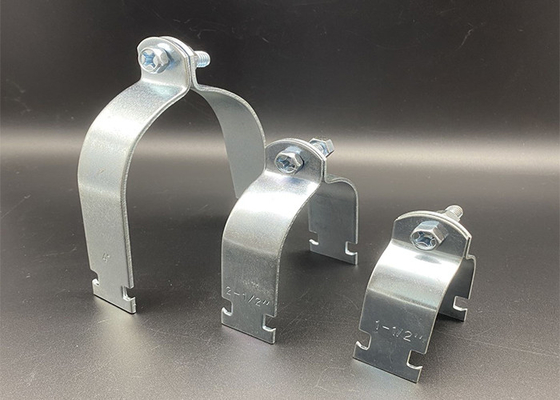

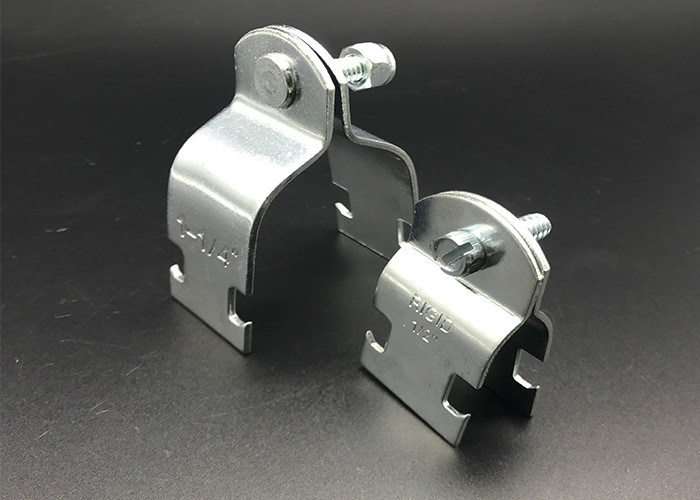

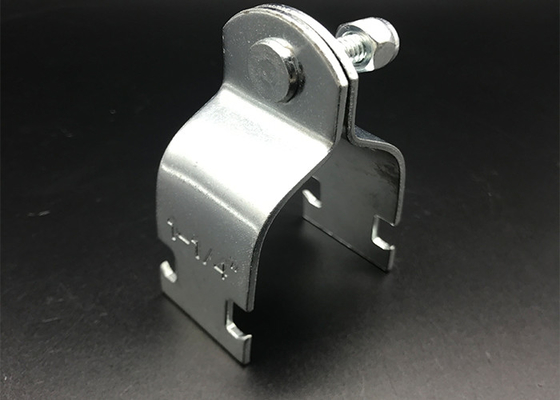

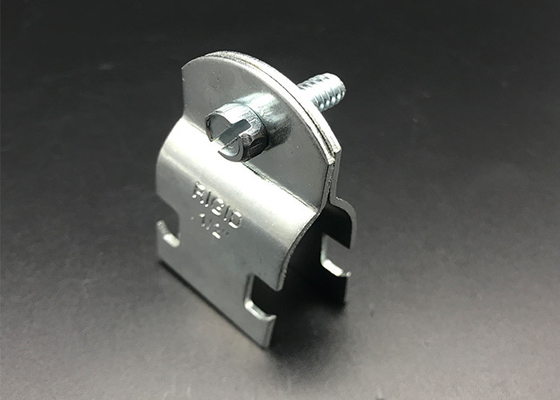

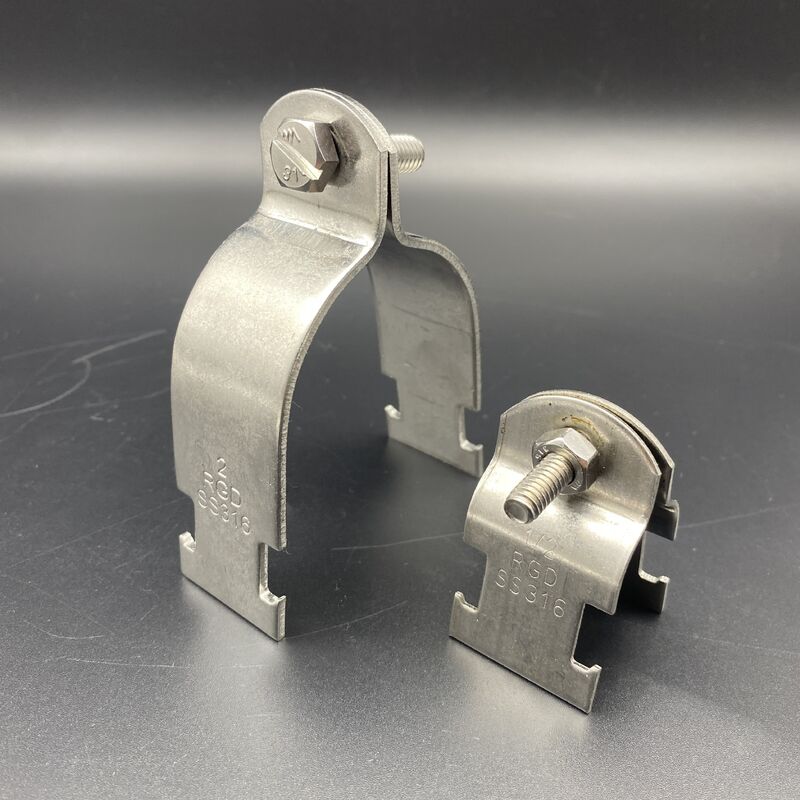

Product Show:

Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized 0 Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized 1Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized 2 Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized 3





About KOKA:

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.



Package:

Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized 4 Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized 5

Stainless Steel 316 Strut Pipe Clamps 1/2 In EMT Zinc Plated Galvanized 6

FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
