Product Details:
|
Material: | Stainless Steel, Metal, Carbon Steel/ss304/ss316/copper | Surface Treatment: | Zinc Plated /Galvanized/HDG |
---|---|---|---|
Usage: | Pipe Clamp | Thickness: | 1.5-3.0MM |
Service: | OEM ODM | Sample: | Available |
Certification: | ISO9001-2015 | Package: | Carton Box |

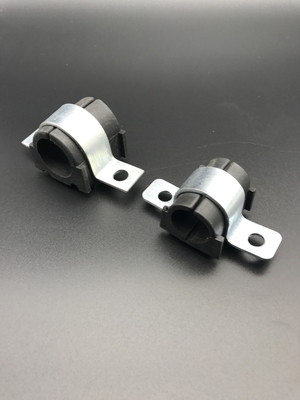

Custom Size U Type Galvanized Steel Pipe Saddle Clamps
Products: Saddle Clamp
Features:
Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
For Suspending Stationary Non-Insulated Copper Tubing Lines
Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.
Side screws are protected against loss during assemble with the help of plastic washers
Application:Brace pipe, tubing, and conduit directly against the mounting surface.
Certification:
Part No. | Pipe Size OD(inch) | “L1” | “L2” | WxT(mm) | Finish |
KKSC-021 | 21.3 (1/2”) | 75 | 115 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-027 | 26.9 (3/4”) | 81 | 121 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-034 | 33.7 (1”) | 88 | 128 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-042 | 42.4 (1-1/4”) | 97 | 137 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-048 | 48.3 (1-1/2”) | 102 | 142 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-051 | 51 | 105 | 145 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-60 | 60.3 (2”) | 114 | 154 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-076 | 76.1 (2-1/2”) | 130 | 170 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-089 | 88.9 (3”) | 143 | 183 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-102 | 102 | 156 | 196 | 40x5 | EG/HDG/SS304/SS316 |
KKSC-114 | 114.3 (4”) | 170 | 210 | 40x6 | EG/HDG/SS304/SS316 |
KKSC-140 | 139.7 (5”) | 196 | 236 | 40x6 | EG/HDG/SS304/SS316 |
KKSC-152 | 152 | 208 | 248 | 50x6 | EG/HDG/SS304/SS316 |
KKSC-165 | 165 | 221 | 261 | 50x6 | EG/HDG/SS304/SS316 |
KKSC-168 | 168.3 (6”) | 224 | 264 | 50x6 | EG/HDG/SS304/SS316 |
KKSC-194 | 193.7 (7-1/2”) | 259 | 299 | 50x6 | EG/HDG/SS304/SS316 |
KKSC-219 | 219.1 (8”) | 275 | 315 | 50x6 | EG/HDG/SS304/SS316 |
Product Show:
Package:
