Product Details:
|
| Material: | Q235,Stainless Steel 304/316 | Surface Finished: | Pre-galvanized,Hot Dip Galvanized,Powder Coating |
|---|---|---|---|
| Specification: | 41*41 41*21 41*62 41*82 | Length: | 1-6M ,Any Length Available |
| Service: | ODM/OEM | Sample: | Available |
| Package: | Pallet | Certification: | ISO9001-2015 |
| High Light: | Q235 slotted c channel,2.0mm Double slotted c channel,2.0mm stainless steel unistrut channel |
||

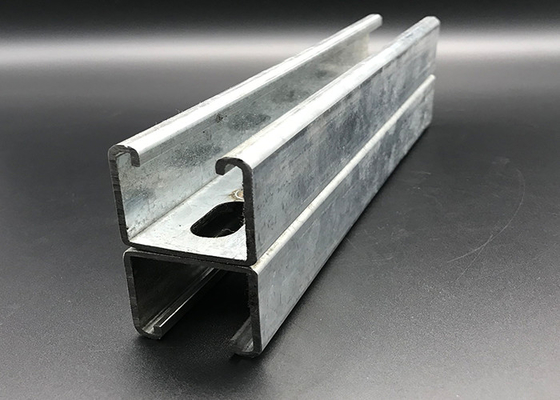

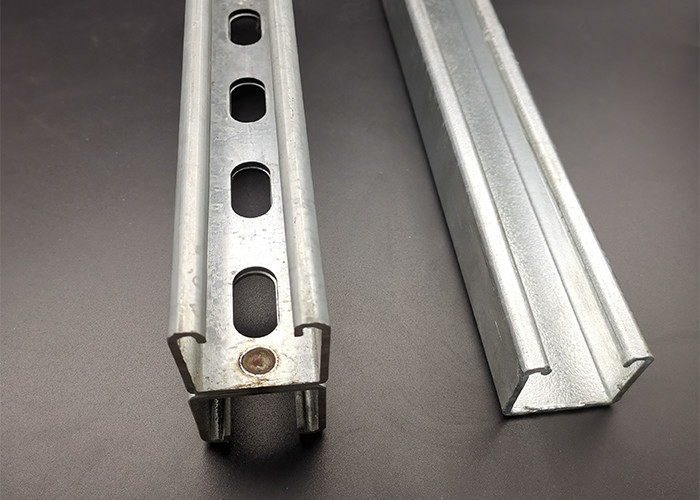

Slotted Double Strut Unistrut C Channel Stainless Steel Hot Dip Galvanized
Products : Back To Back Strut Channel
Pre-galvanized(GI)strut channel , hot dip galvanized(HDG) strut channel , stainless steel 304 (ss304) strut channel ,stainless steel 316 (ss316)strut channel , standard length : 3m/5.8m/6m,all length available,slotted strut channel and solid strut channel also available.
KOKA strut channel have four kinds of surface treatment:
FINISHED: PG – Pre galvanized as per BS EN 10142 & BS 4678
HDG – Hot dip galvanized as per BS EN 1461-99(BS729) and CEI 7-6
SS – Stainless steel GRADE 304L/316L complying with BS EN 10088-2/2001
PC – Powder coated in RAL color (JG/T3045)
Anti-corrosion and fire retardant:different finish according to your request.
Adjustable to different environment:accessories like Risers,T-junction,Crosses can be combined with cable trays,pipe support,solar mounting to different environment.
Strut channel is usually formed from metal sheet, folded over into an open channel shape with inwards-curving lips to provide additional stiffness and as a location to mount interconnecting components. Strut usually has holes of some sort in the base, to facilitate interconnection or fastening strut to underlying building structures.
Features:
1) easy & flexible in installation, low cost
2) samples & catalogs are free
3) all size are available
Applications:
Koka strut channel is commonly used for trapeze supports, cable tray supports, seismic bracing, ceiling grids, pipe support, conduit, duct ,racks,solar mounting,HAVC system and other general framing.
Specifications:
Koka strut is available in Pre-Galvanized (PG), Hot-Dip Galvanized (HDG), Powed Coating(PC), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS or ST) and Aluminum (EA). Solid. Punched holes are also available for ease of installation.
Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. It is available to tighten nuts; bolts inside, especially for sockets.
| Part No. | Size | Thickness(mm) | Length(m) | Finish |
| KK-4121 | 41x21 (1-5/8x13/16) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4141 | 41x41 (1-5/8x1-5/8) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4162 | 41x62 (1-5/8x2-7/16) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4182 | 41x82 (1-5/8x3-1/4) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4125 | 41x25 (1-5/8x1) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
Product Show:
Package:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
