Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304

I'm Online Chat Now

Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304

Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304
Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304 Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304 Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304

Large Image :  Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: KK-4121
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Sent Email to us
Packaging Details: Pallet Packing,customized requirement
Delivery Time: 10-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 999999/pcs/month

Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304

Description
Material: Q235,Stainless Steel 304/316 Surface Finished: Pre-galvanized,Hot Dip Galvanized,Powder Coating
Specification: 41*41 41*21 41*62 41*82 Thickness: 1.5-3.0MM,any Thickness Available
Length: 1-6M ,Any Length Available Service: OEM ODM
Sample: Available Standard: BS/ASTM
High Light:

Cold formed galvanized Metal Strut Channel

,

2.5mm Metal Strut Channel

,

Cold Formed galvanized strut channel

Cold Formed Galvanized C Profile Steel Strut Channel

Products : Strut Channel

Strut channel is usually formed from metal sheet, folded over into an open channel shape with inwards-curving lips to provide additional stiffness and as a location to mount interconnecting components. Strut usually has holes of some sort in the base, to facilitate interconnection or fastening strut to underlying building structures.

Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. It is available to tighten nuts; bolts inside, especially for sockets.



Features:

1) easy & flexible in installation, low cost
2) samples & catalogs are free
3) all size are available



Applications:

Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. It is available to tighten nuts; bolts inside, especially for sockets.



Specifications:

Specification: 41x41,41x21,41x62,41x82
Thickness: 1.5mm, 2.0mm, 2.5mm
Length:  2000mm , 3000mm, 6000mm or customization
Material: Q235 carbon steel/Stainless steel 304/Stainless steel 316
Surface finish:Hot Dip Galvanized/Electro Zinc/Powder coated
Part No. Size Thickness(mm) Length(m) Finish
KK-4121 41x21 (1-5/8x13/16) 1.5/2.0/2.5 2.4/3/5.8/6 PG/HDG/PC/SS304/SS316
KK-4141 41x41 (1-5/8x1-5/8) 1.5/2.0/2.5 2.4/3/5.8/6 PG/HDG/PC/SS304/SS316
KK-4162 41x62 (1-5/8x2-7/16) 1.5/2.0/2.5 2.4/3/5.8/6 PG/HDG/PC/SS304/SS316
KK-4182 41x82 (1-5/8x3-1/4) 1.5/2.0/2.5 2.4/3/5.8/6 PG/HDG/PC/SS304/SS316
KK-4125 41x25 (1-5/8x1) 1.5/2.0/2.5 2.4/3/5.8/6 PG/HDG/PC/SS304/SS316

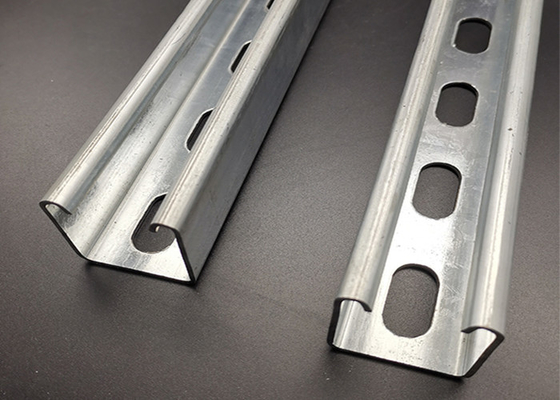

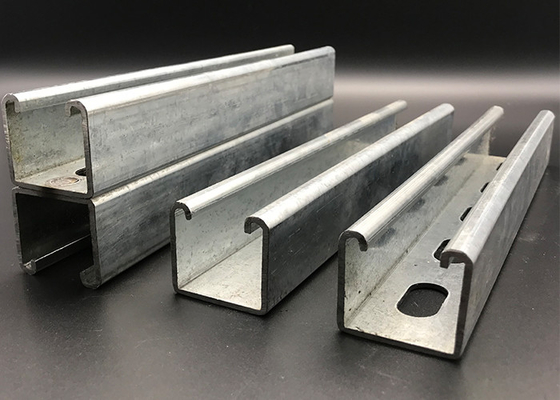

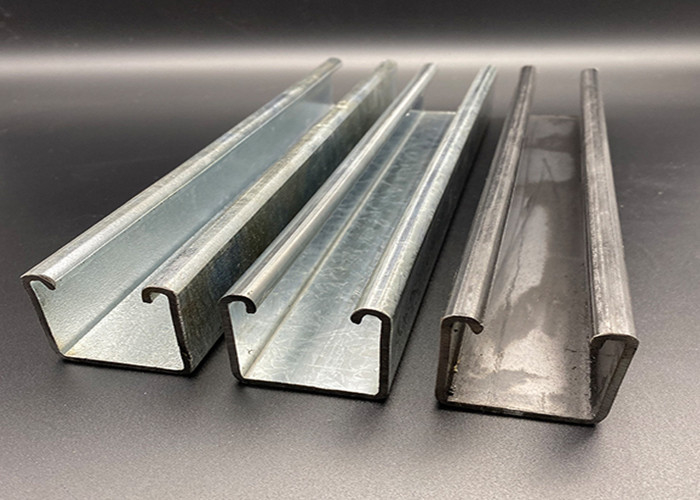

Product Show:

Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304 0  Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304 1



Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304 2

Package:

Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304 3  Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304 4

Cold Formed Galvanized Metal Strut Channel 2.5mm Stainless Steel 304 5

FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2: what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
