Product Details:
|
| Material: | Q235,Stainless Steel 304/316 | Surface Treatment: | Zinc Plated /Galvanized/HDG/Copper Plate |
|---|---|---|---|
| Service: | ODM/OEM | Color: | White/Yellow Zinc/Gold Zinc |
| Cushion Material: | TPE | Usage: | HVAC |
| Package: | Carton Box | Certification: | ISO9001-2015 |
| High Light: | 1/2 in stainless steel cushion clamps,ISO9001 stainless steel cushion clamps,1/2 in cushioned cable clamp |
||
Cushion Clamp For Stainless Steel Unistrut Strut Channel
Products:Cushion Clamp
Cushion clamp Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise and preventing galvanic corrosion.Cushion clamp fits any standard 1-5/8 wide channel.
Features:
1) Available in stainless steel on special order.
2) Other sizes on special order are available.
3) Clamps are manufactured from cold-rolled low-carbon steel with galvanized finish.
Applications:
Cushion clamps are typically used in pneumatic refrigeration, HVAC, and some low pressure hydraulic lines. cushion clamps also eliminate metal to metal contact between the fluid lines and the support hardware. Standard material for the hardware is a clear trivalent zinc-plated steel, with options for both 304 and 316 grades stainless steel. Additional special options include aluminum and powder coating.
Specifications:
| Part No. | Tubing Size | Pipe Size | Pipe OD (inch) | Finish |
| CC-1/4 | 1/4” | - | 0.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/8 | 3/8” | - | 0.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/2 | 1/2” | - | 0.5 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/4-P | - | 1/4” | 0.54 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-5/8 | 5/8” | - | 0.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/8-P | - | 3/8” | 0.67 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/4 | 3/4” | - | 0.75 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1/2-P | - | 1/2” | 0.84 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-7/8 | 7/8” | - | 0.87 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 | 1” | - | 1.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3/4-P | - | 3/4” | 1.05 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/8 | 1-1/8” | - | 1.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/4 | 1-1/4” | - | 1.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1-P | - | 1” | 1.31 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 3/8 | 1-3/8” | - | 1.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/2 | 1-1/2” | - | 1.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 5/8 | 1-5/8” | - | 1.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 1/4-P | - | 1-1/4” | 1.66 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 3/4 | 1-3/4” | - | 1.75 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-1 7/8 | 1-7/8” | 1-1/2” | 1.90 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 | 2” | - | 2.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/8 | 2-1/8” | - | 2.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/4 | 2-1/4” | - | 2.25 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 3/8 | 2-3/8” | 2” | 2.37 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 1/2 | 2-1/2” | - | 2.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 5/8 | 2-5/8” | - | 2.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-2 7/8 | 2-7/8” | 2-1/2” | 2.87 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 | 3” | - | 3.00 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 1/8 | 3-1/8” | - | 3.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 1/2 | 3-1/2” | 3” | 3.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-3 5/8 | 3-5/8” | - | 3.62 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-4 1/8 | 4-1/8” | - | 4.12 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-4 1/2 | 4-1/2” | 4” | 4.50 | GOLD ZINC/EG/HDG/SS304/SS316 |
| CC-6 | 6” | - | 6.00 | GOLD ZINC/EG/HDG/SS304/SS316 |

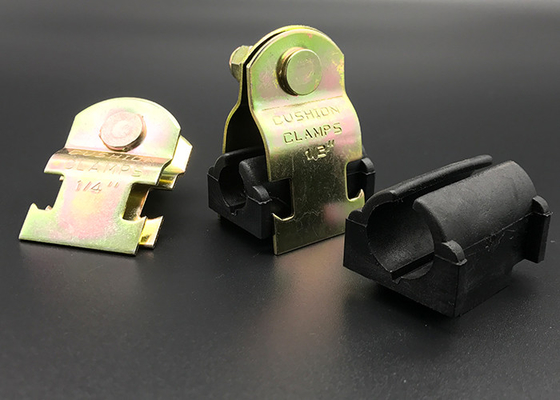

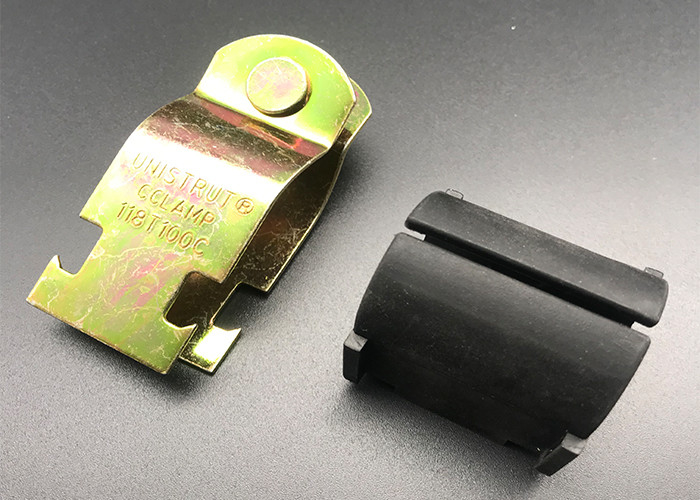

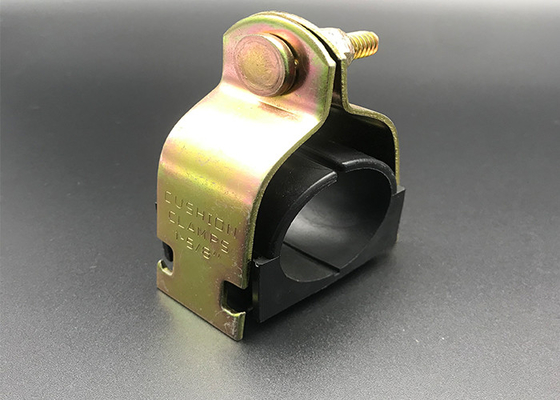

Product Show:
Package:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
