Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp

I'm Online Chat Now

Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp

Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp
Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp

Large Image :  Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: KKPC012
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Sent email to us
Packaging Details: Pallet Packing,customized requirement
Delivery Time: 10-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 999999/pcs/month

Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp

Description
Material: Carbon Steel/ss304/ss316/Copper/Aluminum Surface Treatment: Zinc Plated /Galvanized/HDG
Usage: Pipe Clamp Thickness: 1.5-3.0MM
Service: OEM ODM Sample: Available
Certification: ISO9001-2015 Package: Carton Box
Highlight:

Zinc Plated heavy duty tube clamp

,

Epdm Rubber heavy duty tube clamp

,

DIN 4109 pipe rubber clamp

Galvanized Heavy Duty Pipe Clamp With Epdm Rubber



Products:Pipe Clamp With EPDM



Features:

High strength due to double reinforcing ribs
Noise reduction according to DIN EN ISO 3822-1
Compliant for sound insulation design according to DIN 4109
Multifunction screw with hexagonal combination head (slot and crosshead)
Temperature resistance: -50°C to +110 °C, suitable for hot water and heating pipes



Application:

Metal pipes
PVC pipes
Drainage pipes
Steel pipes



Specification:

Part No. Pipe Size ØD(mm) Nut Size Finish
KKPC012 1/4” 12-16 M8+M10 EG/HDG/SS304/SS316
KKPC015 3/8” 15-19 M8+M10 EG/HDG/SS304/SS316
KKPC021 1/2” 20-25 M8+M10 EG/HDG/SS304/SS316
KKPC026 3/4” 26-30 M8+M10 EG/HDG/SS304/SS316
KKPC032 1” 32-36 M8+M10 EG/HDG/SS304/SS316
KKPC040 1-1/4” 38-43 M8+M10 EG/HDG/SS304/SS316
KKPC044 1-1/2” 47-51 M8+M10 EG/HDG/SS304/SS316
KKPC050   50-56 M8+M10 EG/HDG/SS304/SS316
KKPC057 2” 60-64 M8+M10 EG/HDG/SS304/SS316
KKPC063   63-67 M8+M10 EG/HDG/SS304/SS316
KKPC070   70-73 M8+M10 EG/HDG/SS304/SS316
KKPC074 2-1/2” 75-80 M8+M10 EG/HDG/SS304/SS316
KKPC083 3” 87-92 M8+M10 EG/HDG/SS304/SS316
KKPC101   101-106 M8+M10 EG/HDG/SS304/SS316
KKPC108 4” 107-112 M8+M10 EG/HDG/SS304/SS316
KKPC125   125 M8+M10 EG/HDG/SS304/SS316
KKPC131   131-135 M8+M10 EG/HDG/SS304/SS316
KKPC136   136-139 M8+M10 EG/HDG/SS304/SS316
KKPC140 5” 125-130 M8+M10 EG/HDG/SS304/SS316
KKPC159   159-163 M8+M10 EG/HDG/SS304/SS316
KKPC165 6” 159-166 M8+M10 EG/HDG/SS304/SS316
KKPC193   193-200 M8+M10 EG/HDG/SS304/SS316
KKPC210   210-212 M8+M10 EG/HDG/SS304/SS316
KKPC216 8” 200-212 M8+M10 EG/HDG/SS304/SS316
KKPC225   225 M8+M10 EG/HDG/SS304/SS316
KKPC250   250 M8+M10 EG/HDG/SS304/SS316
KKPC274 10” 248-252 M8+M10 EG/HDG/SS304/SS316
KKPC315   315 M8+M10 EG/HDG/SS304/SS316



Product Show:

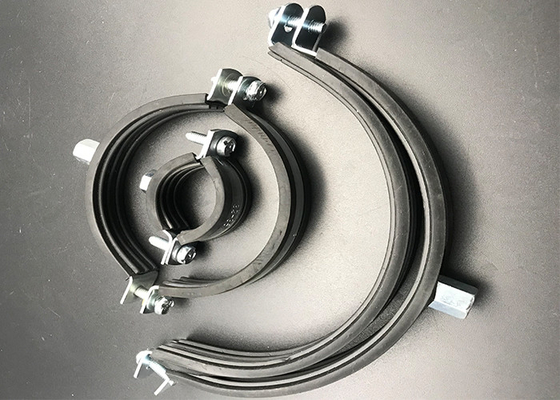

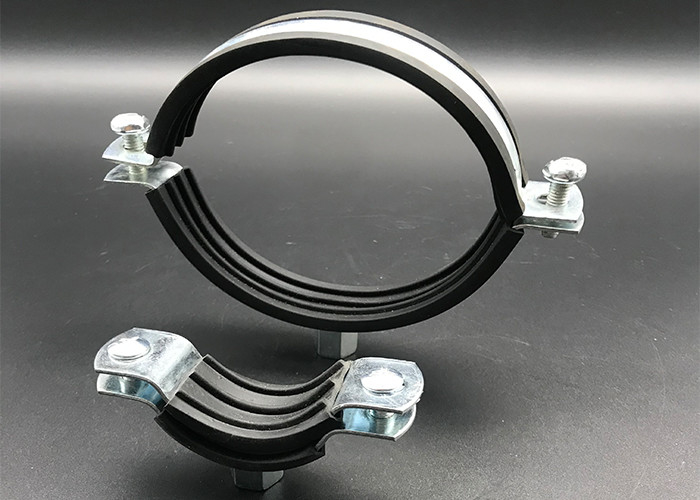

Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp 0  Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp 1



Package:

Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp 2  Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp 3

Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp 4

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and HVAC systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.

KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.

KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.

KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.

KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.

Zinc Plated Heavy Duty Tube Clamp Epdm Rubber DIN 4109 Pipe Rubber Clamp 5



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2: what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
