Product Details:
|
| Material: | Carbon Steel/ss304/ss316/Copper/Aluminum | Surface Treatment: | Zinc Plated /Galvanized/HDG |
|---|---|---|---|
| Usage: | Pipe Clamp | Thickness: | 1.5-3.0MM |
| Service: | OEM ODM | Sample: | Available |
| Certification: | ISO9001-2015 | Package: | Carton Box |
| High Light: | M10 Strut Pipe Clamps,EPDM Strut Pipe Clamps,M10 Rubber Lined Pipe Clamp |
||

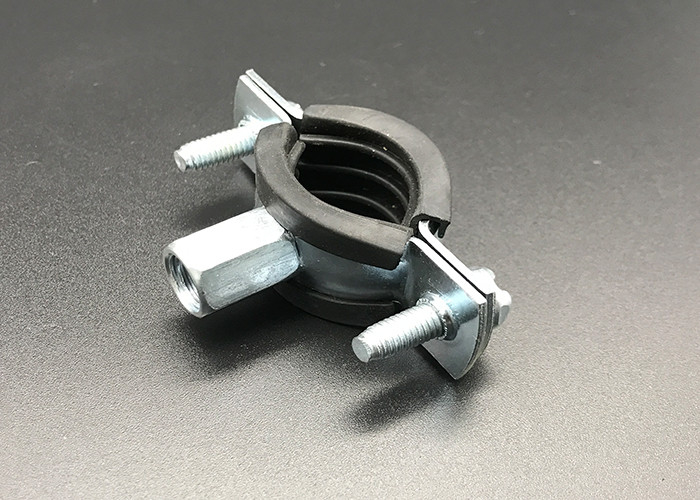

Heavy Duty M8 M10 EPDM Rubber Lined Pipe Clamp
Products: EPDM pipe clamp
The EPDM rubber clamps M8+M10 has a connecting nut with a special resistance due his cross welding. The two multifunction screw with hexagonal combination head (slot and crosshead) are impossible to loose.
The clamp incorporates double reinforcement ribs and includes ageing-resistant silicon rubber lining suitable for high temperature. Due to its temperature resistance from -50°C to +110°C the clamp RI is suitable for mounting hot water and heating pipes.
Certified with the RoHS label, does not contain hazardous substances.
Due to the M8 and M10 connecting thread the clamp L can be screwed easily onto threaded rods or metric screws with M8 respectively M10 thread.
More threaded part in the closing profile to guarantee a better grip and wider profile from diameter Ø75 mm. Made of high quality steel.
Features:
Unique Fast Release Structure.
Suitable for Both Indoor and Outdoor Applications.
Material: Galvanized Steel/EPDM Rubber
Anti-Corrosion, Heat Resistance.
Specification:
| Part No. | Pipe Size | ØD(mm) | Nut Size | Finish |
| KKPC012 | 1/4” | 12-16 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC015 | 3/8” | 15-19 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC021 | 1/2” | 20-25 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC026 | 3/4” | 26-30 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC032 | 1” | 32-36 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC040 | 1-1/4” | 38-43 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC044 | 1-1/2” | 47-51 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC050 | 50-56 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC057 | 2” | 60-64 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC063 | 63-67 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC070 | 70-73 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC074 | 2-1/2” | 75-80 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC083 | 3” | 87-92 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC101 | 101-106 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC108 | 4” | 107-112 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC125 | 125 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC131 | 131-135 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC136 | 136-139 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC140 | 5” | 125-130 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC159 | 159-163 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC165 | 6” | 159-166 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC193 | 193-200 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC210 | 210-212 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC216 | 8” | 200-212 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC225 | 225 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC250 | 250 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC274 | 10” | 248-252 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC315 | 315 | M8+M10 | EG/HDG/SS304/SS316 |

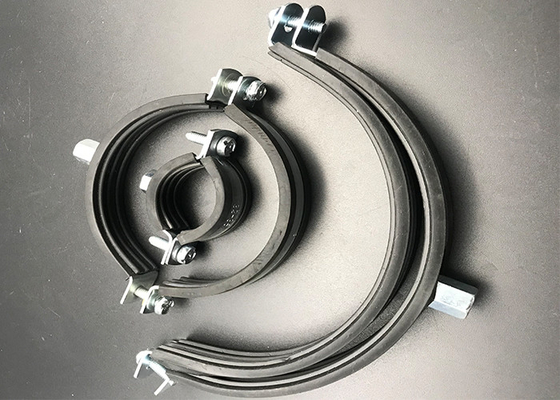

Product Show:
Package:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
