Product Details:
|
| Material: | Steel/Q235B | Service: | OEM ODM |
|---|---|---|---|
| Maximum Load-bearing Capacity: | 216kg/meter | Length: | 2400mm,2500mm,3000mm |
| Sample: | Available | Certification: | ISO9001-2015 |
| Package: | Carton Box+Pallet | Standard: | NEMA20B NEM 20C NEMA 16A |
| High Light: | Q235B stainless steel cable trunking,Ss316 stainless steel cable trunking,Ss316 electrical trunking metal |
||

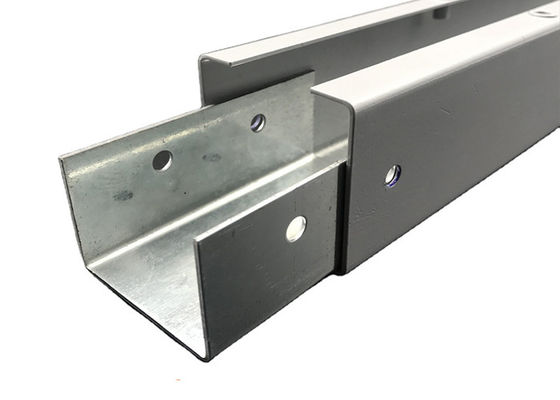

Powder Coated Stainless Steel Ss316 Cable Trunking
Products:Cable Trunking
Features:Koka Cable Trunking are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka cable trunking.
Applications:Cable Support
cable tray :use for arranging power supply cable with the use of cable tie to look neat and for easy tracing if there is fault on the cable .
cable trunk :is use for arranging contorl cables to look neat with the use of cable tie and for ease identifying.
Parameter List:
|
Light Duty Cable Trunking |
|||||
|
Part No. |
Width(mm) |
Height(mm) |
Thickness(mm) |
Length(mm) | Finish |
|
CTK -5050 |
50 | 50 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
|
CTK -7550 |
75 | 50 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -6060 | 60 | 60 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -10050 | 100 | 50 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -10075 | 100 | 75 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-100100 | 100 | 100 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-15075 | 150 | 75 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-150100 | 150 | 100 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -150150 | 150 | 150 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-200100 | 200 | 100 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-200150 | 200 | 150 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-200200 | 200 | 200 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-300100 | 300 | 100 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-300150 | 300 | 150 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-300200 | 300 | 200 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
Product Show:
About KOKA:
Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .
Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.
KOKA is the ideal solution for flexible support system available.
KOKA takes pride in building long term partnerships with clients that ensure a superior service and provider highest quality products.
KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.
KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.
KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.
KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.
