Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating

I'm Online Chat Now

Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating

Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating
Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating

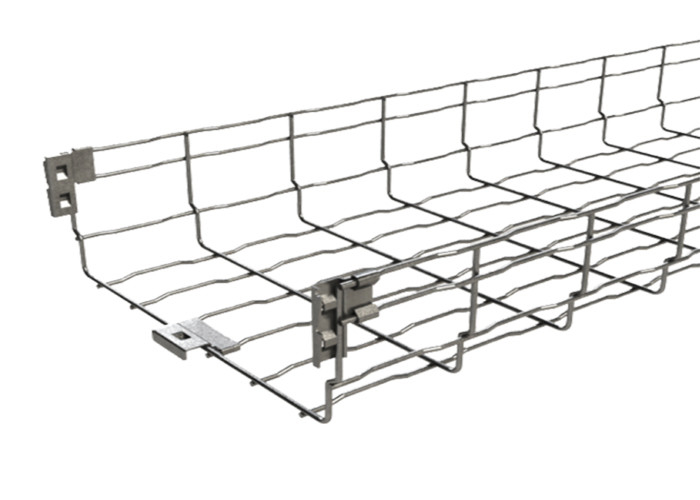

Large Image :  Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: WM-5025
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating

Description
Material: Steel/Q235B Service: OEM ODM
Maximum Load-bearing Capacity: 198Kg Length: 2400mm,3000mm
Type: Wire Mesh Certification: ISO9001-2015
Sample: Available Package: Carton Box+Pallet
High Light:

Ss304 Wire Mesh Cable Tray

,

100mmw Wire Mesh Cable Tray

,

100mmw stainless steel basket tray

Ss304 Stainless Steel Wire Basket Mesh Cable Tray



Products:Wire Mesh Cable Tray



Applications:Cable Support

The zinc plating on these tray systems offers good corrosion resistance. Cut, bend, and connect the wire mesh trays to route cable and hose in configurations such as curves, slopes, and tees. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
Use bolt cutters to cut trays to the size you need. The maximum capacity is based on mounting brackets spaced every 6 feet.
Straight connectors join two trays in a straight line.
Clamp connectors can be used to join two trays after you have bent them. You can also use these connectors to join trays in a straight line.
Drop outs relieve stress on the cable and hose as it exits the tray. Plastic drop outs can be attached to trays without bending or removing any wires.

KOKA wire mesh basket is ideal for commercial and data center cable management, providing a flexible means of adapting your tray to fit your job-site application.
Easily modified for both horizontal and vertical transitions
Available in a variety of finishes to meet environmental and aesthetic requirements



Specification :

Part No.

Width

(mm)

Height

(mm)

Steel ¢D Length(mm) Finish
Wire Mesh Cable Tray
WM-50*25 50 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS316
WM-100*25 100 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS317
WM-150*25 150 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS318
WM-200*25 200 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS319
WM-300*25 300 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS320
WM-100*35 100 35 ¢4 1000 EG/HDG/Powder Coating/SS304/SS321
WM-150*35 150 35 ¢4 1000 EG/HDG/Powder Coating/SS304/SS322
WM-200*35 200 35 ¢4 1000 EG/HDG/Powder Coating/SS304/SS323
WM-300*35 300 35 ¢4 1000 EG/HDG/Powder Coating/SS304/SS324
WM-54*54 54 54 ¢4 1000 EG/HDG/Powder Coating/SS304/SS325
WM-100*54 100 54 ¢4 1000 EG/HDG/Powder Coating/SS304/SS326
WM-150*54 150 54 ¢4 1000 EG/HDG/Powder Coating/SS304/SS327
WM-200*54 200 54 ¢4 1000 EG/HDG/Powder Coating/SS304/SS328
WM-300*54 300 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS329
WM-400*54 400 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS330
WM-450*54 450 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS331
WM-500*54 500 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS332
WM-600*54 600 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS333
WM-700*54 700 54 ¢6   EG/HDG/Powder Coating/SS304/SS334
WM-750*54 750 54 ¢6 1000 EG/HDG/Powder Coating/SS304/SS335
WM-800*54 800 54 ¢6 1000 EG/HDG/Powder Coating/SS304/SS336
WM-100*100 100 100 ¢4 1000 EG/HDG/Powder Coating/SS304/SS337
WM-150*100 150 100 ¢4 1000 EG/HDG/Powder Coating/SS304/SS338
WM-200*100 200 100 ¢4 1000 EG/HDG/Powder Coating/SS304/SS339
WM-300*100 300 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS340
WM-400*100 400 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS341
WM-450*100 450 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS342
WM-500*100 500 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS343
WM-600*100 600 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS344
WM-700*100 700 100 ¢6   EG/HDG/Powder Coating/SS304/SS345
WM-750*100 750 100 ¢6 1000 EG/HDG/Powder Coating/SS304/SS346
WM-800*100 800 100 ¢6   EG/HDG/Powder Coating/SS304/SS347
WM-150*150 150 150 ¢4 1000 EG/HDG/Powder Coating/SS304/SS348
WM-200*150 200 150 ¢5 1000 EG/HDG/Powder Coating/SS304/SS349
WM-300*150 300 150 ¢5 1000 EG/HDG/Powder Coating/SS304/SS350
WM-400*150 400 150 ¢5 1000 EG/HDG/Powder Coating/SS304/SS351

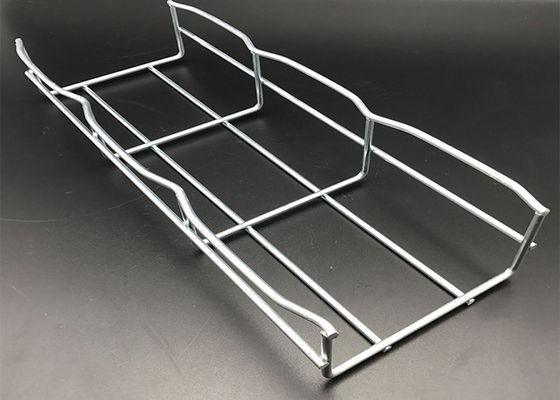

Product Show:

Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating 0



Package:



Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating 1 Ss304 Wire Mesh Cable Tray 100mm Stainless Steel Basket Tray Powder Coating 2



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.

Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
