EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough

I'm Online Chat Now

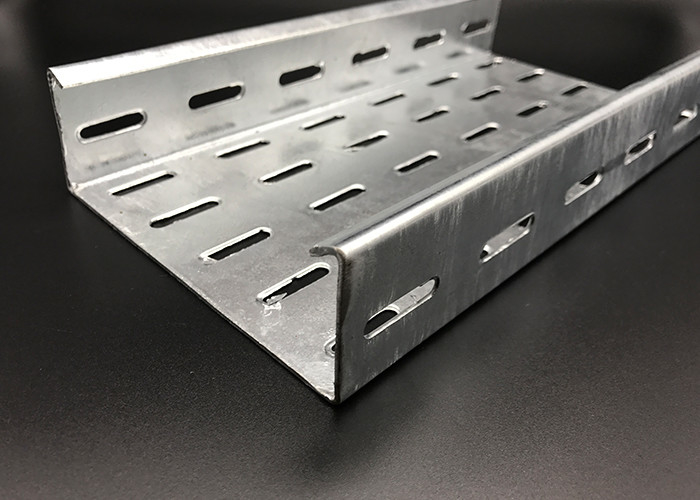

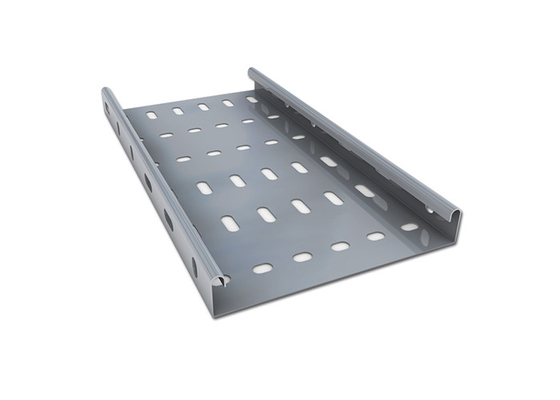

EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough

EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough
EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough

Large Image :  EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: CT-L-50
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough

Description
Material: Steel/Q235B Service: OEM ODM
Maximum Load-bearing Capacity: 216kg/meter Length: 2400mm,3000mm,6000mm
Type: Ventilated Or Perforated Trough Certification: ISO9001-2015
Sample: Available Package: Carton Box+Pallet
Highlight:

EG Galvanized Perforated Cable Tray

,

150mm Perforated Cable Tray

,

Galvanized wireway cable tray

Galvanized Perforated Electrical Cable Tray



Products:Cable Tray

Metal perforated Cable Trays provides stronger support for wire cables than common welded wire mesh cable trays and wire ways. KOKA offers perforated cable tray in B line, ladder bridge trays and channel cable trays. The solid metal cable trays are made from punched perforated stainless steel or galvanized carbon steel plates. The holes can be round, square or triangle for ventilation, in various opening sizes and plate thickness. Stainless steel perforated cable trays are rust resistant and suitable for outdoor telecommunication uses. Galvanized steel perforated cable trays offered by KOKA Perforated Metal Factory have two types, one is electro galvanized cable trays for indoor uses and the other is hot dipped galvanized steel cable trays with thick zinc plating and good corrosion resistance. The hot dipped galvanized perforated cable trays are mostly for outdoor cable protection.



Features:

1.Easy to use
2.Durability
3.Light weight
4.Saving cost and install time

Koka Cable Tray are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed,they are case hardened,assuring positive biting action into the inturned edge of the Koka cable tray.

In the electrical wiring of buildings, a cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.

Applications:Cable Support



Parameter List:

Light Duty Cable Tray

Part No.

Width(mm)

Height(mm)

Thickness(mm)

Length(mm) Finish

CT-L-50

50 12/25 1.2 2400/3000 EG/HDG/Powder Coating/SS304/SS316

CT-L-100

100 12/25 1.2 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-L-150 150 12/25 1.2 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-L-200 200 12/25 1.2 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-L-250 250 12/25 1.2 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-L-300 300 12/25 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-L-400 400 12/25 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-L-500 500 12/25 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-L-600 600 12/25 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-L-700 700 12/25 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
Medium Duty Cable Tray
Part No. Width(mm)

Height(mm)

Thickness(mm)

Length(mm) Finish
CT-M-50 50 50 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-M-100 100 50 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-M-150 150 50 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-M-200 200 50 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-M-250 250 50 1.5 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-M-300 300 50 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-M-400 400 50 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-M-500 500 50 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-M-600 600 50 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-M-700 700 50 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
Heavy Duty Cable Tray
Part No. Width(mm)

Height(mm)

Thickness(mm)

Finish Finish
CT-H-50 50 100 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-H-100 100 100 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-H-150 150 100 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-H-200 200 100 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-H-250 250 100 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-H-300 300 100  2.0  2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-H-400 400 100 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-H-500 500 100 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-H-600 600 100 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316
CT-H-700 700 100 2.0 2400/3000 EG/HDG/Powder Coating/SS304/SS316



Product Show:

EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough 0EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough 1

EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough 2EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough 3

Package:



EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough 4   EG Galvanized Perforated Cable Tray Wireway 150mm Ventilated Trough 5



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.

Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
