Product Details:
|
| Material: | Steel/Q235B | Service: | OEM ODM |
|---|---|---|---|
| Maximum Load-bearing Capacity: | 216kg/meter | Length: | 2400mm,2500mm,3000mm |
| Type: | Ventilated Or Perforated Trough | Certification: | ISO9001-2015 |
| Sample: | Available | Package: | Carton Box+Pallet |
| High Light: | Zinc Plated cable tray powder coated,150mm cable tray powder coated,150mm wire cable tray |
||

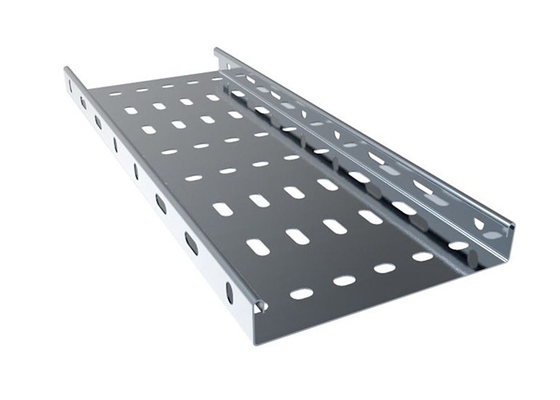

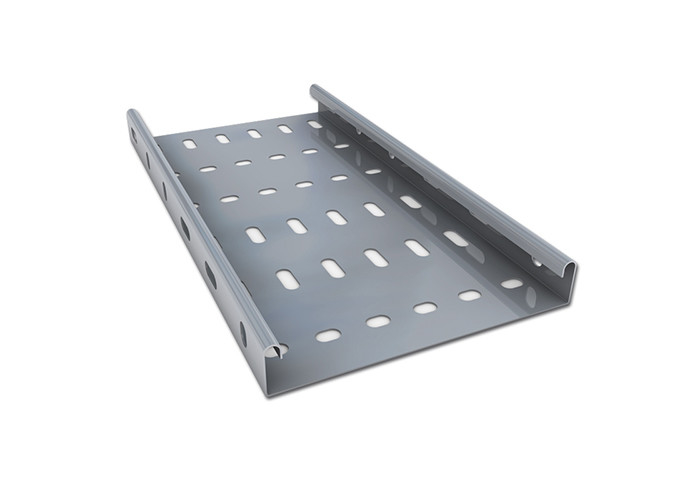

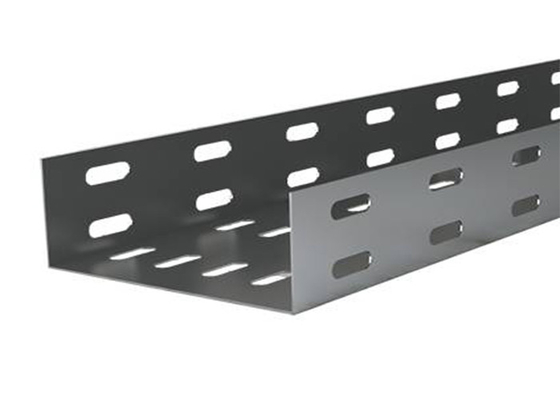

Zinc Plated Hot Dip Galvanized Perforated Wire Cable Tray
Products:Cable Tray
Advantages of hot-dip galvanized cable tray: it has very good anti-corrosion performance, long service life, much longer service life than ordinary cable tray, high degree of industrialization and stable quality. Therefore, it is widely used in outdoor environment with serious atmospheric corrosion and difficult maintenance.
The shielding performance of galvanized tray type cable tray is also very good, which can also play an anti signal interference and dust-proof effect. It's very bearable( Dust proof effect)
Simple structure, light and beautiful appearance, light weight, easy installation, the biggest advantage: the bottom has heat dissipation effect, good fire resistance.
Features:
Non-standard sizes are avaliable upon customers' request.
Easy to install
Easy addition or removal the old cable in existing Cable Tray.
Easy inspection & location of cable fault.
Time save in installation wiring system.
More space utilisation .
Less Labour expenditure.
Very suitable for fibre optic cable wiring system to avoid sharp bends
Ventilation for essential cables.
Applications:It is mainly used for horizontal or vertical laying of control cables and communication cables, and for the installation of power cables.
Perforated cable trays are manufactured for the smooth and easy pulling of cable from one point to another. We have designed cable trays by taking care of cable loads and practical site problems. Wherever possible all fitting are made of state of art single piece construction. Slotting Patterns are in such a way that it enables the easy cutting and joining at any point without drilling at site. Design allows greater cable filling capacity and smooth turning at bends.
Parameter List:
|
Light Duty Cable Tray |
|||||
|
Part No. |
Width(mm) |
Height(mm) |
Thickness(mm) |
Length(mm) | Finish |
|
CT-L-50 |
50 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
|
CT-L-100 |
100 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-150 | 150 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-200 | 200 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-250 | 250 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-300 | 300 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-400 | 400 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-500 | 500 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-600 | 600 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-700 | 700 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| Medium Duty Cable Tray | |||||
| Part No. | Width(mm) |
Height(mm) |
Thickness(mm) |
Length(mm) | Finish |
| CT-M-50 | 50 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-100 | 100 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-150 | 150 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-200 | 200 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-250 | 250 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-300 | 300 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-400 | 400 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-500 | 500 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-600 | 600 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-700 | 700 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| Heavy Duty Cable Tray | |||||
| Part No. | Width(mm) |
Height(mm) |
Thickness(mm) |
Finish | Finish |
| CT-H-50 | 50 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-100 | 100 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-150 | 150 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-200 | 200 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-250 | 250 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-300 | 300 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-400 | 400 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-500 | 500 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-600 | 600 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-700 | 700 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
Product Show:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
