Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity

I'm Online Chat Now

Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity

Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity
Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity

Large Image :  Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: CL-150-50
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity

Description
Material: Steel/Q235B Service: OEM ODM
Maximum Load-bearing Capacity: 50-200kg Length: 2.44m/3m/6m
Type: Ladder Tray Certification: ISO9001-2015
Package: Carton Box+Pallet Finished: EG/HDG/Powder Coating/SS304/SS316
High Light:

Aluminium HDG Cable Ladder

,

Electro Galvanized HDG Cable Ladder

,

50kg Carbon steel cable ladder

Powder Coating Carbon Steel Cable Ladder



Products:Cable Ladder

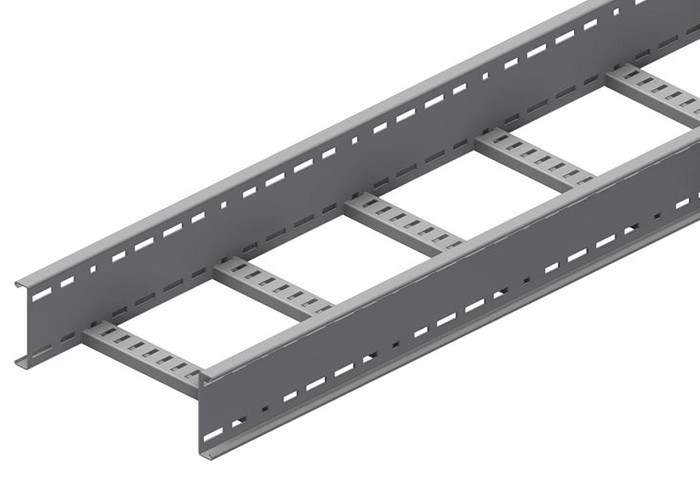

Cable ladder is one of the most flexible solutions for the routing of cables for medium and heavy-duty cable installations in building, production factory and many other outdoor plants for electrical power distribution, control, and communication purpose. The ladder type tray has the cables supported by a traverse bar, similarly to the rungs combined with side railing beam, at regular intervals on the standard order of 300mm or other special requirements like 200mm or 250mm.



Features:Koka Cable Ladder are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka cable ladder.



Applications:Cable Support

Generally, cable ladders are preferred for supporting high volume or heavy cabling, especially if there are long spans between supports.



Specification:

Material:

Hot roll mild steel

Cold roll mild steel

Pre-Galvanized Steel

Electro Galvanized

Stainless Steel

Aluminium

Finish:

Hot Dipped Galvanized

Epoxy Powder Coated

Polyester Powder Coated

Part No. Width(mm) Heigth(mm) Thickness(mm) Length(mm) Finish
Cable Ladder
CL-150-50 150 50 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-50 200 50 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-50 250 50 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-50 300 50 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-50 400 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-50 450 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-50 500 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-50 600 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-50 750 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-50 900 50 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-150-75 150 75 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-75 200 75 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-75 250 75 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-75 300 75 1.5 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-75 400 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-75 450 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-75 500 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-75 600 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-75 750 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-75 900 75 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
Heavy Duty Cable Ladder
CL-150-100 150 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-100 200 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-100 250 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-100 300 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-100 400 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-100 450 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-100 500 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-100 600 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-100 750 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-100 900 100 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-150-125 150 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-125 200 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-125 250 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-125 300 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-125 400 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-125 450 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-125 500 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-125 600 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-125 750 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-125 900 125 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-150-150 150 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-200-150 200 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-250-150 250 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-300-150 300 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-400-150 400 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-450-150 450 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-500-150 500 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-600-150 600 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-750-150 750 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316
CL-900-150 900 150 2 2400/3000/6000 EG/HDG/Powder Coating/SS304/SS316





Product Show:

Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity 0  Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity 1



Package:



Aluminium Carbon Steel HDG Cable Ladder Electro Galvanized 50kg Capacity 2



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.

Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
