SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray

I'm Online Chat Now

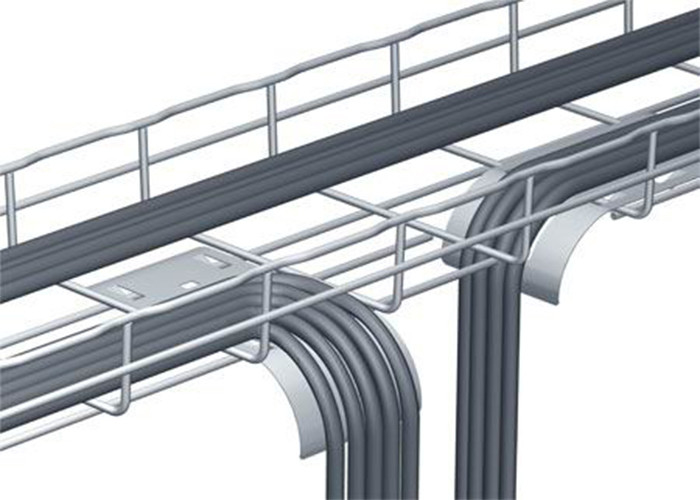

SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray

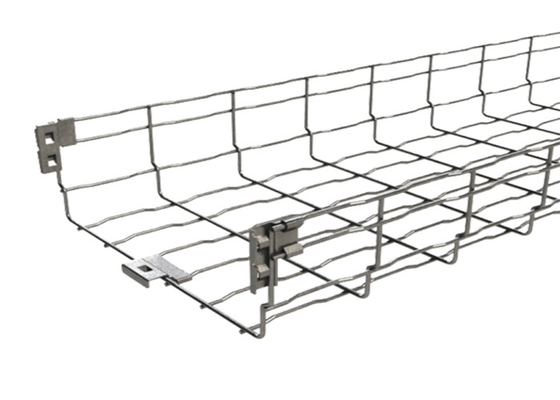

SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray

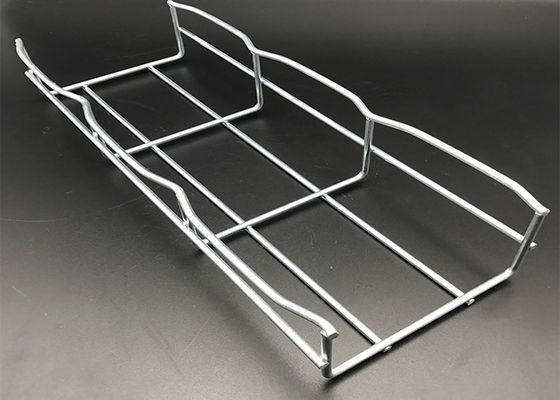

SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray

Large Image :  SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: WM-5025
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray

Description
Material: Steel/Q235B Service: OEM ODM
Maximum Load-bearing Capacity: 198Kg Length: 2400mm,3000mm
Type: Wire Mesh Certification: ISO9001-2015
Sample: Available Package: Carton Box+Pallet
High Light:

2.4m Wire Mesh Cable Tray

,

SS316L Wire Mesh Cable Tray

,

SS316L Grid stainless steel wire basket tray

Grid Basket Stainless Steel Wire Mesh Cable Tray



Products:Wire Mesh Cable Tray

Cable trays and baskets provide a safe open solution for routing cables and wires. Its wire-frame composition allows air to circulate for proper cable ventilation to provide a track that allows cables and wires to be routed around a building in an easily maintainable



Featrue:

Wire mesh cable tray supplies a point-to-point pathway for cables. Made of high quality steel wire and welded into 2" × 4" rectangular grid pattern. the grid is formed into U shaped channels, which supports and carry cables. The hole pattern design make it possible for the cables to pass through and go up and down.

Compared with fiberglass cable trays, the wire mesh cable tray has higher tensile strength and mechanical strength. The material of wire mesh cable trays are various, including carbon steel with various surface furnish and stainless steel. Different surface finish can suit different applications.



Applications:Cable Support



Specification :

Material: carbon steel, SS 304, SS 316L.
Surface finish:
PG: pre-galvanized
EZ: electric galvanized
HDG: hot dipped galvanized
PC: powder coated

Part No.

Width

(mm)

Height

(mm)

Steel ¢D Length(mm) Finish
Wire Mesh Cable Tray
WM-50*25 50 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS316
WM-100*25 100 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS317
WM-150*25 150 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS318
WM-200*25 200 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS319
WM-300*25 300 25 ¢4 1000 EG/HDG/Powder Coating/SS304/SS320
WM-100*35 100 35 ¢4 1000 EG/HDG/Powder Coating/SS304/SS321
WM-150*35 150 35 ¢4 1000 EG/HDG/Powder Coating/SS304/SS322
WM-200*35 200 35 ¢4 1000 EG/HDG/Powder Coating/SS304/SS323
WM-300*35 300 35 ¢4 1000 EG/HDG/Powder Coating/SS304/SS324
WM-54*54 54 54 ¢4 1000 EG/HDG/Powder Coating/SS304/SS325
WM-100*54 100 54 ¢4 1000 EG/HDG/Powder Coating/SS304/SS326
WM-150*54 150 54 ¢4 1000 EG/HDG/Powder Coating/SS304/SS327
WM-200*54 200 54 ¢4 1000 EG/HDG/Powder Coating/SS304/SS328
WM-300*54 300 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS329
WM-400*54 400 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS330
WM-450*54 450 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS331
WM-500*54 500 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS332
WM-600*54 600 54 ¢5 1000 EG/HDG/Powder Coating/SS304/SS333
WM-700*54 700 54 ¢6   EG/HDG/Powder Coating/SS304/SS334
WM-750*54 750 54 ¢6 1000 EG/HDG/Powder Coating/SS304/SS335
WM-800*54 800 54 ¢6 1000 EG/HDG/Powder Coating/SS304/SS336
WM-100*100 100 100 ¢4 1000 EG/HDG/Powder Coating/SS304/SS337
WM-150*100 150 100 ¢4 1000 EG/HDG/Powder Coating/SS304/SS338
WM-200*100 200 100 ¢4 1000 EG/HDG/Powder Coating/SS304/SS339
WM-300*100 300 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS340
WM-400*100 400 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS341
WM-450*100 450 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS342
WM-500*100 500 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS343
WM-600*100 600 100 ¢5 1000 EG/HDG/Powder Coating/SS304/SS344
WM-700*100 700 100 ¢6   EG/HDG/Powder Coating/SS304/SS345
WM-750*100 750 100 ¢6 1000 EG/HDG/Powder Coating/SS304/SS346
WM-800*100 800 100 ¢6   EG/HDG/Powder Coating/SS304/SS347
WM-150*150 150 150 ¢4 1000 EG/HDG/Powder Coating/SS304/SS348
WM-200*150 200 150 ¢5 1000 EG/HDG/Powder Coating/SS304/SS349
WM-300*150 300 150 ¢5 1000 EG/HDG/Powder Coating/SS304/SS350
WM-400*150 400 150 ¢5 1000 EG/HDG/Powder Coating/SS304/SS351



Product Show:

SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray 0



Package:



SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray 1 SS316L 2.4m Wire Mesh Cable Tray Grid Stainless Steel Wire Basket Tray 2



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.

Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
