NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized

I'm Online Chat Now

NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized

NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized
NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized

Large Image :  NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: CTK -5050
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized

Description
Material: Steel/Q235B Service: OEM ODM
Maximum Load-bearing Capacity: 216kg/meter Length: 2400mm,3000mm,6000mm
Certification: ISO9001-2015 Sample: Available
Standard: NEMA20B NEM 20C NEMA 16A Package: Carton Box+Pallet
High Light:

NEM 20C Powder Coated Cable Trunking

,

60cm Powder Coated Cable Trunking

,

Pre galvanized cable trunking

Pre-Galvanized Cable Trunking ​



Products:Cable Trunking

Cable trunking is used as both protection and organisation of multiple running cables, where’s to protect cables from damage and to hide unsightly cables from view. KOKA offers metallic type cable trunking can be used in almost any location including homes, hotels and hospitals especially in electrical services. it is available in many materials, sizes and forms to suit the location and requirements of the installation. Trunking is usually square or rectangular in shape, whilst providing easy access to the cable when needed via a removable cover using screw locking and quick fixing turn buckle button.

Offering you a complete choice of products which include steel cable trunking, stainless steel cable trunking, gi trunking cable tray and stainless steel cable tray trunking.



Features:Koka Cable Trunking are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka cable trunking.



Applications:Cable Support



Specification:



Light Duty Cable Trunking

Part No.

Width(mm)

Height(mm)

Thickness(mm)

Length(mm) Finish

CTK -5050

50 50 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316

CTK -7550

75 50 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -6060 60 60 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -10050 100 50 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -10075 100 75 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-100100 100 100 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-15075 150 75 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-150100 150 100 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK -150150 150 150 1.2/1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-200100 200 100 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-200150 200 150 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-200200 200 200 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-300100 300 100 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-300150 300 150 1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316
CTK-300200 300 200  1.5/2.0 2500/3000 EG/HDG/Powder Coating/SS304/SS316

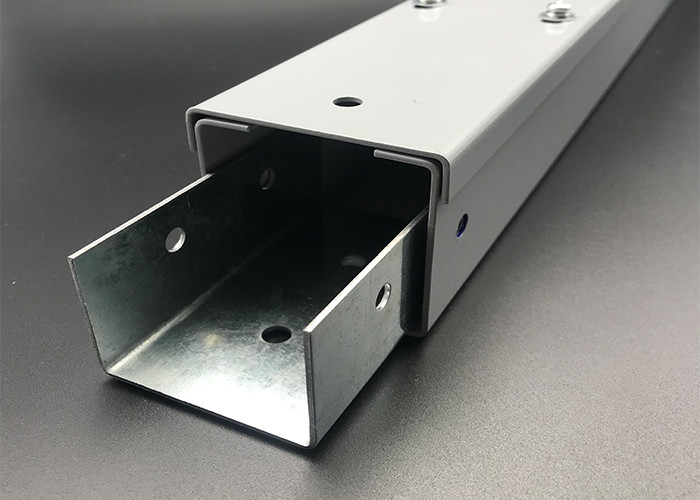

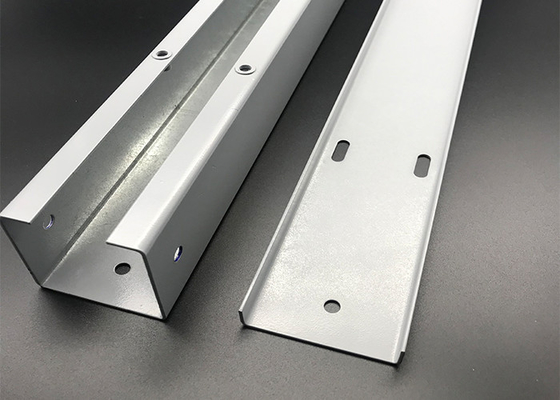

Product Show:

NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized 0   NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized 1



Package:



NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized 2   NEM 20C Powder Coated Cable Trunking 60cm Pre Galvanized 3



Why Choose KOKA:

•The professional services & professional quality

• High quality with competitive price

• All size,if you want

• Samples & catalogs are free



About KOKA:

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.

KOKA is the ideal solution for flexible support system available.

KOKA takes pride in building long term partnerships with clients that ensure a superior service and provider highest quality products.

KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.

KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.

KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.

KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.
