Product Details:
|
| Material: | Carbon Steel/ss304/ss316/Copper/Aluminum | Surface Treatment: | Zinc Plated /Galvanized/HDG |
|---|---|---|---|
| Usage: | Pipe Clamp | Thickness: | 1.5-3.0MM |
| Service: | OEM ODM | Sample: | Available |
| Certification: | ISO9001-2015 | Package: | Carton Box |
| High Light: | M10 heavy duty pipe clamp,EPDM heavy duty pipe clamp,M8 rubber coated pipe clamps |
||
Electric zinc M8+M10 Heavy Duty pipe clamp with EPDM rubber
Products:Pipe Clamp With EPDM
Features:
High strength due to double reinforcing ribs
Noise reduction according to DIN EN ISO 3822-1
Compliant for sound insulation design according to DIN 4109
Multifunction screw with hexagonal combination head (slot and crosshead)
Temperature resistance: -50°C to +110 °C, suitable for hot water and heating pipes
Application:
Metal pipes
PVC pipes
Drainage pipes
Steel pipes
Specification:
| Part No. | Pipe Size | ØD(mm) | Nut Size | Finish |
| KKPC012 | 1/4” | 12-16 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC015 | 3/8” | 15-19 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC021 | 1/2” | 20-25 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC026 | 3/4” | 26-30 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC032 | 1” | 32-36 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC040 | 1-1/4” | 38-43 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC044 | 1-1/2” | 47-51 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC050 | 50-56 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC057 | 2” | 60-64 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC063 | 63-67 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC070 | 70-73 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC074 | 2-1/2” | 75-80 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC083 | 3” | 87-92 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC101 | 101-106 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC108 | 4” | 107-112 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC125 | 125 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC131 | 131-135 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC136 | 136-139 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC140 | 5” | 125-130 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC159 | 159-163 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC165 | 6” | 159-166 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC193 | 193-200 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC210 | 210-212 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC216 | 8” | 200-212 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC225 | 225 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC250 | 250 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC274 | 10” | 248-252 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC315 | 315 | M8+M10 | EG/HDG/SS304/SS316 |

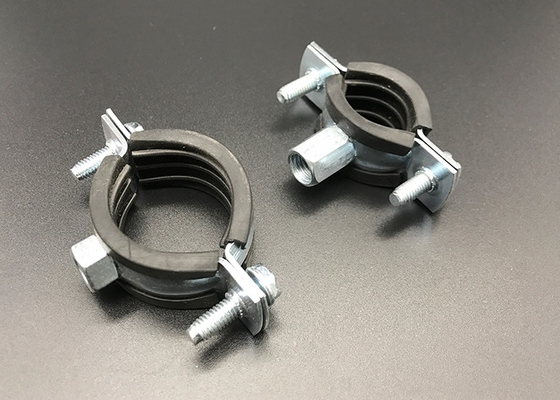

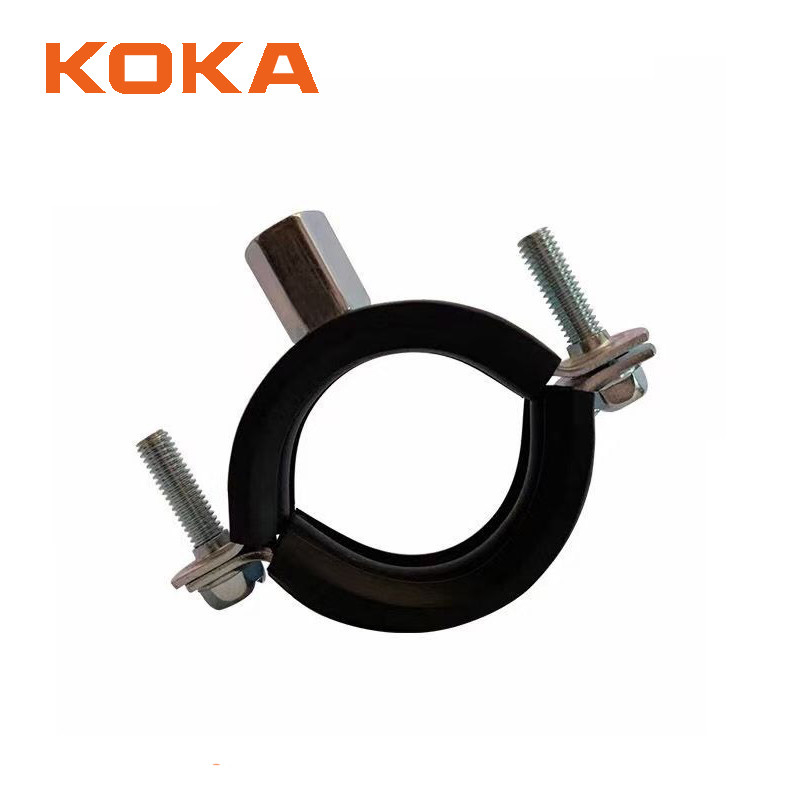

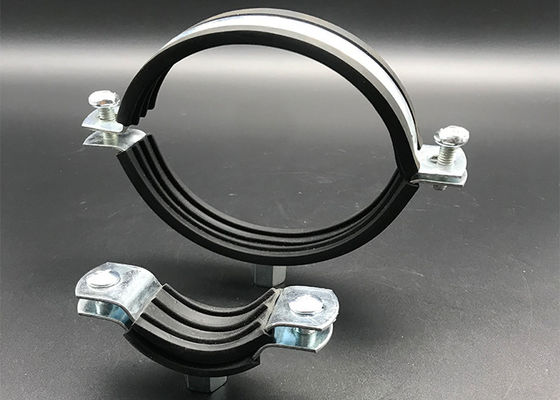

Product Show:
Package:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
