Product Details:
|
| Material: | Q235,Stainless Steel 304/316 | Surface Finished: | Pre-galvanized,Hot Dip Galvanized,Powder Coating |
|---|---|---|---|
| Specification: | 41*41 41*21 41*62 41*82 | Thickness: | 1.5-3.0MM，any Thickness Available |
| Length: | 1-6M ,Any Length Available | Sample: | Free Available |
| Service: | ODM/OEM | Certification: | ISO9001-2015 |
| High Light: | 41x41 metal Strut C Channel,6M slotted Strut C Channel,41x41 gi strut channel |
||
Galvanized metal steel c channel dimensions 41x41 u channel steel price steel slotted strut channel
Products : Strut Channel
Strut channel is usually formed from metal sheet, folded over into an open channel shape with inwards-curving lips to provide additional stiffness and as a location to mount interconnecting components. Strut usually has holes of some sort in the base, to facilitate interconnection or fastening strut to underlying building structures.
Features:
1) easy & flexible in installation, low cost
2) samples & catalogs are free
3) all size are available
Applications:
Koka strut channel is commonly used for trapeze supports, cable tray supports, seismic bracing, ceiling grids, pipe support, conduit, duct ,racks,solar mounting,HAVC system and other general framing.
Specifications:
| Part No. | Size | Thickness(mm) | Length(m) | Finish |
| KK-4121 | 41x21 (1-5/8x13/16) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4141 | 41x41 (1-5/8x1-5/8) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4162 | 41x62 (1-5/8x2-7/16) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4182 | 41x82 (1-5/8x3-1/4) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4125 | 41x25 (1-5/8x1) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |

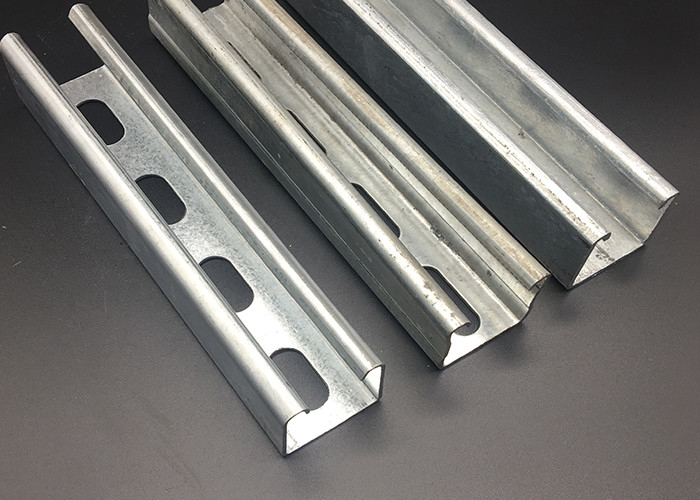

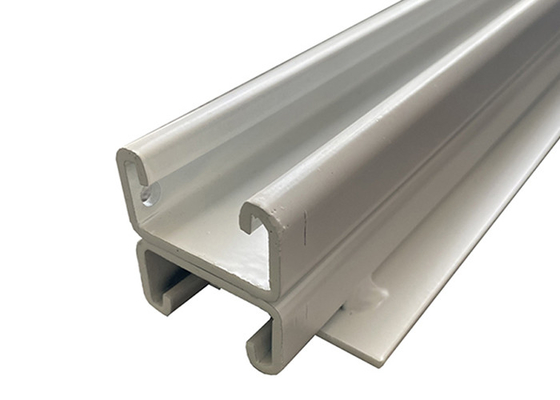

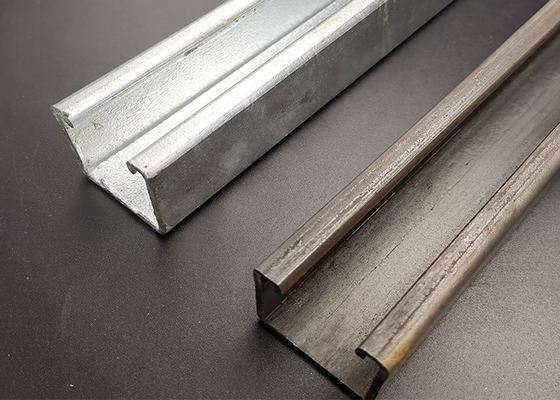

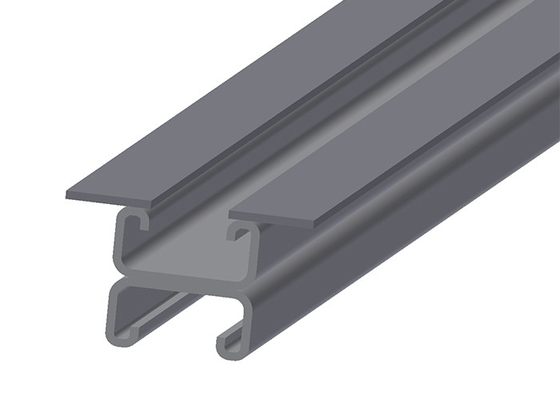

Product Show:
Package:
