Product Details:
|
| Material: | Steel/Q235B | Service: | OEM ODM |
|---|---|---|---|
| Maximum Load-bearing Capacity: | 216kg/meter | Length: | 2400mm,3000mm,6000mm |
| Type: | Ventilated Or Perforated Trough | Certification: | ISO9001-2015 |
| Sample: | Available | Package: | Carton Box+Pallet |
| High Light: | 45 degree hot dip galvanised cable tray,HDG hot dip galvanised cable tray,6000mm pre galvanized cable tray |
||

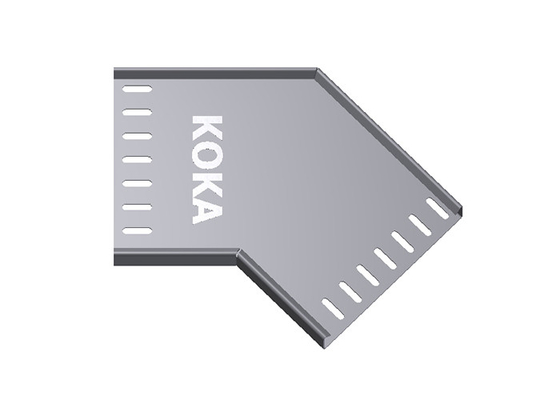

Pre galvanized perforated Cable Tray 45 degree bend HDG
Products:Cable Tray
Perforated cable tray has a similar structure with the cable trunking. There are a series of holes on the bottom and side walls. It has different hole patterns, such as oval, slot, round and other types. The holes make the perforated cable tray a good air circulation and heat dispersion.
Features:
Good heat dispersion.
Easy to install and uninstall.
Applications:Cable Support
Perforated cable trays are manufactured for the smooth and easy pulling of cable from one point to another. We have designed cable trays by taking care of cable loads and practical site problems. Wherever possible all fitting are made of state of art single piece construction. Slotting Patterns are in such a way that it enables the easy cutting and joining at any point without drilling at site. Design allows greater cable filling capacity and smooth turning at bends.
Parameter List:
|
Light Duty Cable Tray |
|||||
|
Part No. |
Width(mm) |
Height(mm) |
Thickness(mm) |
Length(mm) | Finish |
|
CT-L-50 |
50 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
|
CT-L-100 |
100 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-150 | 150 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-200 | 200 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-250 | 250 | 12/25 | 1.2 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-300 | 300 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-400 | 400 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-500 | 500 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-600 | 600 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-L-700 | 700 | 12/25 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| Medium Duty Cable Tray | |||||
| Part No. | Width(mm) |
Height(mm) |
Thickness(mm) |
Length(mm) | Finish |
| CT-M-50 | 50 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-100 | 100 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-150 | 150 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-200 | 200 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-250 | 250 | 50 | 1.5 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-300 | 300 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-400 | 400 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-500 | 500 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-600 | 600 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-M-700 | 700 | 50 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| Heavy Duty Cable Tray | |||||
| Part No. | Width(mm) |
Height(mm) |
Thickness(mm) |
Finish | Finish |
| CT-H-50 | 50 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-100 | 100 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-150 | 150 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-200 | 200 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-250 | 250 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-300 | 300 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-400 | 400 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-500 | 500 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-600 | 600 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CT-H-700 | 700 | 100 | 2.0 | 2400/3000 | EG/HDG/Powder Coating/SS304/SS316 |

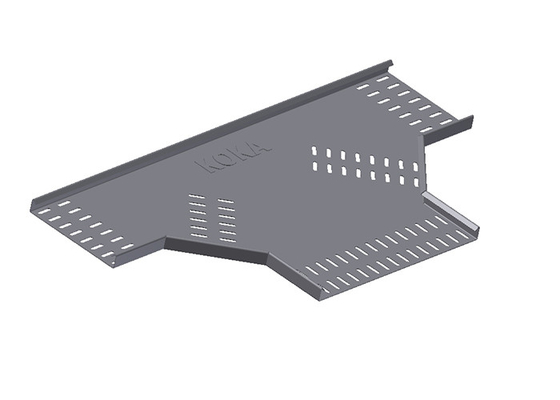

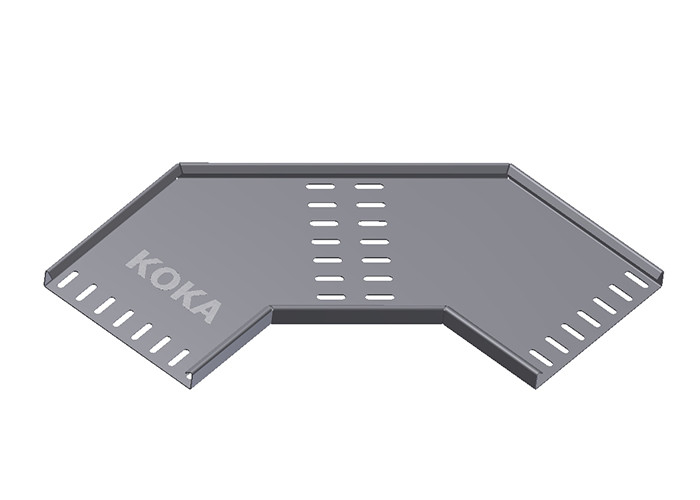

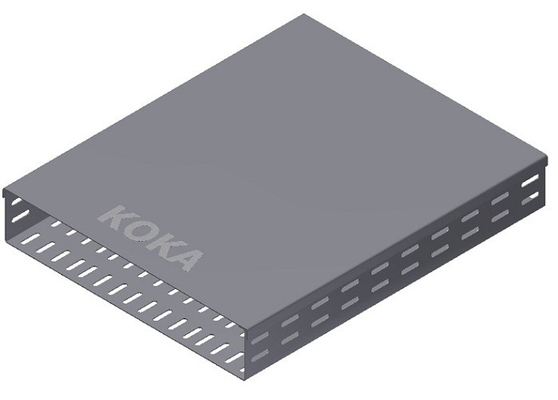

Product Show:
