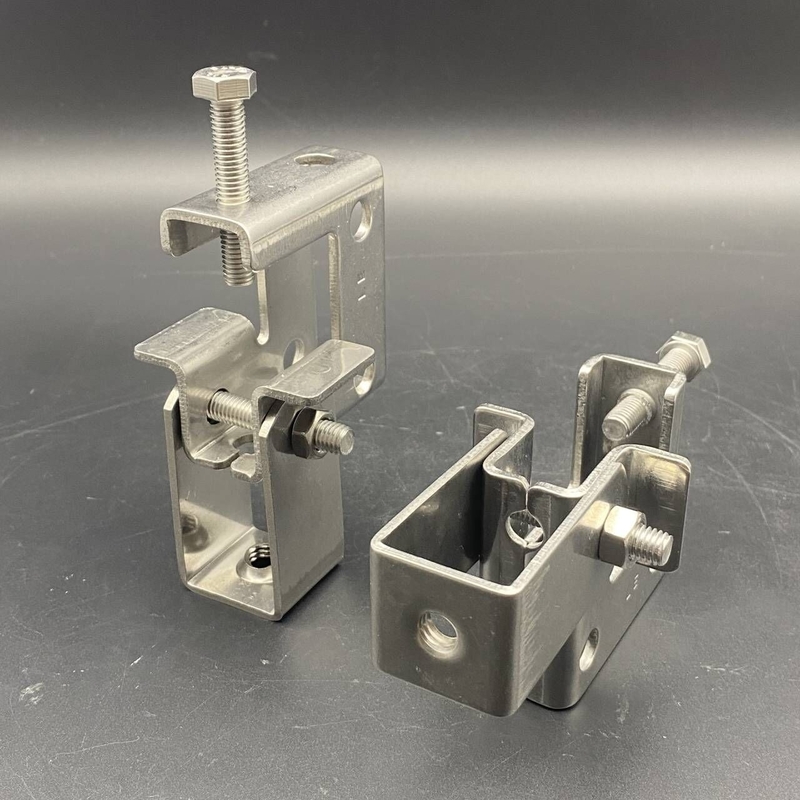

304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger

I'm Online Chat Now

304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger

304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger
304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger
304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger 304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger

Large Image :  304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Model Number: KK-BC-01
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Sent email to us
Packaging Details: Pallet Packing,customized requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger

Description
Certification: ISO9001-2015 Delivery Time: 7-15Days
Material: Malleable Iron/ss304/ss316 Surface Treatment: Zinc Plated
Service: ODM/OEM Sample: Available
Package: Carton Box Size: 1/4" 3/8" 1/2" M6 M8 M10 M12

304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger



Products:Beam Clamp

Malleable Beam Clamps are secured to the outside of an I-beam, girder, or other structural member to provide a mounting base for conduit hangers or threaded rod.



Features:

1. Material: Cast Malleable Steel with hardened cup point set screw and jam nut;
2. Finish: Electro-galvanized finish for enhanced corrosion protection, Available in hot dip galvanized finish (special order);
3. Features: May be used on top or bottom flange of the beam. Beveled lip allows hanging from top flange where clearance is limited. may be installed with the set screw in the up or down position. Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp. The rear window design permits inspection of thread engagement;
4. Function: For attachment to structural shapes requiring wider throat especially under roof with bar joist construction. This clamp may be used with the set screw in the up or down position;
5. Note: Do not over tighten set screw.


Applications:For attachment to structural shapes requiring wider throat especially under roof with bar joist construction. This clamp may be used with the set screw in the up or down position.



Certification:

Material:Carbon Steel, Malleable Iron and Forged Steel are used in the manufacturing of beam clamps and accessories. Stainless steel and other materials are available.



Part No. Fmax(kN) H1 (mm) G (mm) S (Bolt&Nut) PCS/Box Surface Finished
BC-M6 1.1 18 M6 M6 50 EG/HDG/SS304/SS316
BC-M6-T 1.1 18 7 M6 50 EG/HDG/SS304/SS316
BC-1/4 1.1 18 1/4 1/4 50 EG/HDG/SS304/SS316
BC-1/4-T 1.1 18 7 1/4 50 EG/HDG/SS304/SS316
BC-M8 1.1 18 M8 M8 50 EG/HDG/SS304/SS316
BC-M8-T 1.1 18 9 M8 50 EG/HDG/SS304/SS316
BC-5/16 1.1 18 5/16 5/16 50 EG/HDG/SS304/SS316
BC-5/16-T 1.1 18 9 5/16 50 EG/HDG/SS304/SS316
BC-M10 2.4 20 M10 M0 50 EG/HDG/SS304/SS316
BC-M10-T 2.4 20 11 M10 50 EG/HDG/SS304/SS316
BC-3/8 2.4 20 3/8 3/8 50 EG/HDG/SS304/SS316
BC-3/8-T 2.4 20 11 3/8 50 EG/HDG/SS304/SS316
BC-M12 3.1 27 M12 M12 25 EG/HDG/SS304/SS316
BC-M12-T 3.1 27 13 M12 25 EG/HDG/SS304/SS316
BC-1/2 3.1 27 1/2 1/2 25 EG/HDG/SS304/SS316
BC-1/2-T 3.1 27 13 1/2 25 EG/HDG/SS304/SS316



Product Show:



304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger 0  304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger 1304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger 2  304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger 3





Package:



304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger 4  304 Stainless Steel Unistrut Adjustment Beam Clamp and Clevis Hanger 5


FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
2: what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
