Product Details:
|
Material: | Carbon Steel/ss304/ss316/Copper/Aluminum | Surface Treatment: | Zinc Plated /Galvanized/HDG |
---|---|---|---|
Specification: | 1/4" 1/2" 1-1/4" | Thickness: | 1.5-3.0MM |
Service: | OEM ODM | Sample: | Available |
Certification: | ISO9001-2015 | Package: | Carton Box |

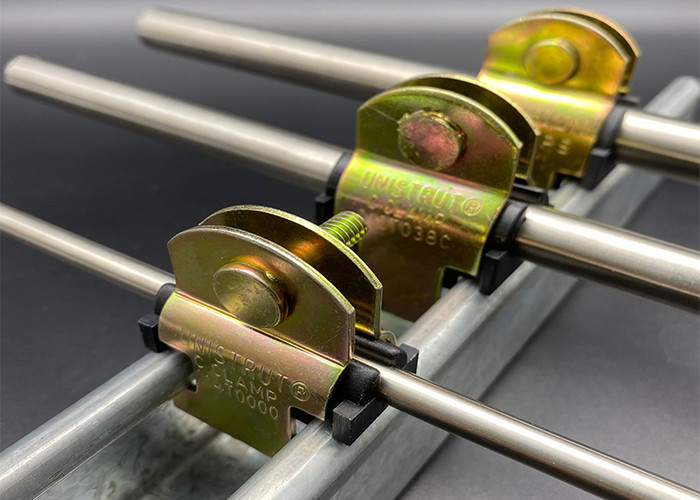

Pre-galvanized 1-1/2'' Strut Cushion Clamp for Pipe
Products:Strut Cushion Clamp
Features: Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.
Side screws are protected against loss during assemble with the help of plastic washers
Applications:
Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
For Suspending Stationary Non-Insulated Copper Tubing Lines
Part No. | Pipe Size (Inch) | OD Size (Inch) | OD Size (mm) | Finish |
EMT | ||||
KK-2025 | 3/8” | 0.577" | 14.7 | EG/HDG/SS304/SS316 |
KK-2026 | 1/2” | 0.706" | 17.9 | EG/HDG/SS304/SS316 |
KK-2028 | 3/4” | 0.922" | 23.4 | EG/HDG/SS304/SS316 |
KK-2030 | 1” | 1.163" | 29.5 | EG/HDG/SS304/SS316 |
KK-2032 | 1-1/4” | 1.510" | 38.4 | EG/HDG/SS304/SS316 |
KK-2034 | 1-1/2” | 1.740" | 44.2 | EG/HDG/SS304/SS316 |
KK-2038 | 2” | 2.197" | 55.8 | EG/HDG/SS304/SS316 |
UNIVERSAL | ||||
KK-2055 | 3/8” | 16.4 | EG/HDG/SS304/SS316 | |
KK-2056 | 1/2” | 19.5 | EG/HDG/SS304/SS316 | |
KK-2058 | 3/4” | 24.9 | EG/HDG/SS304/SS316 | |
KK-2060 | 1” | 31.4 | EG/HDG/SS304/SS316 | |
KK-2062 | 1-1/4” | 40.2 | EG/HDG/SS304/SS316 | |
KK-2064 | 1-1/2” | 46.2 | EG/HDG/SS304/SS316 | |
KK-2068 | 2” | 58.0 | EG/HDG/SS304/SS316 | |
RGD | ||||
KK-2125 | 3/8” | 0.675" | 18.0 | EG/HDG/SS304/SS316 |
KK-2126 | 1/2” | 0.840" | 21.3 | EG/HDG/SS304/SS316 |
KK-2128 | 3/4” | 1.050" | 26.7 | EG/HDG/SS304/SS316 |
KK-2130 | 1” | 1.315" | 33.4 | EG/HDG/SS304/SS316 |
KK-2132 | 1-1/4” | 1.660" | 44.2 | EG/HDG/SS304/SS316 |
KK-2134 | 1-1/2” | 1.900" | 48.3 | EG/HDG/SS304/SS316 |
KK-2138 | 2” | 2.375" | 60.3 | EG/HDG/SS304/SS316 |
KK-2142 | 2-1/2” | 2.875" | 73.0 | EG/HDG/SS304/SS316 |
KK-2146 | 3” | 3.500" | 88.9 | EG/HDG/SS304/SS316 |
KK-2150 | 3-1/2” | 4.000" | 101.6 | EG/HDG/SS304/SS316 |
KK-2154 | 4” | 4.500" | 114.3 | EG/HDG/SS304/SS316 |
KK-2162 | 5” | 5.563" | 141.3 | EG/HDG/SS304/SS316 |
KK-2170 | 6” | 6.625" | 168.3 | EG/HDG/SS304/SS316 |
KK-2174 | 8” | 8.625" | 216.3 | EG/HDG/SS304/SS316 |
