Galvanized Steel 3/8 Strut Mounted Cushion Pipe Clamps

Description
Material: Q235,Stainless Steel 304/316 Surface Treatment: Zinc Plated /Galvanized/HDG/Copper Plate
Service: ODM/OEM Color: White/Yellow Zinc/Gold Zinc
Cushion Material: TPE Usage: HVAC
Package: Carton Box Certification: ISO9001-2015

Galvanized Steel 3/8 Strut Mounted Cushion Pipe Clamps

Products:Cushion Clamp

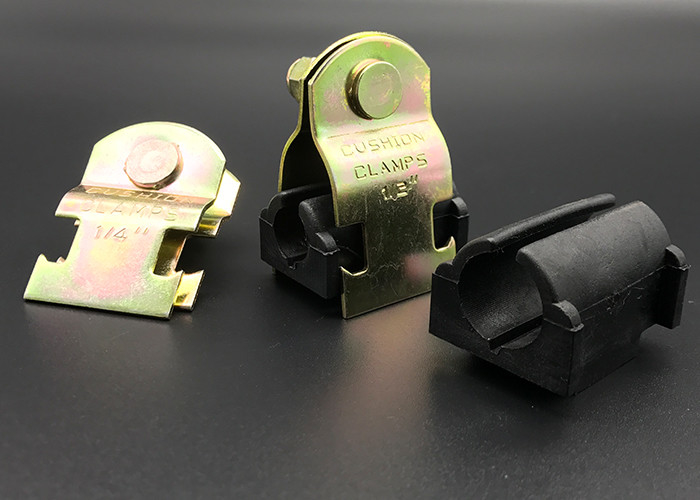

Cushion clamp Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise and preventing galvanic corrosion.Cushion clamp fits any standard 1-5/8 wide channel.

Pipe Channel Cushion Clamps are ideal for multiple line runs. They absorb shock and vibration, reduce unwanted noise and prevent galvanic corrosion. The time-saving clamps install quickly and allow additional tubes or pipes to be added without disassembling the existing installation.





Features:

1) Available in stainless steel on special order.
2) Other sizes on special order are available.
3) Clamps are manufactured from cold-rolled low-carbon steel with galvanized finish.



Applications:

Cushion clamps are typically used in pneumatic refrigeration, HVAC, and some low pressure hydraulic lines. cushion clamps also eliminate metal to metal contact between the fluid lines and the support hardware. Standard material for the hardware is a clear trivalent zinc-plated steel, with options for both 304 and 316 grades stainless steel. Additional special options include aluminum and powder coating.

Cushion clamps provide protection against shock, vibration, noise and temperature to ensure your pipes aren't damanged.



Specifications:

Part No. Tubing Size Pipe Size Pipe OD (inch) Finish
CC-1/4 1/4” - 0.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/8 3/8” - 0.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/2 1/2” - 0.5 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/4-P - 1/4” 0.54 GOLD ZINC/EG/HDG/SS304/SS316
CC-5/8 5/8” - 0.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/8-P - 3/8” 0.67 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/4 3/4” - 0.75 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/2-P - 1/2” 0.84 GOLD ZINC/EG/HDG/SS304/SS316
CC-7/8 7/8” - 0.87 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1” - 1.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/4-P - 3/4” 1.05 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/8 1-1/8” - 1.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/4 1-1/4” - 1.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-1-P - 1” 1.31 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 3/8 1-3/8” - 1.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/2 1-1/2” - 1.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 5/8 1-5/8” - 1.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/4-P - 1-1/4” 1.66 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 3/4 1-3/4” - 1.75 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 7/8 1-7/8” 1-1/2” 1.90 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 2” - 2.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/8 2-1/8” - 2.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/4 2-1/4” - 2.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 3/8 2-3/8” 2” 2.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/2 2-1/2” - 2.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 5/8 2-5/8” - 2.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 7/8 2-7/8” 2-1/2” 2.87 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 3” - 3.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 1/8 3-1/8” - 3.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 1/2 3-1/2” 3” 3.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 5/8 3-5/8” - 3.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-4 1/8 4-1/8” - 4.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-4 1/2 4-1/2” 4” 4.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-6 6” - 6.00 GOLD ZINC/EG/HDG/SS304/SS316



Product Show:

Galvanized Steel 3/8 Strut Mounted Cushion Pipe Clamps 0  Galvanized Steel 3/8 Strut Mounted Cushion Pipe Clamps 1

Galvanized Steel 3/8 Strut Mounted Cushion Pipe Clamps 2  Galvanized Steel 3/8 Strut Mounted Cushion Pipe Clamps 3



Package:

Galvanized Steel 3/8 Strut Mounted Cushion Pipe Clamps 4
