3/8'' Galvnized Steel Strut Pipe Cushion Clamps

I'm Online Chat Now

3/8'' Galvnized Steel Strut Pipe Cushion Clamps

3/8'' Galvnized Steel Strut Pipe Cushion Clamps
3/8'' Galvnized Steel Strut Pipe Cushion Clamps
3/8'' Galvnized Steel Strut Pipe Cushion Clamps 3/8'' Galvnized Steel Strut Pipe Cushion Clamps 3/8'' Galvnized Steel Strut Pipe Cushion Clamps

Large Image :  3/8'' Galvnized Steel Strut Pipe Cushion Clamps

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Model Number: CC-1/4
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Sent email to us
Packaging Details: Plastic bags+Carton Box+Pallet
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

3/8'' Galvnized Steel Strut Pipe Cushion Clamps

Description
Certification: ISO9001-2015 Material: Q235,Stainless Steel 304/316
Surface Treatment: Zinc Plated /Galvanized/HDG/Copper Plate Service: ODM/OEM
Color: White/Yellow Zinc/Gold Zinc Cushion Material: TPE
Usage: HVAC Package: Carton Box

3/8'' Galvnized Steel Strut Pipe Cushion Clamps

Products:Cushion Clamp

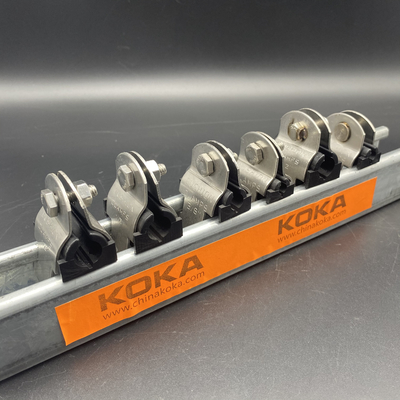

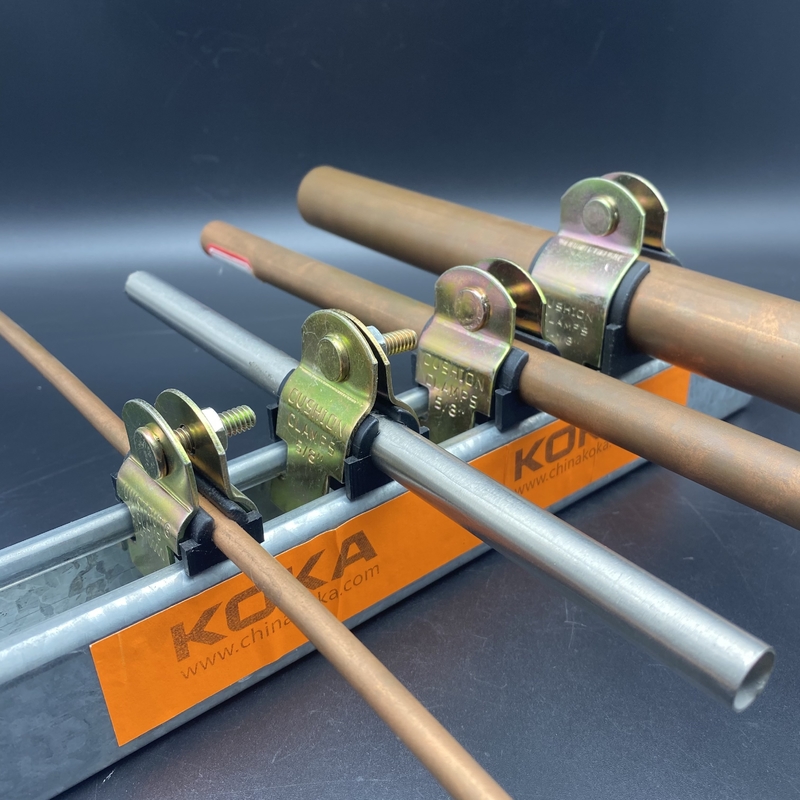

Cushion clamp Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise and preventing galvanic corrosion.Cushion clamp fits any standard 1-5/8 wide channel.

Pipe Channel Cushion Clamps are ideal for multiple line runs. They absorb shock and vibration, reduce unwanted noise and prevent galvanic corrosion. The time-saving clamps install quickly and allow additional tubes or pipes to be added without disassembling the existing installation.



Features:

1) Available in stainless steel on special order.
2) Other sizes on special order are available.
3) Clamps are manufactured from cold-rolled low-carbon steel with galvanized finish.


Applications:

Cushion clamps are typically used in pneumatic refrigeration, HVAC, and some low pressure hydraulic lines. cushion clamps also eliminate metal to metal contact between the fluid lines and the support hardware. Standard material for the hardware is a clear trivalent zinc-plated steel, with options for both 304 and 316 grades stainless steel. Additional special options include aluminum and powder coating.

The cushion clamp by KOKA is a channel mount, cushioned pipe clamp that protects pipes from shock, vibration, noise, temperature and more. This Gold Electro-Galvanized Steel cushioned clamp system is ideal when running multiple lines because it absorbs shock and vibration, reduces unwanted noise and prevents galvanic corrosion. Cushion clamp are available in a variety of sizes to fit almost any size tube.



Specifications:

Part No. Tubing Size Pipe Size Pipe OD (inch) Finish
CC-1/4 1/4” - 0.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/8 3/8” - 0.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/2 1/2” - 0.5 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/4-P - 1/4” 0.54 GOLD ZINC/EG/HDG/SS304/SS316
CC-5/8 5/8” - 0.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/8-P - 3/8” 0.67 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/4 3/4” - 0.75 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/2-P - 1/2” 0.84 GOLD ZINC/EG/HDG/SS304/SS316
CC-7/8 7/8” - 0.87 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1” - 1.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/4-P - 3/4” 1.05 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/8 1-1/8” - 1.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/4 1-1/4” - 1.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-1-P - 1” 1.31 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 3/8 1-3/8” - 1.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/2 1-1/2” - 1.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 5/8 1-5/8” - 1.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/4-P - 1-1/4” 1.66 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 3/4 1-3/4” - 1.75 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 7/8 1-7/8” 1-1/2” 1.90 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 2” - 2.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/8 2-1/8” - 2.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/4 2-1/4” - 2.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 3/8 2-3/8” 2” 2.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/2 2-1/2” - 2.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 5/8 2-5/8” - 2.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 7/8 2-7/8” 2-1/2” 2.87 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 3” - 3.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 1/8 3-1/8” - 3.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 1/2 3-1/2” 3” 3.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 5/8 3-5/8” - 3.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-4 1/8 4-1/8” - 4.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-4 1/2 4-1/2” 4” 4.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-6 6” - 6.00 GOLD ZINC/EG/HDG/SS304/SS316



Product Show:

3/8'' Galvnized Steel Strut Pipe Cushion Clamps 0  3/8'' Galvnized Steel Strut Pipe Cushion Clamps 1

3/8'' Galvnized Steel Strut Pipe Cushion Clamps 2  3/8'' Galvnized Steel Strut Pipe Cushion Clamps 3



Package:

3/8'' Galvnized Steel Strut Pipe Cushion Clamps 4



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.

Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
