Product Details:
|
| Material: | Malleable Iron/ss304/ss316 | Surface Treatment: | Zine Plated |
|---|---|---|---|
| Service: | ODM/OEM | Certification: | ISO9001-2015 |
| Sample: | Available | Package: | Carton Box |
| Size: | 1/4" 3/8" 1/2" M6 M8 M10 M12 | Delivery Time: | 7-15Days |
Electrical Zinc Custom m6 m8 m10 m12 Beam Clamps
Products:Beam Clamp
Malleable Beam Clamps are secured to the outside of an I-beam, girder, or other structural member to provide a mounting base for conduit hangers or threaded rod.
Features:
May be used on top or bottom flange of the beam. Beveled lip allows hanging from top flange where clearance is limited. may be installed with the set screw in the up or down position. Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp. The rear window design permits inspection of thread engagement.
Applications:For attachment to structural shapes requiring wider throat especially under roof with bar joist construction. This clamp may be used with the set screw in the up or down position.
Certification:
Material:Carbon Steel, Malleable Iron and Forged Steel are used in the manufacturing of beam clamps and accessories. Stainless steel and other materials are available.
| Part No. | Fmax(kN) | H1 (mm) | G (mm) | S (Bolt&Nut) | PCS/Box | Surface Finished |
| BC-M6 | 1.1 | 18 | M6 | M6 | 50 | EG/HDG/SS304/SS316 |
| BC-M6-T | 1.1 | 18 | 7 | M6 | 50 | EG/HDG/SS304/SS316 |
| BC-1/4 | 1.1 | 18 | 1/4 | 1/4 | 50 | EG/HDG/SS304/SS316 |
| BC-1/4-T | 1.1 | 18 | 7 | 1/4 | 50 | EG/HDG/SS304/SS316 |
| BC-M8 | 1.1 | 18 | M8 | M8 | 50 | EG/HDG/SS304/SS316 |
| BC-M8-T | 1.1 | 18 | 9 | M8 | 50 | EG/HDG/SS304/SS316 |
| BC-5/16 | 1.1 | 18 | 5/16 | 5/16 | 50 | EG/HDG/SS304/SS316 |
| BC-5/16-T | 1.1 | 18 | 9 | 5/16 | 50 | EG/HDG/SS304/SS316 |
| BC-M10 | 2.4 | 20 | M10 | M0 | 50 | EG/HDG/SS304/SS316 |
| BC-M10-T | 2.4 | 20 | 11 | M10 | 50 | EG/HDG/SS304/SS316 |
| BC-3/8 | 2.4 | 20 | 3/8 | 3/8 | 50 | EG/HDG/SS304/SS316 |
| BC-3/8-T | 2.4 | 20 | 11 | 3/8 | 50 | EG/HDG/SS304/SS316 |
| BC-M12 | 3.1 | 27 | M12 | M12 | 25 | EG/HDG/SS304/SS316 |
| BC-M12-T | 3.1 | 27 | 13 | M12 | 25 | EG/HDG/SS304/SS316 |
| BC-1/2 | 3.1 | 27 | 1/2 | 1/2 | 25 | EG/HDG/SS304/SS316 |
| BC-1/2-T | 3.1 | 27 | 13 | 1/2 | 25 | EG/HDG/SS304/SS316 |

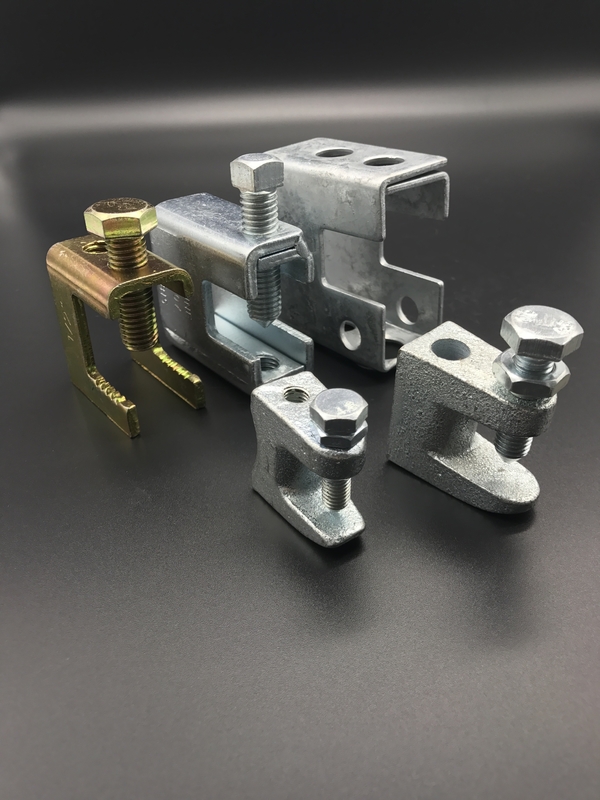

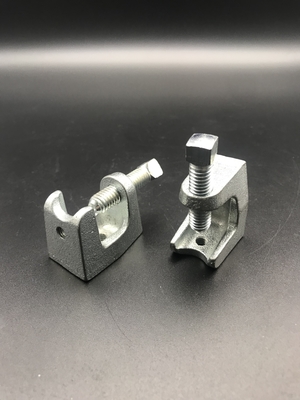

Product Show:
Package:
Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and HVAC systems solutions provider,manufacturer .
Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.
KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.
KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.
KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.
KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
