Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger

I'm Online Chat Now

Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger

Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger
Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger
Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger

Large Image :  Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: KK-LH015
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Sent email to us
Packaging Details: Pallet Packing,customized requirement
Delivery Time: 10-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 999999/pcs/month

Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger

Description
Material: Carbon Steel/ss304/ss316/Copper/Aluminum Surface Treatment: Zinc Plated /Galvanized/HDG
Usage: Pipe Clamp Thickness: 1.5-3.0MM
Service: OEM ODM Sample: Available
Certification: ISO9001-2015 Package: Carton Box

Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger

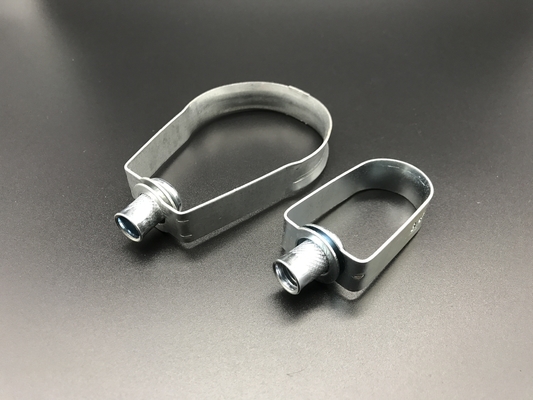

Products: Loop Hanger

A loop hanger is a pipe accessory that loops around a pipe in order to support it. Loop hangers are similar to clevis hangers, split ring hangers, and clamp hangers, which are all examples of pipe hangers, but there are qualities that help to set loop hangers apart from the rest.

The design of loop hanger is simple but effective, looping around a pipe and connecting to a beam or ceiling for support. Loop hangers have keyed insert nuts to guarantee the loop hanger and insert nuts stay together. This type of pipe support is highly recommended for the suspension of non-insulated, stationary pipe lines.



Features:

Flared edges help to protect plastic pipe
An integral fold-over washer (pipe sizes 1/2" to 8")
Suitable for Both Indoor and Outdoor Applications.
Pipe Size Range: 2/1''to8''
Material: Galvanized Steel



Applications:

Loop hangers are used in various industries for clamping pipes or lifting the pipes.



Certification:

Standard: DIN,ANSI,JIS,ASTM, Non-Standard
Material: stainless steel, carbon steel, copper
Finish: electric galvanized, hot-dip galvanized, powder coated
Size: 1/2" - 8"
Quality control: rigid quality inspection throughout the production
Package: standard or customized
Lead time: 15-30 days, depend on the order quantity



Part No. Pipe Size(Inch) Nut Size ØD(mm) Finish
KK-LH015 1/2” 3/8 21.3 EG/HDG/SS304/SS316
KK-LH020 3/4” 3/8 27.2 EG/HDG/SS304/SS316
KK-LH025 1” 3/8 34.0 EG/HDG/SS304/SS316
KK-LH032 1-1/4” 3/8 42.7 EG/HDG/SS304/SS316
KK-LH040 1-1/2” 3/8 48.6 EG/HDG/SS304/SS316
KK-LH050 2” 3/8 60.5 EG/HDG/SS304/SS316
KK-LH065 2-1/2” 3/8 73.0 EG/HDG/SS304/SS316
KK-LH080 3” 3/8 89.1 EG/HDG/SS304/SS316
KK-LH090 3-1/2” 3/8 101.6 EG/HDG/SS304/SS316
KK-LH100 4” 3/8 114.3 EG/HDG/SS304/SS316
KK-LH125 5” 1/2 141.3 EG/HDG/SS304/SS316
KK-LH150 6” 1/2 168.3 EG/HDG/SS304/SS316
KK-LH200 8” 1/2 219.1 EG/HDG/SS304/SS316



Product Show:

Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger 0  Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger 1





Package:

 Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger 2

Custom Size 1/2'' 8'' Loop Hanger Galvanized Steel Strut Loop Hanger 3



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
