Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps

I'm Online Chat Now

Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps

Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps
Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps
Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps

Large Image :  Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: CC-1/4
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Sent email to us
Packaging Details: Plastic bags+Carton Box+Pallet
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps

Description
Material: Q235,Stainless Steel 304/316 Surface Treatment: Zinc Plated /Galvanized/HDG/Copper Plate
Service: ODM/OEM Color: White/Yellow Zinc/Gold Zinc
Cushion Material: TPE Usage: HVAC
Package: Carton Box Certification: ISO9001-2015

Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps



Products:Cushion Clamp

Cushion clamp Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise and preventing galvanic corrosion.Cushion clamp fits any standard 1-5/8 wide channel.

Pipe Channel Cushion Clamps are ideal for multiple line runs. They absorb shock and vibration, reduce unwanted noise and prevent galvanic corrosion. The time-saving clamps install quickly and allow additional tubes or pipes to be added without disassembling the existing installation.





Features:

1) Available in stainless steel on special order.
2) Other sizes on special order are available.
3) Clamps are manufactured from cold-rolled low-carbon steel with galvanized finish.



Applications:

Cushion clamps are typically used in pneumatic refrigeration, HVAC, and some low pressure hydraulic lines. cushion clamps also eliminate metal to metal contact between the fluid lines and the support hardware. Standard material for the hardware is a clear trivalent zinc-plated steel, with options for both 304 and 316 grades stainless steel. Additional special options include aluminum and powder coating.

Cushion clamps provide protection against shock, vibration, noise and temperature to ensure your pipes aren't damanged.



Specifications:

Part No. Tubing Size Pipe Size Pipe OD (inch) Finish
CC-1/4 1/4” - 0.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/8 3/8” - 0.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/2 1/2” - 0.5 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/4-P - 1/4” 0.54 GOLD ZINC/EG/HDG/SS304/SS316
CC-5/8 5/8” - 0.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/8-P - 3/8” 0.67 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/4 3/4” - 0.75 GOLD ZINC/EG/HDG/SS304/SS316
CC-1/2-P - 1/2” 0.84 GOLD ZINC/EG/HDG/SS304/SS316
CC-7/8 7/8” - 0.87 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1” - 1.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-3/4-P - 3/4” 1.05 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/8 1-1/8” - 1.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/4 1-1/4” - 1.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-1-P - 1” 1.31 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 3/8 1-3/8” - 1.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/2 1-1/2” - 1.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 5/8 1-5/8” - 1.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 1/4-P - 1-1/4” 1.66 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 3/4 1-3/4” - 1.75 GOLD ZINC/EG/HDG/SS304/SS316
CC-1 7/8 1-7/8” 1-1/2” 1.90 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 2” - 2.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/8 2-1/8” - 2.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/4 2-1/4” - 2.25 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 3/8 2-3/8” 2” 2.37 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 1/2 2-1/2” - 2.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 5/8 2-5/8” - 2.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-2 7/8 2-7/8” 2-1/2” 2.87 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 3” - 3.00 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 1/8 3-1/8” - 3.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 1/2 3-1/2” 3” 3.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-3 5/8 3-5/8” - 3.62 GOLD ZINC/EG/HDG/SS304/SS316
CC-4 1/8 4-1/8” - 4.12 GOLD ZINC/EG/HDG/SS304/SS316
CC-4 1/2 4-1/2” 4” 4.50 GOLD ZINC/EG/HDG/SS304/SS316
CC-6 6” - 6.00 GOLD ZINC/EG/HDG/SS304/SS316



Product Show:

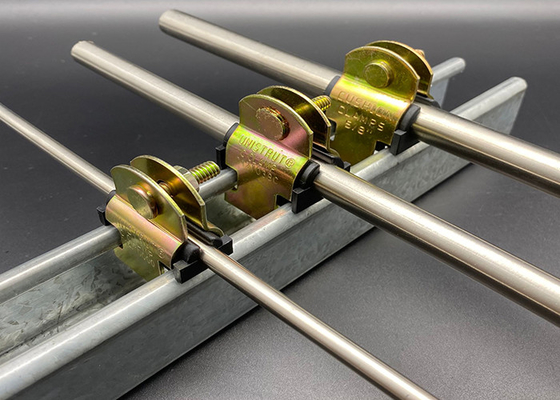

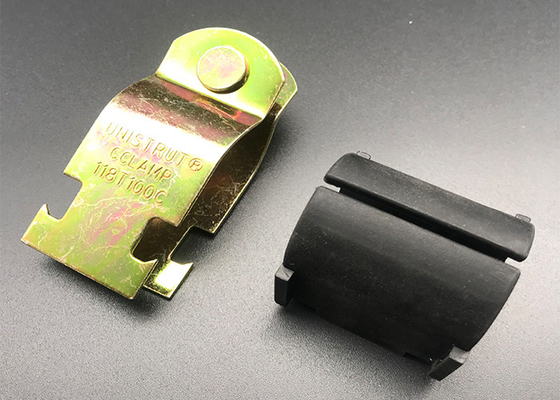

Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps 0  Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps 1

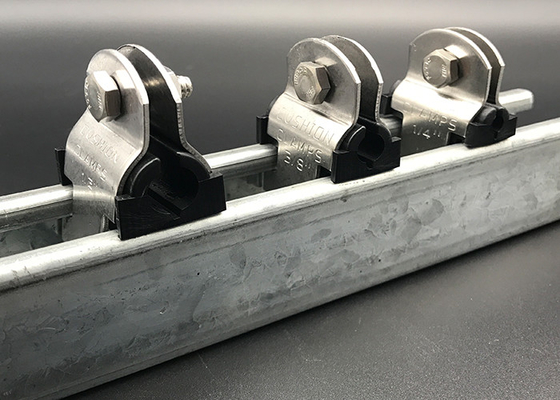

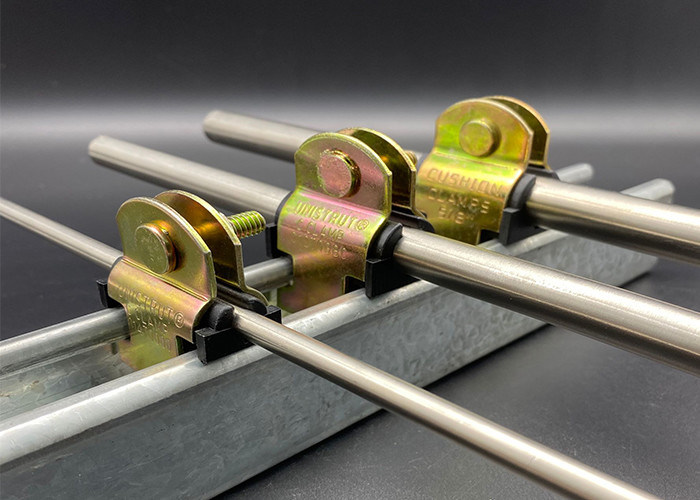

Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps 2  Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps 3



Package:

Yeallow Zinc 3/4'' 1-5/8'' Customized Strut Channel Channel Cushion Clamps 4
