Heavy Duty Pipe Hangers Clamps Adjustable Clevis Hanger

Heavy Duty Pipe Hangers Clamps Adjustable Clevis Hanger

Products: Clevis Hanger

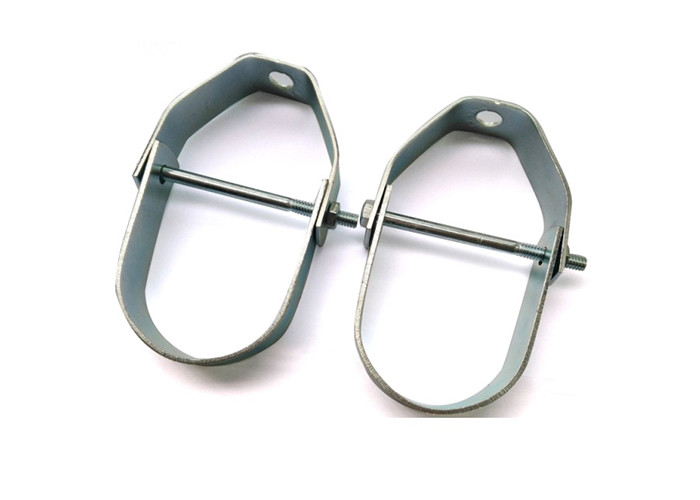

A Clevis hanger is a pipe accessory that loops around a pipe in order to support it. Loop hangers are similar to clevis hangers, split ring hangers, and clamp hangers, which are all examples of pipe hangers, but there are qualities that help to set loop hangers apart from the rest.

The design of loop hanger is simple but effective, looping around a pipe and connecting to a beam or ceiling for support. Loop hangers have keyed insert nuts to guarantee the loop hanger and insert nuts stay together. This type of pipe support is highly recommended for the suspension of non-insulated, stationary pipe lines.

Features:

Size range: 1/2 inches thru 24 inches
Material: Carbon steel
Finish: Black or galvanized: furnished galvanized unless otherwise specified.
Max. temp: 650°F.
Feature: Designed with the yoke on outside of lower U-Strap so the yoke cannot slide toward the center of the bolt, thus bending of the bolt is minimized.

Complies with Manufactures' Standardization Society (MSS) SP-58 & SP-69 (Type 1). Complies with Federal Specifications A A-1192A (Type 1). Complies with Underwriters' Laboratories (UL) & (cUL) (062311- EX15800),

Applications:

For the suspension of non-insulated, stationary pipe lines.
