Product Details:
|
| Material: | Carbon Steel/ss304/ss316/Copper/Aluminum | Surface Treatment: | Zinc Plated /Galvanized/HDG |
|---|---|---|---|
| Usage: | Pipe Clamp | Thickness: | 1.5-3.0MM |
| Service: | OEM ODM | Sample: | Available |
| Certification: | ISO9001-2015 | Package: | Carton Box |
Pipe Cushion Clamps Galvanized Steel Rubber Lined EPDM Pipe Clamps
Products: EPDM pipe clamp
The EPDM rubber clamps M8+M10 has a connecting nut with a special resistance due his cross welding. The two multifunction screw with hexagonal combination head (slot and crosshead) are impossible to loose.
The clamp incorporates double reinforcement ribs and includes ageing-resistant silicon rubber lining suitable for high temperature. Due to its temperature resistance from -50°C to +110°C the clamp RI is suitable for mounting hot water and heating pipes.
Certified with the RoHS label, does not contain hazardous substances.
Due to the M8 and M10 connecting thread the clamp L can be screwed easily onto threaded rods or metric screws with M8 respectively M10 thread.
More threaded part in the closing profile to guarantee a better grip and wider profile from diameter Ø75 mm. Made of high quality steel.
Features:
Unique Fast Release Structure.
Suitable for Both Indoor and Outdoor Applications.
Material: Galvanized Steel/EPDM Rubber
Anti-Corrosion, Heat Resistance.
Specification:
| Part No. | Pipe Size | ØD(mm) | Nut Size | Finish |
| KKPC012 | 1/4” | 12-16 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC015 | 3/8” | 15-19 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC021 | 1/2” | 20-25 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC026 | 3/4” | 26-30 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC032 | 1” | 32-36 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC040 | 1-1/4” | 38-43 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC044 | 1-1/2” | 47-51 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC050 | 50-56 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC057 | 2” | 60-64 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC063 | 63-67 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC070 | 70-73 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC074 | 2-1/2” | 75-80 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC083 | 3” | 87-92 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC101 | 101-106 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC108 | 4” | 107-112 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC125 | 125 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC131 | 131-135 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC136 | 136-139 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC140 | 5” | 125-130 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC159 | 159-163 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC165 | 6” | 159-166 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC193 | 193-200 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC210 | 210-212 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC216 | 8” | 200-212 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC225 | 225 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC250 | 250 | M8+M10 | EG/HDG/SS304/SS316 | |
| KKPC274 | 10” | 248-252 | M8+M10 | EG/HDG/SS304/SS316 |
| KKPC315 | 315 | M8+M10 | EG/HDG/SS304/SS316 |

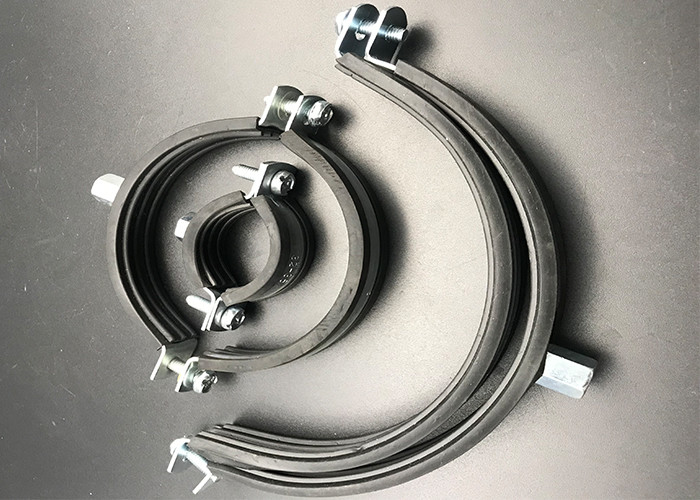

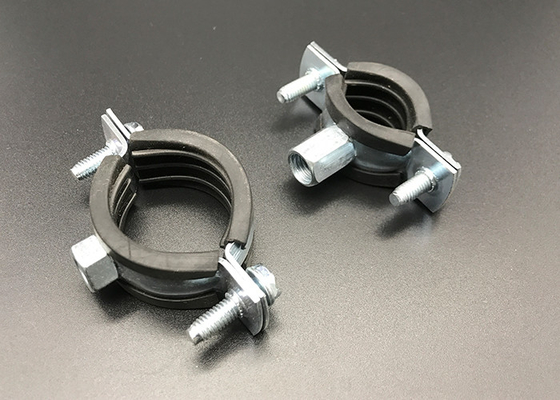

Product Show:
![]()
Package:
![]()
Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and HVAC systems solutions provider,manufacturer .
Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.
KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.
KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.
KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.
KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.
![]()
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
