Product Details:
|
| Material: | Carbon Steel/ss304/ss316 | HDG Standard: | EN1461 |
|---|---|---|---|
| Pre Galvanized Standard: | EN10142 | Service: | OEM ODM |
| Color: | Silver | Certification: | ISO9001-2015 |
| Package: | Carton Box | Sample: | Available |

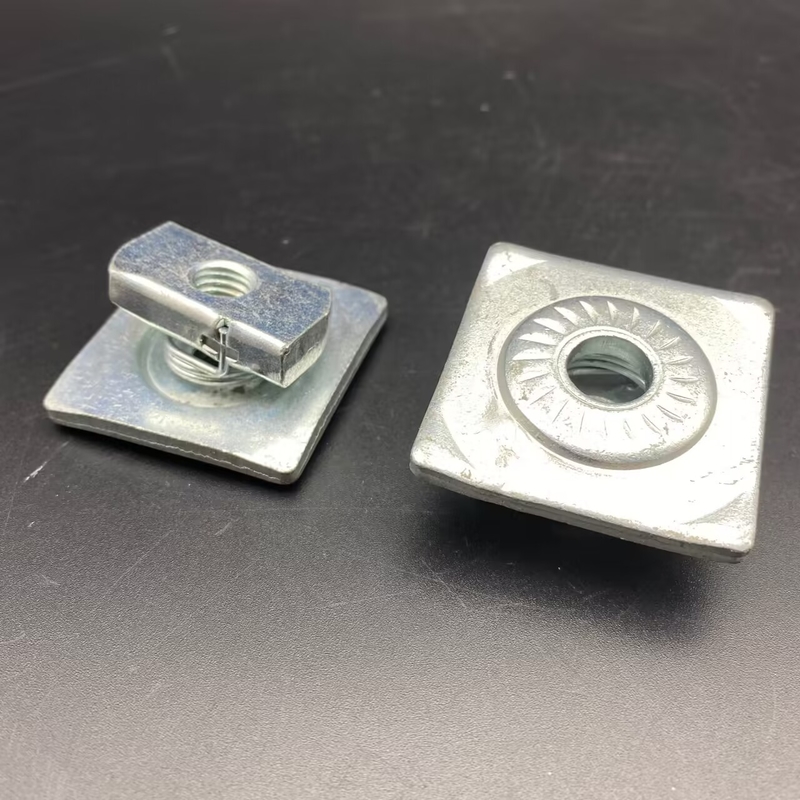

HDG PG Combo Channel Nut with washers
Products:Spring nut with washer
Features: Koka Strut Channel Nuts are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka strut channel.
Helps reduce overall installation time
Sizes available in 1/4”-20, 3/8”-16, 1/2”-13
Combination design reduces the number of parts
Allows for easy adjustment when installed in channel
Provides quick attachment for threaded rod
Able to install using just one hand
Available in 1/4", 3/8" or 1/2" rod sizes, the Combination Channel Nut Square Washer helps eliminate excess on-the-job costs by reducing both installation time and materials. The channel nut has an integrated square washer so that two parts are now one easy to manage product. It installs in seconds - simply place the combo-nut into the open surface of any standard strut channel and rotate the square washer to lock the nut in place. The combo-nut washer is perfect for making strut trapeze installations fast and easy, and when combined with threaded rod and a hex nut it provides a solid, secure connection
Applications:Strut Channel
Specification:
1. Material: carbon steel, SS304,SS316
2. Surface treatment: ,Hot dip galvanzied, Electro Galvanzied, SS304,SS316
3. Standard Size: M6, M8,M10,M12, M14,M16,M18
Product Show:
