Product Details:
|
| Size: | M6-M124, 1/4"-3" | MOQ: | 1000pcs |
|---|---|---|---|
| Material: | Carbon Steel, Stainless Steel, Q235, Q345 | Standard: | DIN975, DIN976,GB/T897-1988,DIN939, IFI-136 2002 |
| Service: | ODM/OEM | Sample: | Available |
| Color: | Customized | Certification: | ISO9001-2015 |
Hot Dip Galvanized m8 m10 m12 Threaded Rod
Product:
Threaded Rod
Feature:stainless steel threaded rod is basically a stainless steel rod with threads. There are different types of threads such as one sided, both sided, coarse and fine threaded types. The SS 304 Threaded Rod is the most used because of the high cost effectiveness and long life with mechanical strength.
Specification:
Size: M6- M124
Material: Carbon steel 3 Grade:4.8, 5.8, 6.8, 4
Standards: DIN 975, ISO, DIN 975, ANSI, JIS, GB, BS, etc
Material: Low carbon steel, mild carbon steel
Standards Grade: 4.8, 5.8, 6.8, 8.8, 10.9 B7
Diameter: M4-M52, 1/4" to 2"
Length:1 meter to 3 meters (routine), according to the customers' requests
Surface Treatment: Plain, white zinc plated, blue-white zinc plated, yellow zinc plated, hot dipped galvanized
| Part No. | Thread Size | Length(M) | Weight(M/Kgs) | Finish |
| TR1006 | 1/4”-20 |
1.0/2.0/3.0 (All Length Available) |
0.18125 | EG/HDG/SS304/SS316 |
| TR1006-M6 | M6 | 0.172 | EG/HDG/SS304/SS316 | |
| TR1007 | 5/16”-18 | 0.29461 | EG/HDG/SS304/SS316 | |
| TR1007-M8 | M8 | 0.312 | EG/HDG/SS304/SS316 | |
| TR1008 | 3/8”-16 | 0.42505 | EG/HDG/SS304/SS316 | |
| TR1008-M10 | M10 | 0.492 | EG/HDG/SS304/SS316 | |
| TR1010 | 1/2”-13 | 0.78089 | EG/HDG/SS304/SS316 | |
| TR1010-M12 | M12 | 0.714 | EG/HDG/SS304/SS316 |

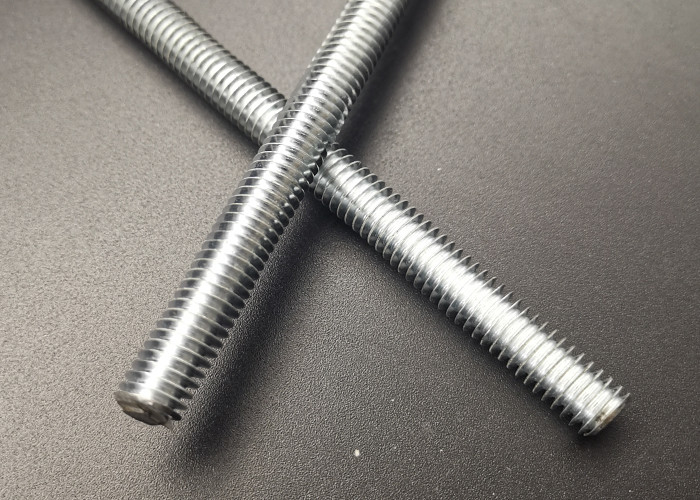

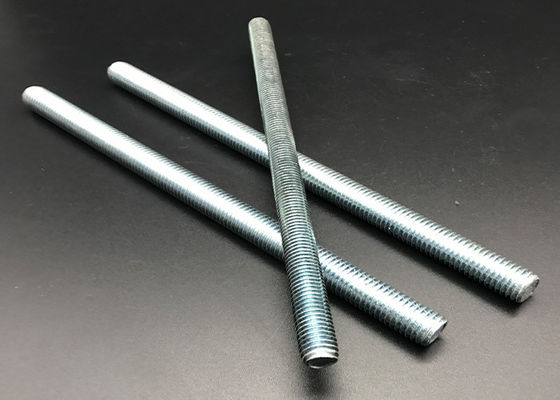

Product show:
Package:
