Product Details:
|
Material: | Steel/Q235B | Service: | OEM ODM |
---|---|---|---|
Maximum Load-bearing Capacity: | 198Kg | Length: | 2400mm,3000mm |
Type: | Wire Mesh | Certification: | ISO9001-2015 |
Sample: | Available | Package: | Carton Box+Pallet |

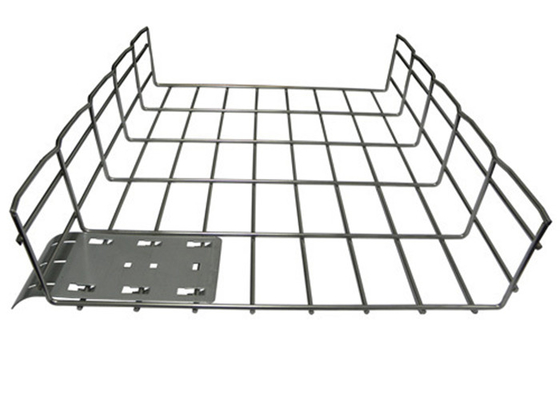

Electrical Galvanized Custom Size Grounding clamp for Wire Mesh Cable Tray Basket
Products:Wire Mesh Cable Tray
Cable trays and baskets provide a safe open solution for routing cables and wires. Its wire-frame composition allows air to circulate for proper cable ventilation to provide a track that allows cables and wires to be routed around a building in an easily maintainable
Featrue:
Wire mesh cable tray supplies a point-to-point pathway for cables. Made of high quality steel wire and welded into 2" × 4" rectangular grid pattern. the grid is formed into U shaped channels, which supports and carry cables. The hole pattern design make it possible for the cables to pass through and go up and down.
Compared with fiberglass cable trays, the wire mesh cable tray has higher tensile strength and mechanical strength. The material of wire mesh cable trays are various, including carbon steel with various surface furnish and stainless steel. Different surface finish can suit different applications.
Applications:Cable Support
Specification :
Material: carbon steel, SS 304, SS 316L.
Surface finish:
PG: pre-galvanized
EZ: electric galvanized
HDG: hot dipped galvanized
PC: powder coated
Part No. |
Width (mm) |
Height (mm) |
Steel ¢D | Length(mm) | Finish |
Wire Mesh Cable Tray | |||||
WM-50*25 | 50 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS316 |
WM-100*25 | 100 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS317 |
WM-150*25 | 150 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS318 |
WM-200*25 | 200 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS319 |
WM-300*25 | 300 | 25 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS320 |
WM-100*35 | 100 | 35 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS321 |
WM-150*35 | 150 | 35 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS322 |
WM-200*35 | 200 | 35 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS323 |
WM-300*35 | 300 | 35 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS324 |
WM-54*54 | 54 | 54 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS325 |
WM-100*54 | 100 | 54 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS326 |
WM-150*54 | 150 | 54 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS327 |
WM-200*54 | 200 | 54 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS328 |
WM-300*54 | 300 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS329 |
WM-400*54 | 400 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS330 |
WM-450*54 | 450 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS331 |
WM-500*54 | 500 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS332 |
WM-600*54 | 600 | 54 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS333 |
WM-700*54 | 700 | 54 | ¢6 | EG/HDG/Powder Coating/SS304/SS334 | |
WM-750*54 | 750 | 54 | ¢6 | 1000 | EG/HDG/Powder Coating/SS304/SS335 |
WM-800*54 | 800 | 54 | ¢6 | 1000 | EG/HDG/Powder Coating/SS304/SS336 |
WM-100*100 | 100 | 100 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS337 |
WM-150*100 | 150 | 100 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS338 |
WM-200*100 | 200 | 100 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS339 |
WM-300*100 | 300 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS340 |
WM-400*100 | 400 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS341 |
WM-450*100 | 450 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS342 |
WM-500*100 | 500 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS343 |
WM-600*100 | 600 | 100 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS344 |
WM-700*100 | 700 | 100 | ¢6 | EG/HDG/Powder Coating/SS304/SS345 | |
WM-750*100 | 750 | 100 | ¢6 | 1000 | EG/HDG/Powder Coating/SS304/SS346 |
WM-800*100 | 800 | 100 | ¢6 | EG/HDG/Powder Coating/SS304/SS347 | |
WM-150*150 | 150 | 150 | ¢4 | 1000 | EG/HDG/Powder Coating/SS304/SS348 |
WM-200*150 | 200 | 150 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS349 |
WM-300*150 | 300 | 150 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS350 |
WM-400*150 | 400 | 150 | ¢5 | 1000 | EG/HDG/Powder Coating/SS304/SS351 |
Product Show:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
