Product Details:
|
| Size: | M6-M124, 1/4"-3" | MOQ: | 1000pcs |
|---|---|---|---|
| Material: | Carbon Steel, Stainless Steel, Q235, Q345 | Standard: | DIN975, DIN976,GB/T897-1988,DIN939, IFI-136 2002 |
| Service: | ODM/OEM | Sample: | Available |
| Color: | Customized | Certification: | ISO9001-2015 |

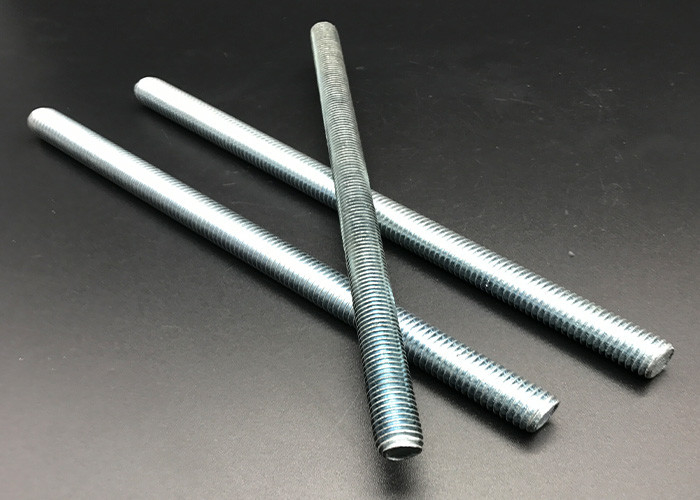

Factory 3m 6m Full Thread Threaded Rods
Product:Threaded Rod
A threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod. They are designed to be used in tension. Threaded rod in bar stock form is often called all-thread.
Feature:stainless steel threaded rod is basically a stainless steel rod with threads. There are different types of threads such as one sided, both sided, coarse and fine threaded types. The SS 304 Threaded Rod is the most used because of the high cost effectiveness and long life with mechanical strength.
Specification:
Surface Treatment: Plain, white zinc plated, blue-white zinc plated, yellow zinc plated, hot dipped galvanized
| Part No. | Thread Size | Length(M) | Weight(M/Kgs) | Finish |
| TR1006 | 1/4”-20 |
1.0/2.0/3.0 (All Length Available) |
0.18125 | EG/HDG/SS304/SS316 |
| TR1006-M6 | M6 | 0.172 | EG/HDG/SS304/SS316 | |
| TR1007 | 5/16”-18 | 0.29461 | EG/HDG/SS304/SS316 | |
| TR1007-M8 | M8 | 0.312 | EG/HDG/SS304/SS316 | |
| TR1008 | 3/8”-16 | 0.42505 | EG/HDG/SS304/SS316 | |
| TR1008-M10 | M10 | 0.492 | EG/HDG/SS304/SS316 | |
| TR1010 | 1/2”-13 | 0.78089 | EG/HDG/SS304/SS316 | |
| TR1010-M12 | M12 | 0.714 | EG/HDG/SS304/SS316 |
Product show:
Package:
