Product Details:
|
| Material: | Plastic | Color: | Black/white |
|---|---|---|---|
| Usage: | Pipe Clamp | Thickness: | 1.5-3.0MM |
| Service: | OEM ODM | Sample: | Available |
| Certification: | ISO9001-2015 | Package: | Carton Box |

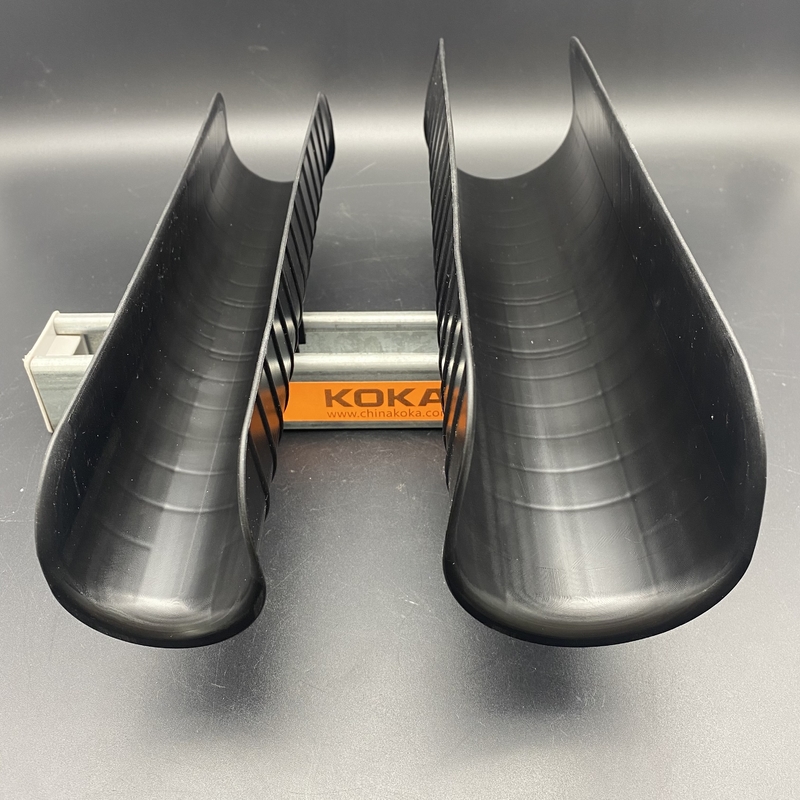

Custom Size Plastic Snap A Saddle
Products: Snap A Saddle
Functions: Fits any standard 1 5/8" wide strut channel
Features: Pipe Saddles
- Fits perfectly on Koka strut channel of any depth
- Plastic legs snap into channel while stability tabs overlap the channel exterior for a secure installation
- External stability tabs with grooved slot feature for optional self-tapping screw
- Single piece product—no assembly or tools required
- Enhanced safety lip prevents insulation crushing and tearing from pipe movement
- Available in black and white to match insulation
- Excellent finished appearance
Easy installation onto channel, simply set,fastest installation in the industry
Tool-Free Installation
insulation tube/pipe run into saddle.
Applications: Refrigeration,Air conditioning and Plumbing
Installation: Clips directly on standard 41*41 strut channel
Certification:
|
Part No.Black |
Part No. White | Dimension A. |
| KKSB-214 | KKSW-214 | 2-1/4'' |
| KKSB-314 |
KKSW-314 |
3-1/4'' |
| KKSB-414 | KKSW-414 | 4-1/4'' |
| KKSB-514 | KKSW-514 | 5-1/4'' |
| KKSB-614 | KKSW-614 | 6-1/4'' |
| KKSB-814 | KKSW-814 | 8-1/4'' |
Product Show:
Package:
