Product Details:
|
| Material: | Carbon Steel/ss304/ss316/Copper/Aluminum | Surface Treatment: | Zinc Plated /Galvanized/HDG |
|---|---|---|---|
| Usage: | Pipe Clamp | Thickness: | 1.5-3.0MM |
| Service: | OEM ODM | Sample: | Available |
| Certification: | ISO9001-2015 | Package: | Carton Box |

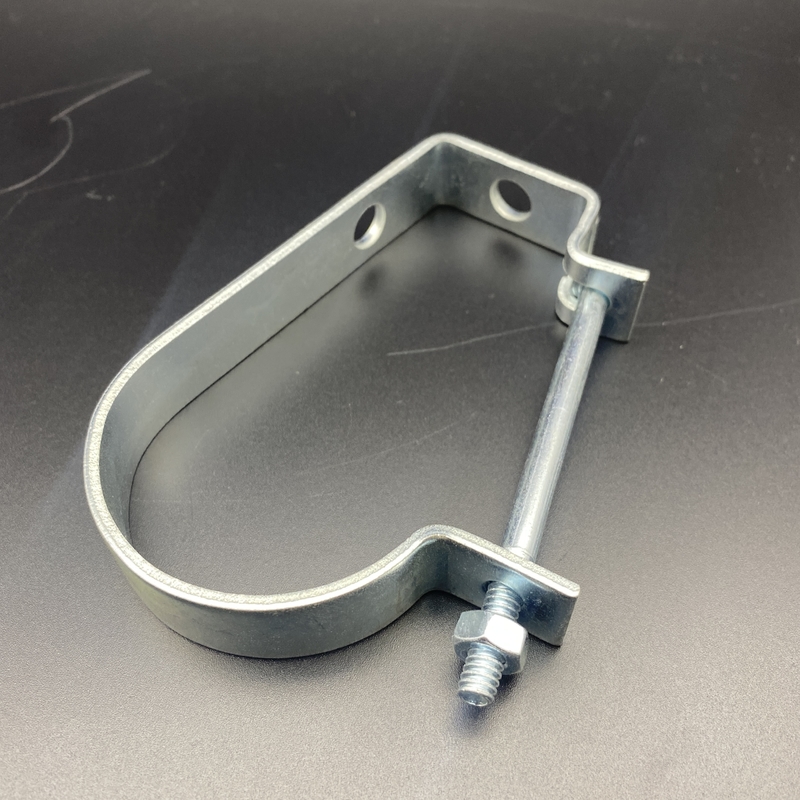

Galvanized Steel Side-load Threaded Rod Mount Loop Hanger
Products: J Type Loop Hanger
A J-type loop hanger is a type of pipe hanger or cable support that features a J-shaped hook or loop. It's designed to suspend or support pipes, conduits, or cables from overhead structures like ceilings, walls, or beams. The "J" shape provides a secure cradle for the supported item, and it's often used for light to medium-duty applications where easy installation and adjustment are desired.
Features:
Flared edges help to protect plastic pipe
An integral fold-over washer (pipe sizes 1/2" to 8")
Suitable for Both Indoor and Outdoor Applications.
Pipe Size Range: 2/1''to8''
Material: Galvanized Steel
Applications:
J-type loop hangers are used in various industries for clamping pipes or lifting the pipes.
Certification:
Standard: DIN,ANSI,JIS,ASTM, Non-Standard
Material: stainless steel, carbon steel, copper
Finish: electric galvanized, hot-dip galvanized, powder coated
Size: 1/2" - 8"
Quality control: rigid quality inspection throughout the production
Package: standard or customized
Lead time: 15-30 days, depend on the order quantity
| Part No. | Pipe Size(Inch) | Nut Size | ØD(mm) | Finish |
| KK-LH015 | 1/2” | 3/8 | 21.3 | EG/HDG/SS304/SS316 |
| KK-LH020 | 3/4” | 3/8 | 27.2 | EG/HDG/SS304/SS316 |
| KK-LH025 | 1” | 3/8 | 34.0 | EG/HDG/SS304/SS316 |
| KK-LH032 | 1-1/4” | 3/8 | 42.7 | EG/HDG/SS304/SS316 |
| KK-LH040 | 1-1/2” | 3/8 | 48.6 | EG/HDG/SS304/SS316 |
| KK-LH050 | 2” | 3/8 | 60.5 | EG/HDG/SS304/SS316 |
| KK-LH065 | 2-1/2” | 3/8 | 73.0 | EG/HDG/SS304/SS316 |
| KK-LH080 | 3” | 3/8 | 89.1 | EG/HDG/SS304/SS316 |
| KK-LH090 | 3-1/2” | 3/8 | 101.6 | EG/HDG/SS304/SS316 |
| KK-LH100 | 4” | 3/8 | 114.3 | EG/HDG/SS304/SS316 |
| KK-LH125 | 5” | 1/2 | 141.3 | EG/HDG/SS304/SS316 |
| KK-LH150 | 6” | 1/2 | 168.3 | EG/HDG/SS304/SS316 |
| KK-LH200 | 8” | 1/2 | 219.1 | EG/HDG/SS304/SS316 |
Product Show:
Package:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
